Cheap industry irrigation farm water delivery pvc layflat pipe
APPLICATIONS:
1) Environmental protection pvc hose 1"-8",the pressure range w.p 3bar-6bar b.p 9bar-25bar
2) forestry sprinkler irrigation 1"-8",the pressure range w.p 3bar-6bar b.p 9bar-25bar
3) construction project,industrial and mining enterprise
CHARACTERISTICS:
1) best material: choosing high strength polyester filament and high quality pvc
2) one-step extrusion:parted the threads regularly and moldedby plastic coated once
3) acid&alkali resistant,aging resistant,stretching resistant,anti-wrinkle,non-toxic
Specification of Layflat Hose
| inside diameter | wall thickness mm | ||||||||
| mm | inch | 0.2 MPa | 0.4 MPa | 0.6 MPa | 0.8 MPa | 1.0MPa | 1.5MPa | 2.0 MPa | 2.5MPa |
| 25.4 | 1 | 1.4 | 1.6 | 1.8 | 2 | 2.2 | 2.4 | 2.6 | 2.8 |
| 38.1 | 1 1/2 | 1.4 | 1.6 | 1.8 | 2 | 2.2 | 2.4 | 2.6 | 2.8 |
| 50.8 | 2 | 1.4 | 1.6 | 1.8 | 2 | 2.2 | 2.4 | 2.6 | 3 |
| 63.5 | 2 1/2 | 1.4 | 1.7 | 2 | 2.2 | 2.4 | 2.6 | 2.8 | 3.2 |
| 76.2 | 3 | 1.5 | 1.8 | 2.1 | 2.3 | 2.5 | 2.8 | 3 | 3.2 |
| 101.6 | 4 | 1.5 | 1.8 | 2.1 | 2.3 | 2.5 | 2.8 | 3 | 3.2 |
| 127 | 5 | 1.5 | 1.8 | 2.1 | 2.3 | 2.5 | 2.8 | 3 | |
| 152.4 | 6 | 1.6 | 2 | 2.2 | 2.5 | 2.8 | 3 | 3.2 | |
| 203.2 | 8 | 1.8 | 2.3 | 2.5 | 2.8 | 3 | 3.2 | ||
| 254 | 10 | 2 | 2.3 | 2.8 | 3 | 3.2 | |||
| 304.8 | 12 | 2.4 | 2.8 | 3 | 3.2 | 3.4 | |||
| inside diameter | weight kg | ||||||||
| mm | inch | 0.2 MPa | 0.4 MPa | 0.6 MPa | 0.8 MPa | 1.0 MPa | 1.5MPa | 2.0MPa | 2.5 MPa |
| 25.4 | 1 | 0.154 | 0.176 | 0.198 | 0.220 | 0.242 | 0.264 | 0.286 | 0.308 |
| 38.1 | 1 1/2 | 0.231 | 0.264 | 0.297 | 0.330 | 0.363 | 0.396 | 0.429 | 0.462 |
| 50.8 | 2 | 0.308 | 0.352 | 0.396 | 0.440 | 0.484 | 0.528 | 0.572 | 0.616 |
| 63.5 | 2 1/2 | 0.385 | 0.467 | 0.549 | 0.604 | 0.659 | 0.714 | 0.769 | 0.824 |
| 76.2 | 3 | 0.461 | 0.593 | 0.692 | 0.758 | 0.823 | 0.922 | 0.988 | 1.054 |
| 101.6 | 4 | 0.660 | 0.792 | 0.924 | 1.012 | 1.100 | 1.232 | 1.320 | 1.408 |
| 127 | 5 | 0.825 | 0.990 | 1.155 | 1.265 | 1.375 | 1.540 | 1.650 | 1.760 |
| 152.4 | 6 | 1.054 | 1.318 | 1.450 | 1.648 | 1.845 | 1.977 | 2.109 | |
| 203.2 | 8 | 1.500 | 1.917 | 2.083 | 2.330 | 2.500 | 2.670 | ||
| 254 | 10 | 2.000 | 2.600 | 2.800 | 3.000 | 3.200 | |||
| 304.8 | 12 | 2.710 | 3.162 | 3.388 | 3.614 | 3.840 | |||
| inside diameter | volume m^3 | ||||||||
| mm | inch | 0.2 MPa | 0.4 MPa | 0.6 MPa | 0.8 MPa | 1.0 MPa | 1.5MPa | 2.0MPa | 2.5 MPa |
| 25.4 | 1 | 0.000231 | 0.000264 | 0.000297 | 0.000330 | 0.000363 | 0.000396 | 0.000429 | 0.000462 |
| 38.1 | 1 1/2 | 0.000347 | 0.000396 | 0.000446 | 0.000495 | 0.000545 | 0.000595 | 0.000644 | 0.000694 |
| 50.8 | 2 | 0.000462 | 0.000529 | 0.000595 | 0.000661 | 0.000727 | 0.000793 | 0.000859 | 0.000925 |
| 63.5 | 2 1/2 | 0.000578 | 0.000701 | 0.000824 | 0.000907 | 0.000989 | 0.001072 | 0.001155 | 0.001237 |
| 76.2 | 3 | 0.000692 | 0.000890 | 0.001039 | 0.001138 | 0.001236 | 0.001384 | 0.001483 | 0.001583 |
| 101.6 | 4 | 0.000991 | 0.001189 | 0.001387 | 0.001520 | 0.001652 | 0.001850 | 0.001982 | 0.002114 |
| 127 | 5 | 0.001239 | 0.001486 | 0.001734 | 0.001899 | 0.002065 | 0.002312 | 0.002477 | 0.002643 |
| 152.4 | 6 | 0.001583 | 0.001979 | 0.002177 | 0.002474 | 0.002770 | 0.002968 | 0.003167 | |
| 203.2 | 8 | 0.002252 | 0.002878 | 0.003128 | 0.003498 | 0.003754 | 0.004009 | ||
| 254 | 10 | 0.003003 | 0.003904 | 0.004204 | 0.004505 | 0.004805 | |||
| 304.8 | 12 | 0.004069 | 0.004748 | 0.005087 | 0.005426 | 0.005766 | |||

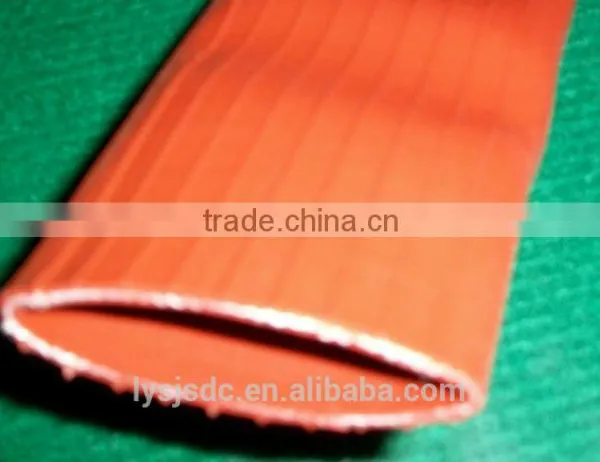

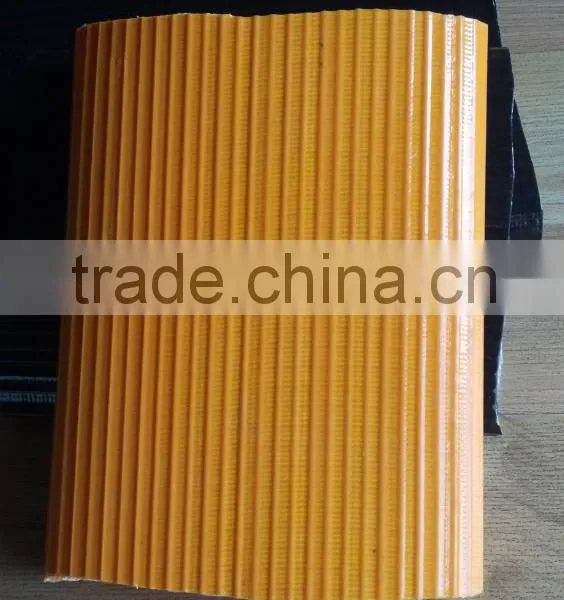

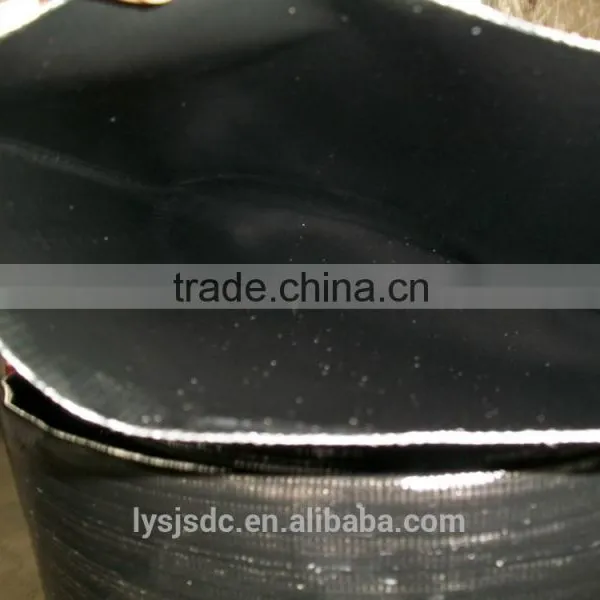

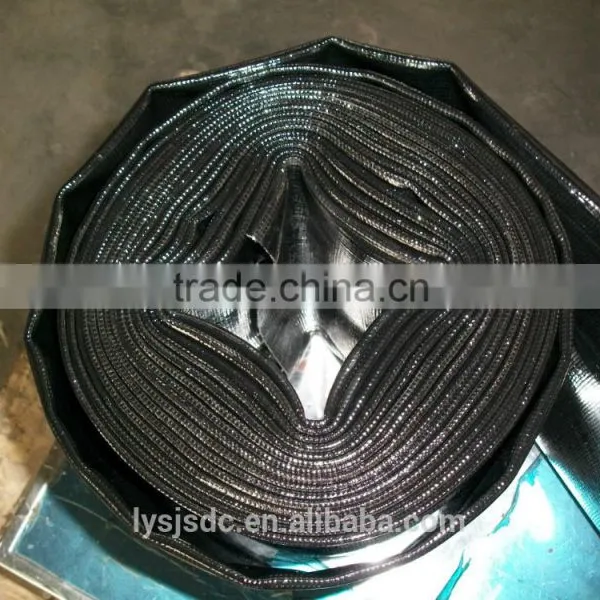

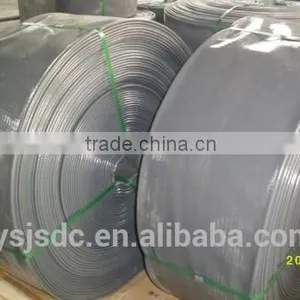

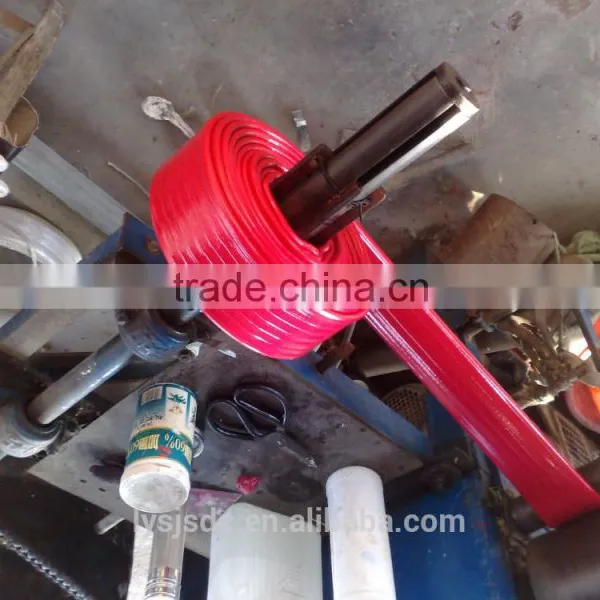

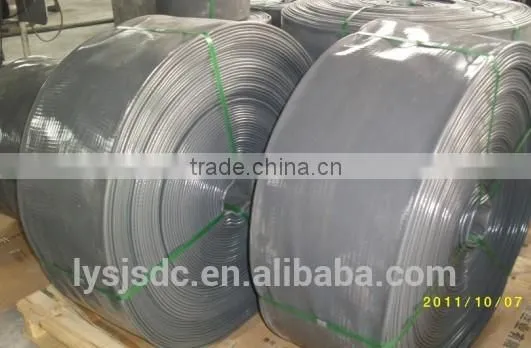

The product of pvc layflat pipe
NOTES FOR USING THE HOSE :
1) suggest that the hose bue used within its recommender tempaerature and pressure range.
2) a hose epands and contracts according to the change of its internal pressure and temperature,cut the hose slingtly longer than it is needed.
3) when pressurizing,slowly open or close any valves to avoid impact pressure and protect the hose from being damaged.
Company Information
Saijun Pipe Industry Co., Ltd. has over 30 years' history, which specializes in production and operation of plastic hose. Our own development and production of high pressure plastic hose has become the only advanced products from 2005 with high performance and quality in China at present.
Compared with the original agricultural products of high pressure plastic hose, the compression performance and scope of application has greatly improved. The inner diameter is 1-16inch.The working pressure can reach to 1.0-5.0Mpa.The maximum voltage can reach to 3.0-15.0Mpa.The products can adapt to special conditions such as oil resistance, abrasion resistance, acid and alkali resistance, high temperature resistance, etc. The products can be used for high pressure sprinking machine, mud(sand)pumps, sewage projects ,oil well washing sand removal, shale gas exploration and long distance high pressure water supply, the emergency drainage of coal and various pipeline repair lining fluid transport equipment.
Our products have our own intellectual property rights, technical strength and enterprise culture. We devote to better effect of products' actual use to satisfy customers. We will continue to research and exploit advanced products whose performance requirements are higher, application ranges are wider, use effects are better. It's our technical dream to make hose of" Galaxy drain, Undersea oil absorb". We sincerely hope to cooperate with the global world to get win-win.
Customers' satisfaction is our pursuit.
Excellent service is our permanent promise.
Advanced equipment is the guarantee of top-class quality.
Scientific management is the base of the enterprise's take-off.
We will build the bridge of friendship with top-class products and honest service, and create our wonderfull future together.
