Pvc Pipe for Agricultural Irrigation Color Polypropylene Hose Tubing

Pvc Pipe for Agricultural Irrigation Color Polypropylene Hose Tubing thumbnail-1
Pvc Pipe for Agricultural Irrigation Color Polypropylene Hose Tubing photo-1
US$ 0.3 - 10 MOQ: 1000 Meters
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
shengding
Model Number:
2bar-48bar
Contact Supplier Request Quote Chat Now
Linyi Saijun Pipe Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shandong, China
Brand Name shengding
Model Number 2bar-48bar
Material PVC
Specification 1''-12''
Length 200m
Thickness 2-6mm
Standard enterprise standard

     pvc pipe for agricultural irrigation color polypropylene hose tubing

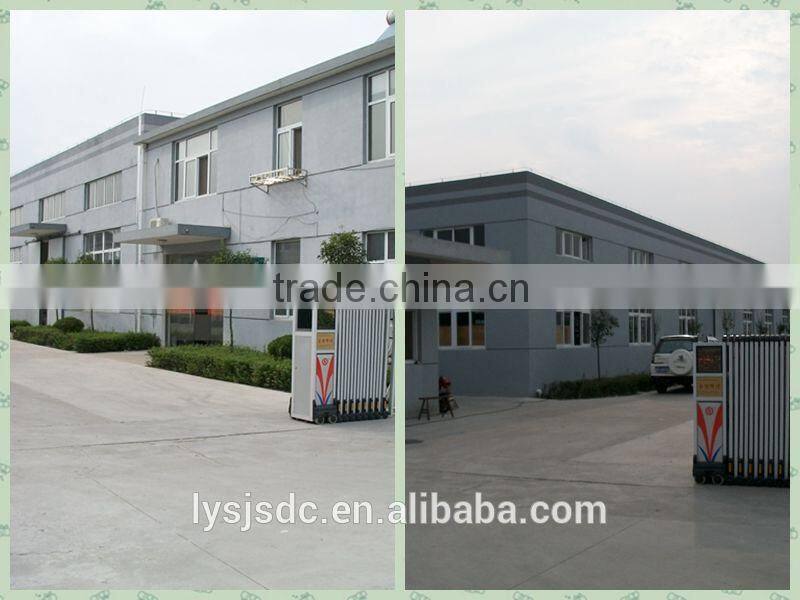

Saijun Pipe Industry Co., Ltd. has over 30 years' history, which specializes in production and operation of plastic hose. Our own development and production of high pressure plastic hose has become the only advanced products from 2005 with high performance and quality in China at present.

Compared with the original agricultural products of high pressure plastic hose, the compression performance and scope of application has greatly improved. The inner diameter is 1-16inch.The working pressure can reach to 1.0-5.0Mpa.The maximum voltage can reach to 3.0-15.0Mpa.The products can adapt to special conditions such as oil resistance, abrasion resistance, acid and alkali resistance, high temperature resistance, etc. The products can be used for high pressure sprinking machine, mud(sand)pumps, sewage projects ,oil well washing sand removal, shale gas exploration and long distance high pressure water supply, the emergency drainage of coal and various pipeline repair lining fluid transport equipment.

Our products have our own intellectual property rights, technical strength and enterprise culture. We devote to better effect of products' actual use to satisfy customers. We will continue to research and exploit advanced products whose performance requirements are higher, application ranges are wider, use effects are better. It's our technical dream to make hose of" Galaxy drain, Undersea oil absorb". We sincerely hope to cooperate with the global world to get win-win.

pvc pipe for agricultural irrigation color polypropylene hose tubing



pvc pipe for agricultural irrigation color polypropylene hose tubing

•Application:

 •Agriculture: irrigation, mobile sprinkler, drip irrigation

 •Mine: emergency drainage, water supply

 •Construction:  temporary water supply

 •Industry:  sewage, aeration

 •Oil well washing to remove sediment

 •Long distance water supply for the exploitation of shale gas

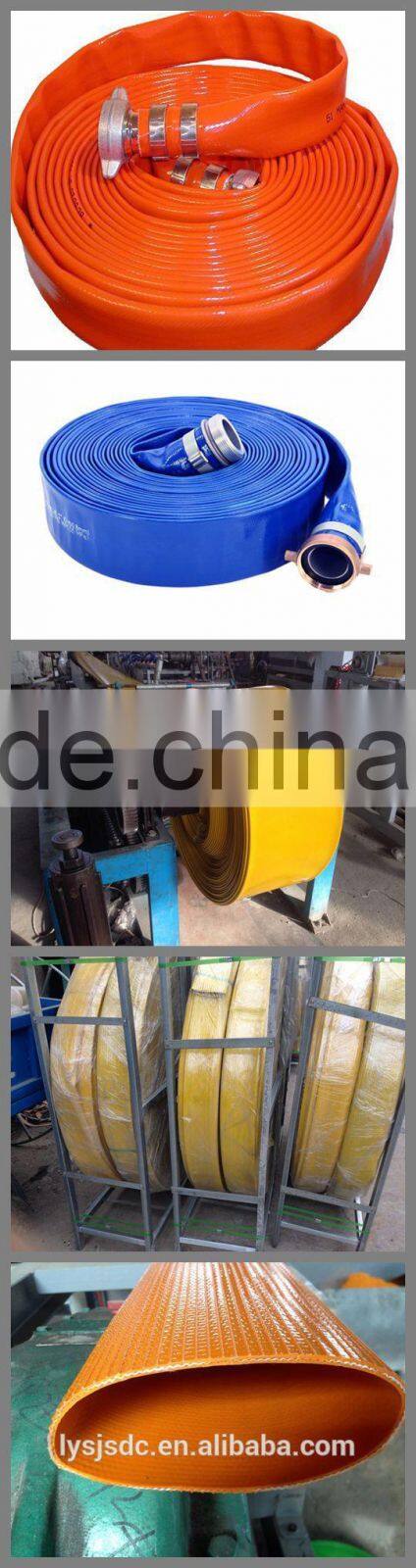

 Lay Flat Hose

 pvc pipe for agricultural irrigation color polypropylene hose tubing

pvc pipe for agricultural irrigation color polypropylene hose tubing





Our layflat hose are produced by high strength industrial polyester yarn and the best quality of PVC/TPU. The one-time forming product is anti high pressure, anti wear, anti corrosion, anti aging, anti freeze. It is also impermeable water, non toxic, light and soft, and long service life!


 Specification about Lay Flat Hose

inside diameter wall thickness    mm
mm inch 0.2 MPa 0.4 MPa 0.6 MPa 0.8 MPa 1.0MPa 1.5MPa 2.0 MPa 2.5MPa
25.4 1 1.4 1.6 1.8 2 2.2 2.4 2.6 2.8
38.1 1 1/2 1.4 1.6 1.8 2 2.2 2.4 2.6 2.8
50.8 2 1.4 1.6 1.8 2 2.2 2.4 2.6 3
63.5 2 1/2 1.4 1.7 2 2.2 2.4 2.6 2.8 3.2
76.2 3 1.5 1.8 2.1 2.3 2.5 2.8 3 3.2
101.6 4 1.5 1.8 2.1 2.3 2.5 2.8 3 3.2
127 5 1.5 1.8 2.1 2.3 2.5 2.8 3
152.4 6 1.6 2 2.2 2.5 2.8 3 3.2
203.2 8 1.8 2.3 2.5 2.8 3 3.2
254 10 2 2.3 2.8 3 3.2
304.8 12 2.4 2.8 3 3.2 3.4
inside diameter weight    kg
mm inch 0.2 MPa 0.4 MPa 0.6 MPa 0.8 MPa 1.0 MPa 1.5MPa 2.0MPa 2.5 MPa
25.4 1 0.154 0.176 0.198 0.220 0.242 0.264 0.286 0.308
38.1 1 1/2 0.231 0.264 0.297 0.330 0.363 0.396 0.429 0.462
50.8 2 0.308 0.352 0.396 0.440 0.484 0.528 0.572 0.616
63.5 2 1/2 0.385 0.467 0.549 0.604 0.659 0.714 0.769 0.824
76.2 3 0.461 0.593 0.692 0.758 0.823 0.922 0.988 1.054
101.6 4 0.660 0.792 0.924 1.012 1.100 1.232 1.320 1.408
127 5 0.825 0.990 1.155 1.265 1.375 1.540 1.650 1.760
152.4 6 1.054 1.318 1.450 1.648 1.845 1.977 2.109
203.2 8 1.500 1.917 2.083 2.330 2.500 2.670
254 10 2.000 2.600 2.800 3.000 3.200
304.8 12 2.710 3.162 3.388 3.614 3.840
inside diameter volume m^3
mm inch 0.2 MPa 0.4 MPa 0.6 MPa 0.8 MPa 1.0 MPa 1.5MPa 2.0MPa 2.5 MPa
25.4 1 0.000231 0.000264 0.000297 0.000330 0.000363 0.000396 0.000429 0.000462
38.1 1 1/2 0.000347 0.000396 0.000446 0.000495 0.000545 0.000595 0.000644 0.000694
50.8 2 0.000462 0.000529 0.000595 0.000661 0.000727 0.000793 0.000859 0.000925
63.5 2 1/2 0.000578 0.000701 0.000824 0.000907 0.000989 0.001072 0.001155 0.001237
76.2 3 0.000692 0.000890 0.001039 0.001138 0.001236 0.001384 0.001483 0.001583
101.6 4 0.000991 0.001189 0.001387 0.001520 0.001652 0.001850 0.001982 0.002114
127 5 0.001239 0.001486 0.001734 0.001899 0.002065 0.002312 0.002477 0.002643
152.4 6 0.001583 0.001979 0.002177 0.002474 0.002770 0.002968 0.003167
203.2 8 0.002252 0.002878 0.003128 0.003498 0.003754 0.004009
254 10 0.003003 0.003904 0.004204 0.004505 0.004805
304.8 12 0.004069 0.004748 0.005087 0.005426 0.005766



•Features of Lay Flat Hose
•Quick installation, mobile use, rolling
•High pressure, abrasion resistance, temperature resistance, anti-aging
•Different colors available

 Production Line

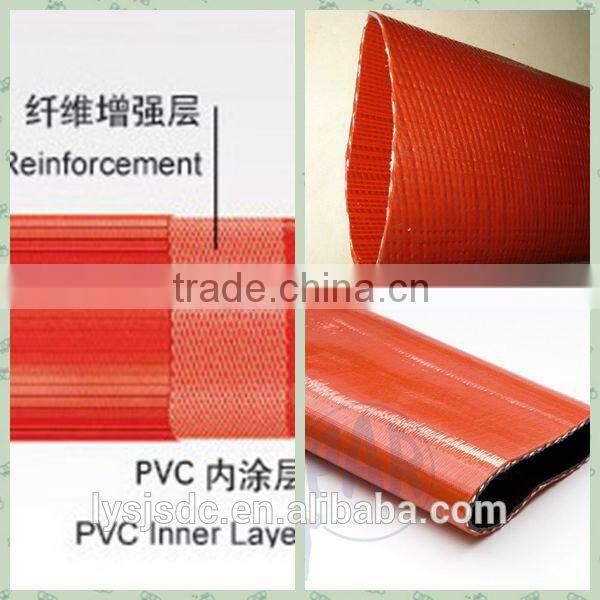

Inner Reinforcement -Industrial Polyester Yarn

It is used by high strength industrial polyester yarn, twisted with shares and woven in circulation.

pvc pipe for agricultural irrigation color polypropylene hose tubing



 pvc pipe for agricultural irrigation color polypropylene hose tubing





pvc pipe for agricultural irrigation color polypropylene hose tubing





pvc pipe for agricultural irrigation color polypropylene hose tubing

Should you need any other information, please feel free to let me know.
