Agricultural Irrigation Water Discharge Lay Flat Hose
Agricultural Irrigation Water Discharge Lay Flat Hose
farm irrigation hoses
PVC Layflat Hose
This hose that resists kinking and twisting is designed as a standard duty hose for water discharge in industrial and construction applications, and is economical and rolls up flat for easy storage.
High pressure PVC-Nitrile rubber layflat Hose
farm irrigation hoses
Specification of Layflat Hose
| inside diameter | wall thickness mm | ||||||||
| mm | inch | 0.2 MPa | 0.4 MPa | 0.6 MPa | 0.8 MPa | 1.0MPa | 1.5MPa | 2.0 MPa | 2.5MPa |
| 25.4 | 1 | 1.4 | 1.6 | 1.8 | 2 | 2.2 | 2.4 | 2.6 | 2.8 |
| 38.1 | 1 1/2 | 1.4 | 1.6 | 1.8 | 2 | 2.2 | 2.4 | 2.6 | 2.8 |
| 50.8 | 2 | 1.4 | 1.6 | 1.8 | 2 | 2.2 | 2.4 | 2.6 | 3 |
| 63.5 | 2 1/2 | 1.4 | 1.7 | 2 | 2.2 | 2.4 | 2.6 | 2.8 | 3.2 |
| 76.2 | 3 | 1.5 | 1.8 | 2.1 | 2.3 | 2.5 | 2.8 | 3 | 3.2 |
| 101.6 | 4 | 1.5 | 1.8 | 2.1 | 2.3 | 2.5 | 2.8 | 3 | 3.2 |
| 127 | 5 | 1.5 | 1.8 | 2.1 | 2.3 | 2.5 | 2.8 | 3 | |
| 152.4 | 6 | 1.6 | 2 | 2.2 | 2.5 | 2.8 | 3 | 3.2 | |
| 203.2 | 8 | 1.8 | 2.3 | 2.5 | 2.8 | 3 | 3.2 | ||
| 254 | 10 | 2 | 2.3 | 2.8 | 3 | 3.2 | |||
| 304.8 | 12 | 2.4 | 2.8 | 3 | 3.2 | 3.4 | |||
TPU Layflat Hose
TPU (Thermoplastic polyurethanes) is increasingly popular. It is proud of its superior performance and the concept of environmental protection. At present, TPU can become better substitute of PVC, with excellent abrasion resistance, oil resistance, temperature resistance.
Applications

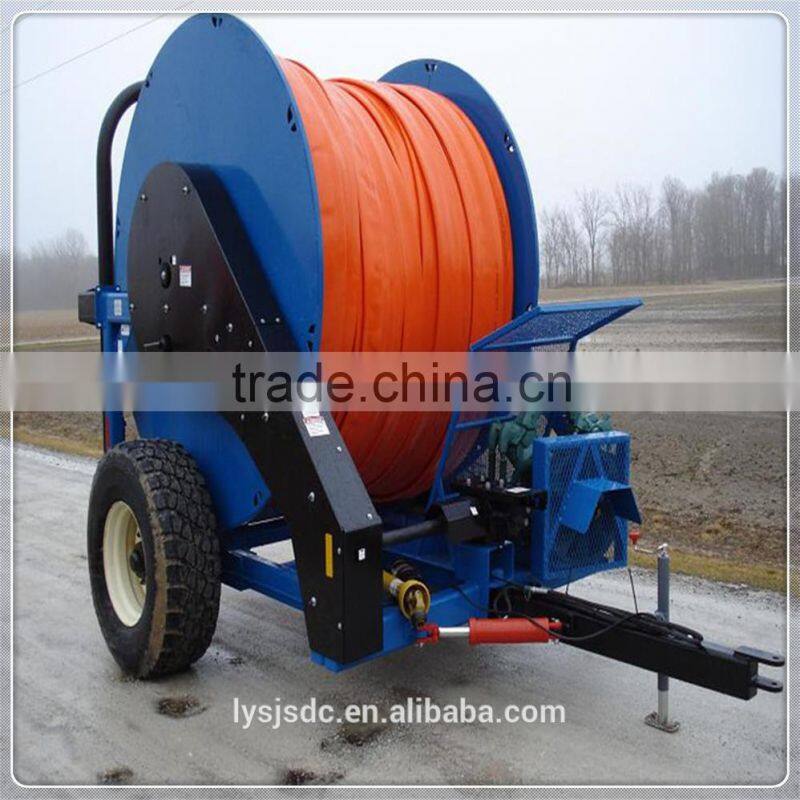

•Agriculture: irrigation, mobile sprinkler, drip irrigation
•Mine: emergency drainage, water supply
•Construction: temporary water supply
•Industry: sewage, aeration
•Oil well washing to remove sediment
•Long distance water supply for the exploitation of shale gas


NOTES FOR USING THE HOSE :
1) suggest that the hose bue used within its recommender tempaerature and pressure range.
2) a hose epands and contracts according to the change of its internal pressure and temperature,cut the hose slingtly longer than it is needed.
3) when pressurizing,slowly open or close any valves to avoid impact pressure and protect the hose from being damaged.

Hose Specification
We can produce lay flat hose acording to your request on Inner Diameter, working pressure and length per roll.
Before send you right quotation, pls kindly confirm with me.
About sample before order
We can supply 20-50cm free sample for your test or little longer, you just need to pay express freight or we can do freight collect.
MOQ
Usually our MOQ is 1000m, but for first cooperation we also accept little order, so any order is welcomed.
Shipping and delivery
We can send to you by sea/air/express according to you, ususally deliver within 7 working days after receive deposit.
Customers' satisfaction is our pursuit.
Excellent service is our permanent promise.
Advanced equipment is the guarantee of top-class quality.
Scientific management is the base of the enterprise's take-off.
We will build the bridge of friendship with top-class products and honest service, and create our wonderfull future together.
