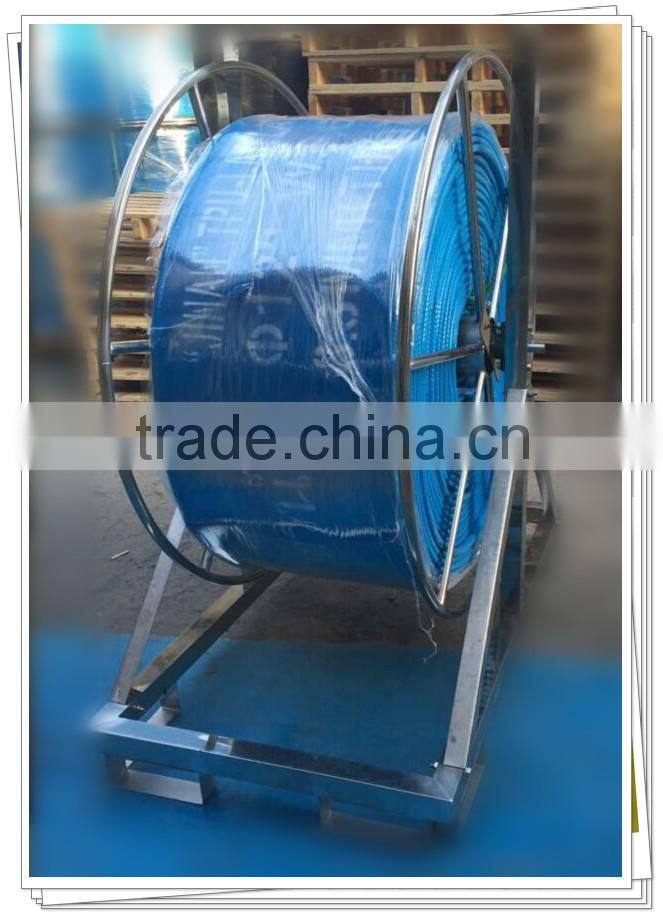

Agricultural Irrigation tpu layflat hose
- 50000 Meter / Meters per Month
- China main port
- T/T Credit Card PayPal
Product Details
| Place of Origin: | Shandong, China | Brand Name: | sanjiang | Model Number: | 1-12inch |
| Material: | Other, PVC/ PVC-nitrile rubber/TPU | Specification: | 1-12inch | Length: | According to your request, Max 200m per roll |

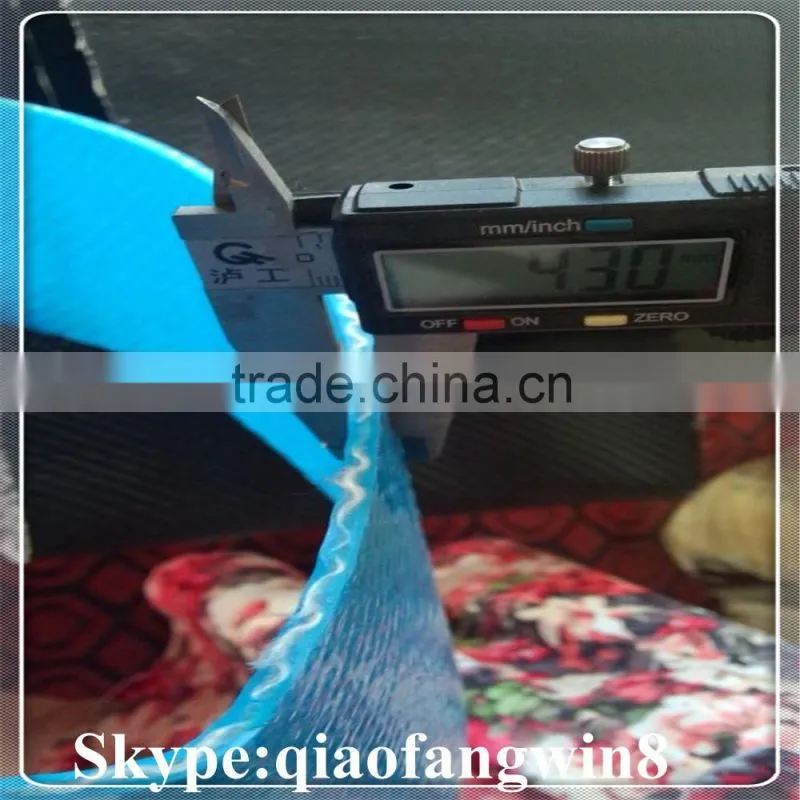

| Thickness: | 1.2-3.5mm, 1.2mm -3.5mm | Standard: | ISO |
Product Description

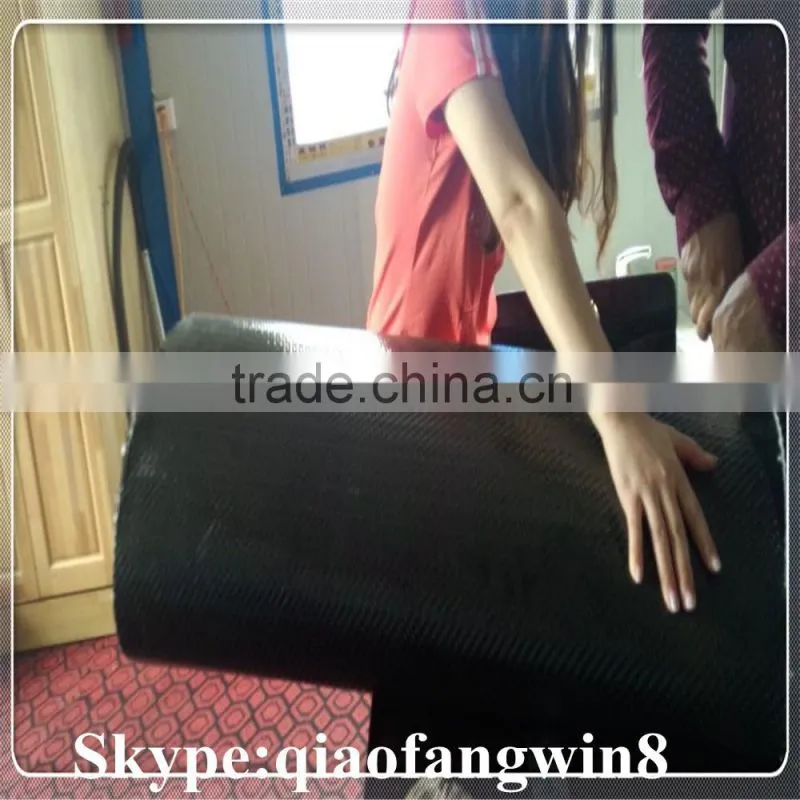

Agricultural Irrigation tpu layflat hose

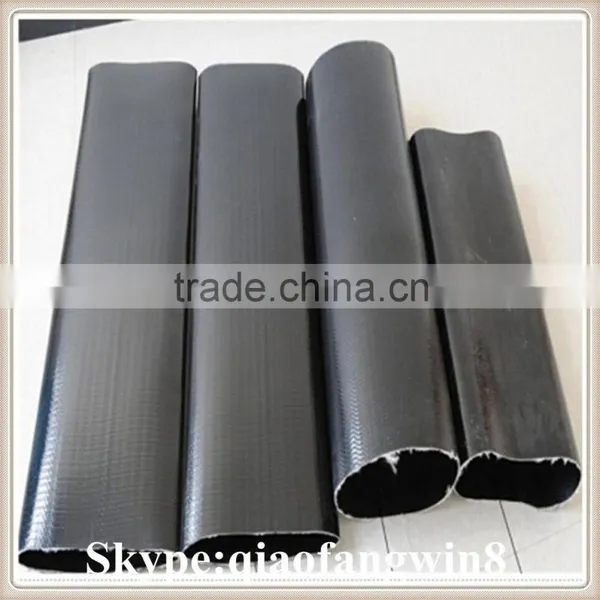

Cover and Lining: PU, Ribbed cover or smoothcover
Reinforcement Jacket: High-tenacity synthetic jacket

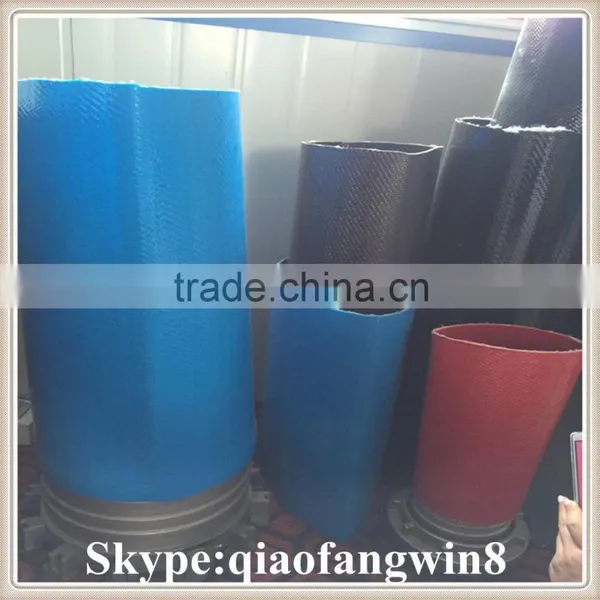

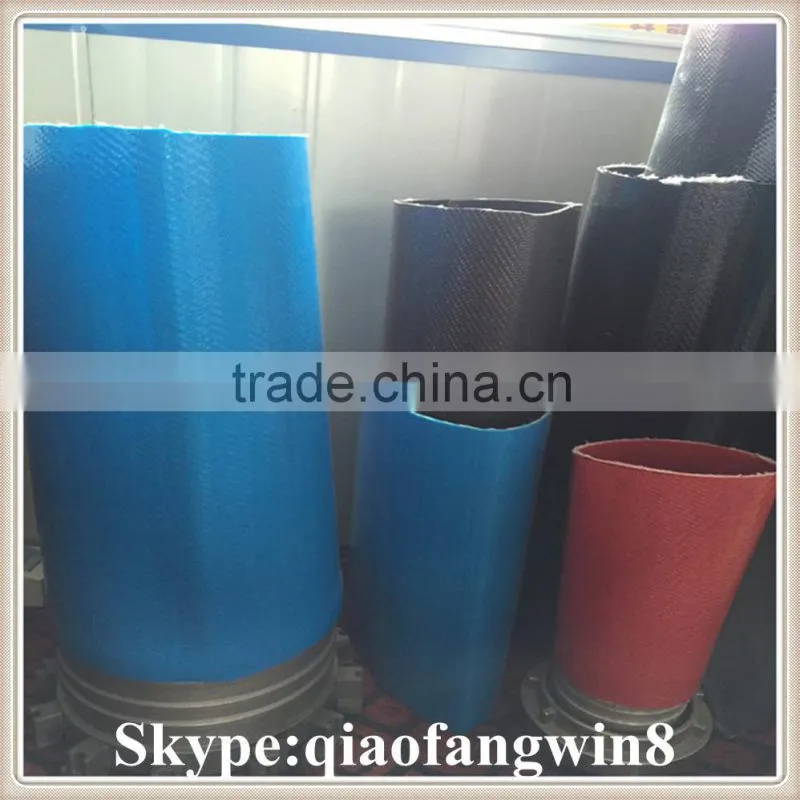

Color: Blue, Green,Black, Red, Yellow

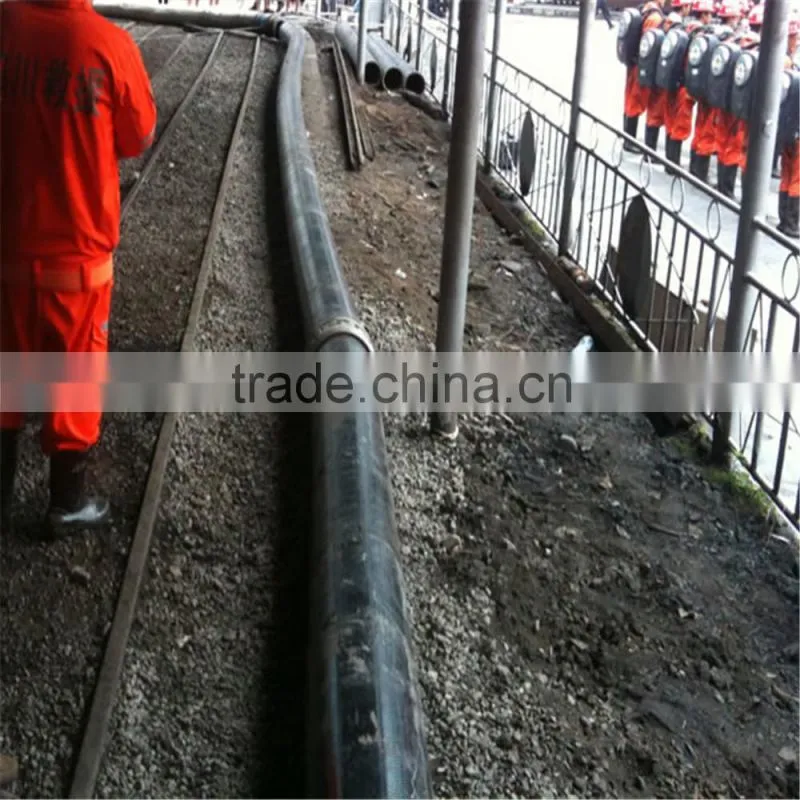

Application:Irrigation, Pumping of sludge and liquid fertilizers, Mine, oil supply or drag hose
This hose is madefrom extruded thermoplastic polyether based polyurethane (TPU) with excellentwear & tear properties. The reinforcement is made from circular wovenfilament polyester yarn. The "extrusion through-the-weave" productionmethod gives a very strong bonding between cover and lining as well as firmlyencapsulating the woven polyester
This hose can operate in atemperature range from -50 C deg to 80 C deg(-58 F deg to +176 F deg).
SPECIFICATION
| Inner Diameter | Wall Thickness(mm) | ||||||
| MM | Inch | 0.6 MPa | 0.8 MPa | 1.0MPa | 1.5MPa | 2.0 MPa | 2.5MPa |
| 101.6 | 4 | 2 | 2.66 | 3.2 | 3.6 | 4.2 | 5 |
| 127 | 5 | 2.1 | 3.2 | 3.4 | 4.3 | 5 | 5.7 |
| 152.4 | 6 | 2.4 | 3.2 | 4 | 5 | 5.8 | 6.5 |
| 203.2 | 8 | 2.8 | 3.7 | 4.5 | 5.2 | 6 | |
| 254 | 10 | 3 | 4 | 5 | 5.8 | 6.7 | |
| 304.8 | 12 | 3.3 | 4.4 | 6 | 7.5 | ||
Agricultural Irrigation tpu layflat hose
PU Layflat Hose/TPU Layflat Hose
1. Hose Specification
We can produce lay flat hose acording to your request on Inner Diameter, working pressure and length per roll. Before send you right quotation, pls kindly confirm with me.
2. About sample before order
We can supply 20-50cm free sample for your test or little longer, you just need to pay express freight or we can do freight collect.
3. MOQ
Usually our MOQ is 1000m each size, but for first cooperation we also accept little order, so any order is welcomed.
4.Shipping and delivery
We can send to you by sea/air/express according to you, ususally deliver within 7 working days after receive deposit.
Contact Information
Skype:qiaofangwin8
Whatsapp:008615762983159
Email: fang AT
QQ:2285548034
Contact Us
- Linyi Saijun Pipe Co., Ltd.
- Contact nameFang Qiao
- Phone86-0539-7168563
- AddressHuasen Industrial Park Linxi 9th road Linyi,Shandong
