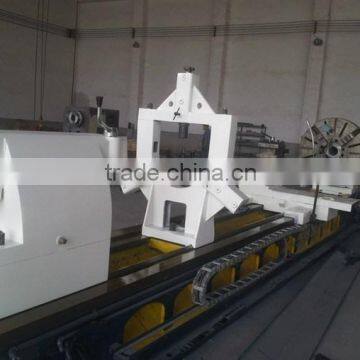

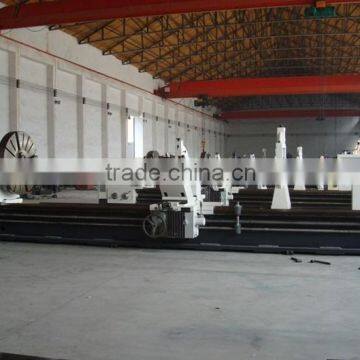

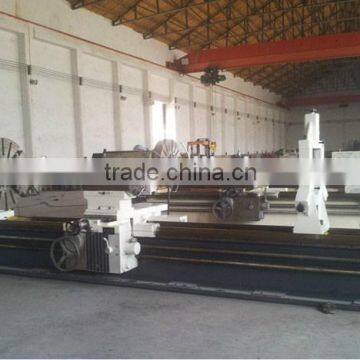

china engine lathe CW61160B*3000/5000/6000/8000 chuck lathe and chinese lathe
Item |
Unit |
Parameters |
Maximum workpiece swing diameter over bed |
mm |
1600 |
Maximum workpiece length |
mm |
5000 |
Turning diameter in the saddle |
mm |
1250 |
Spindle hole |
mm |
φ130 |
Spindle head form |
mm |
Metric system 140 |
Spindle speed species( Forward) |
kinds |
21 |
Spindle speed species( Reversion) |
kinds |
12 |
Spindle speed range |
|
|
Forward |
r/min |
2-200 |
Reversion |
r/min |
2.24-178 |
Spindle turret feed range |
kinds |
56 |
Longitudinal |
mm |
0.1-12 |
Cross |
mm |
0.05-6 |
Up turret |
mm |
0.025-3 |
Metric thread pitch range |
|
43kinds 1-120 |
Inch thread range |
|
29kinds 28-3/8t.p.i |
Modulus thread range |
mm |
45kinds 0.5-60 |
Pitch thread range |
mm |
25kinds 1-56 |
Saddle maximum stroke |
mm |
Maximum workpiece length -50 |
Below turret maximum cross travel |
mm |
630 |
Up turret maximum stroke |
mm |
300 |
Fast-moving turret (Longitudinal) |
mm/min |
3470 |
Fast-moving turret (cross) |
mm/min |
1870 |
Middle turret |
mm/min |
935 |
Tailstock sleeve diameter |
mm |
160 |
Tailstock sleeve maximum stroke |
mm |
300 |
Taper of tailstock sleeve |
kw |
MT6 |
Main motor power |
kw |
22 |
Overall dimensions |
mm |
8000×2150×2000 |
Machine weight |
kg |
19000 |
Bed rail width |
mm |
755 |
Maximum loading |
kg |
8000 |
GUARANTEE AND AFTER-SALE SERVICES:
1.one year guarantee for whole machine except of CNC system, which guarantee is three years
2.24-hours technical support by E-mail or telephone
3.User-friendly English software or Russian or Spanish, Users manuals and Detailed Videos/CD
4.Provide extra accessories for the machine
5.Also provide service of make program according to your drawings
6.Customized or special design is welcome.
If you are interested in our products, welcome to leave a message or send the inquiry to understand the details of machine.
