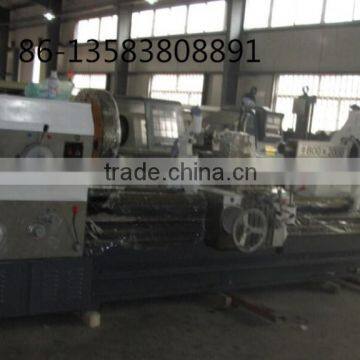

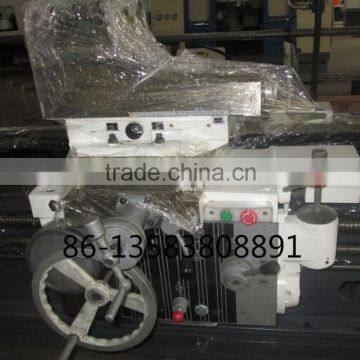

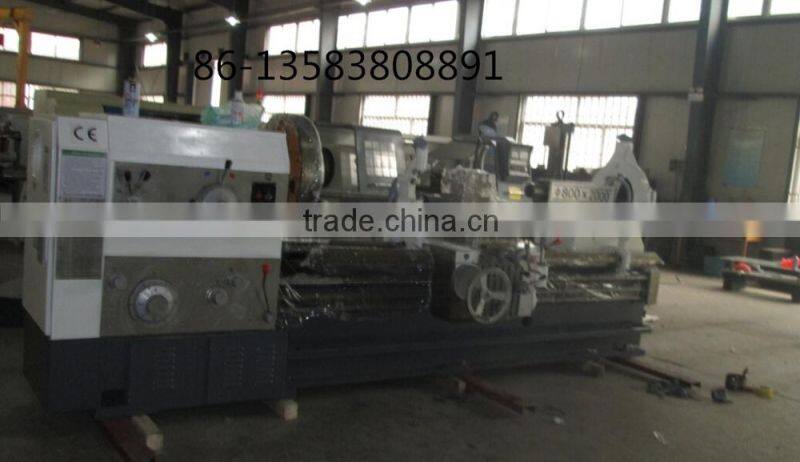

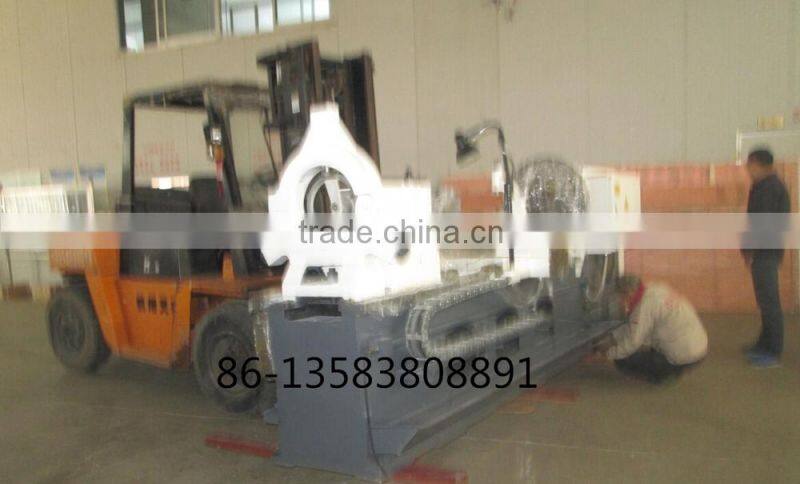

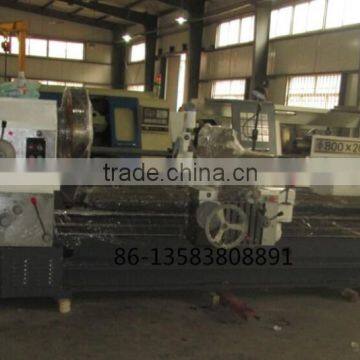

2015hheavy duty CW6280 big bore common lathe conventional horizontal lathe with high qaulity
Item | Unit | Parameters |
Maximum workpiece swing diameter over bed | mm | 800 |
Maximum workpiece length | mm | 1500 |
Maximum workpiece swing diameter over carriage | mm | 480 |
Turning diameter in the saddle | mm | 1100 |
Effective with in the saddle | mm | 310 |
Sindle head form |
| D11 |
Spindle speed progression |
| 18 |
Infeed amount longitudinal feed rate |
| 1/2 |
Longitudinal feed progression and scope | mm/r | 64inds,0.06-24.range :0.1-1.52(1:1):1.6-24.3(16:1) |
With a range of aicro feed change gears | mm/r | 0.06-0.912 |
On turret maximum stroke | mm | 200 |
Below turrest maximum stroke | mm | 450 |
Taper of tailstock sleeve | kw | NI NO.5# |
Tailxtock sleeve maximum stoke | mm | 250 |
Machine screw pitch | mm | 12mm(metric),1/2#(Inch) |
Procesing Metric thread range and knids | mm | 60knids :1-240(another 14 kinds of ono-standard thread ) |
Processing inch thread range and kinds | Teeth/inch | 26 kinds :14-1 |
Module thread range and knids | mm | 53knids :0.5-120 |
Sindle speed range | R/min | 5.4-720 |
Processing thread pitch range and kinds | DP | 24 kinds .28-1 |
Bed rail width | mm | 600 |
Bed rail hardness | RC | RC52 |
Main motor power | kw | 11 |
Fast motor power | kw | 11 |
Coolant pump motorpower | kw | 0.09 |
Machine weight | kg | 4000 |
Overail deimension | mm | 3500*1500*1630 |
Contaction :
Taian Haishu Machinery Co.,Ltd.
website :/english/index.asp
Mobile phone :+86-13583808891
Trademanager : cn1073767244
Skype: lucy001984
Whats App : 13583808891
CW6280 chinese common lathe
This lathe is mainly used for turning face , cylindrical bore , tapered surface and other rotating body parts ,process various commonly used metric , inch , module and pitch threads and can bear drilling nesting boring and other technology
