Home > Products > TPU Layflat Hose > ISO 9000 Large Diameter Hose Pipe As Seen On TV

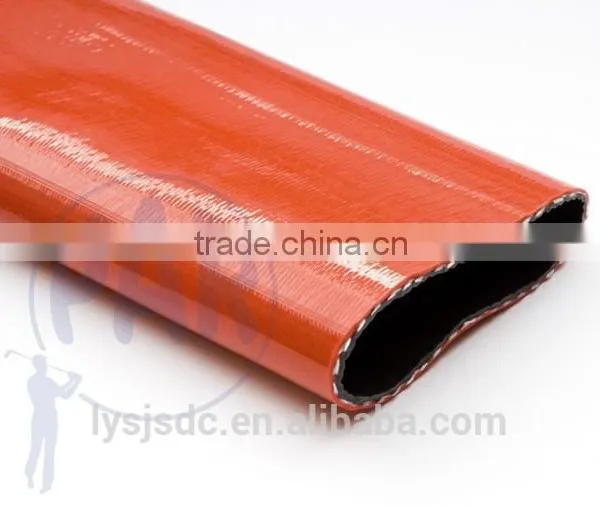

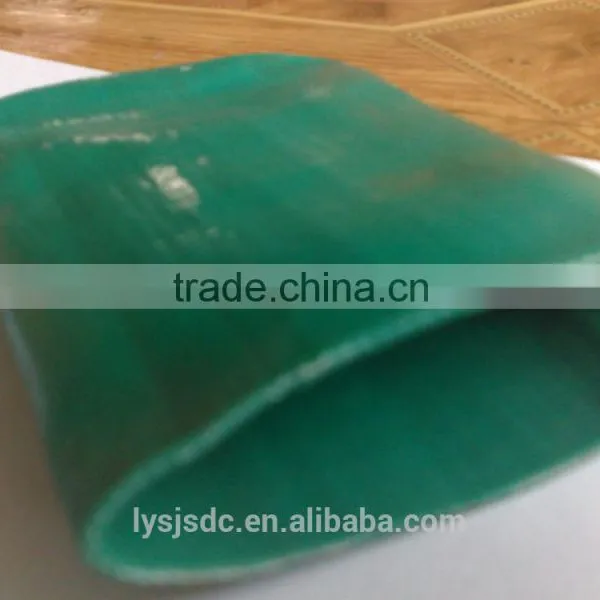

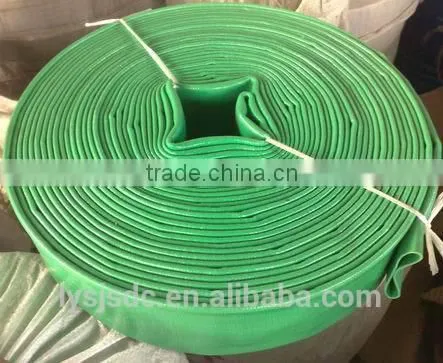

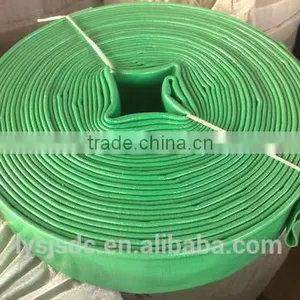

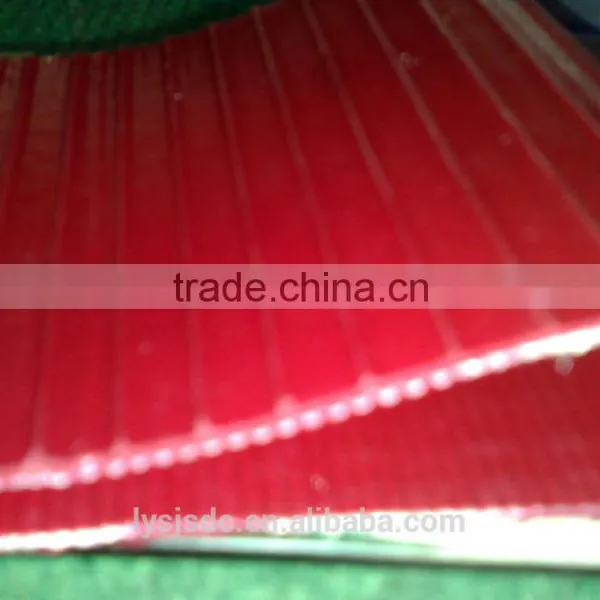

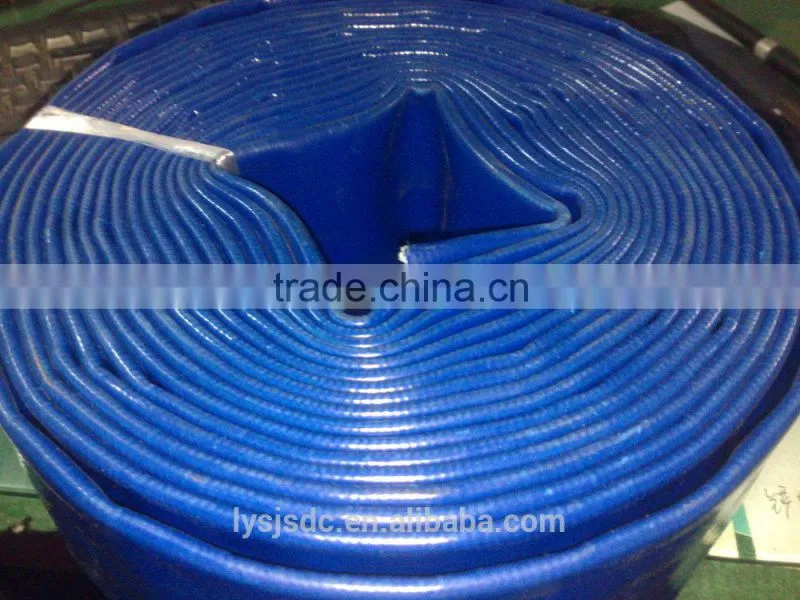

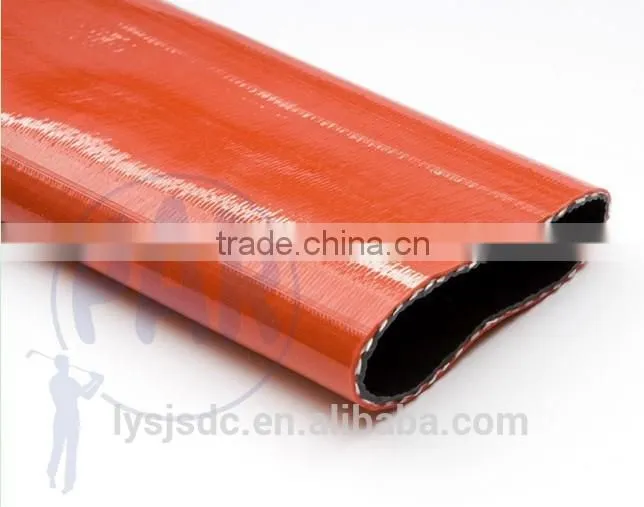

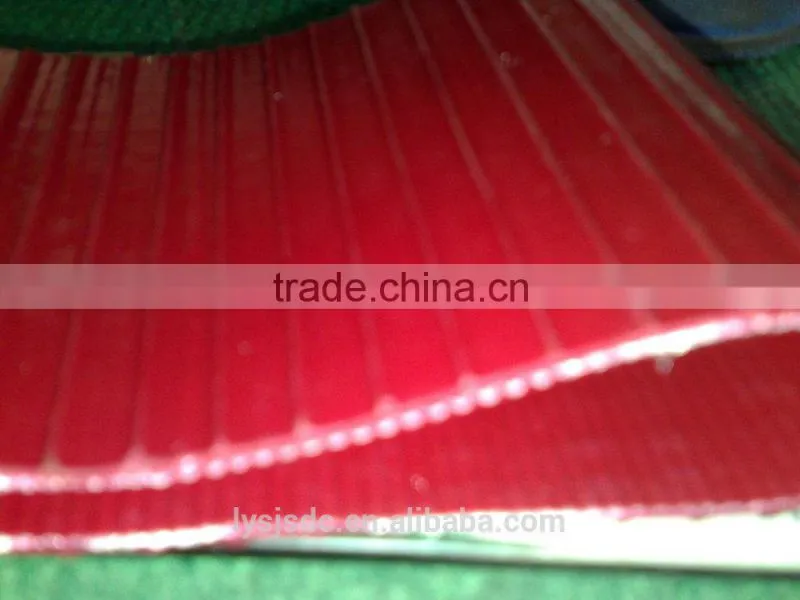

ISO 9000 Large Diameter Hose Pipe As Seen On TV
- 5000000 Meter / Meters per Month
- Qingdao
Product Details
Place of Origin: | Shandong, China | Brand Name: | sanjiang | Model Number: | 2-48bar |
Specification: | 1''-12'' | Length: | 200m | Thickness: | 2-6mm |
Standard: | enterprise standard |
Product Description
inside diameter | wall thickness mm | ||||||||
millimeter | inch | 0.2 MPa | 0.4 MPa | 0.6 MPa | 0.8 MPa | 1.0MPa | 1.5MPa | 2.0 MPa | 2.5MPa |
25.4 | 1 | 1.4 | 1.6 | 1.8 | 2 | 2.2 | 2.4 | 2.6 | 2.8 |
38.1 | 1.5 | 1.4 | 1.6 | 1.8 | 2 | 2.2 | 2.4 | 2.6 | 2.8 |
50.8 | 2 | 1.4 | 1.6 | 1.8 | 2 | 2.2 | 2.4 | 2.6 | 3 |
63.5 | 2.5 | 1.4 | 1.7 | 2 | 2.2 | 2.4 | 2.6 | 2.8 | 3.2 |
76.2 | 3 | 1.5 | 1.8 | 2.1 | 2.3 | 2.5 | 2.8 | 3 | 3.2 |
101.6 | 4 | 1.5 | 1.8 | 2.1 | 2.3 | 2.5 | 2.8 | 3 | 3.2 |
127 | 5 | 1.5 | 1.8 | 2.1 | 2.3 | 2.5 | 2.8 | 3 | |
152.4 | 6 | 1.6 | 2 | 2.2 | 2.5 | 2.8 | 3 | 3.2 | |
203.2 | 8 | 1.8 | 2.3 | 2.5 | 2.8 | 3 | 3.2 | ||
254 | 10 | 2 | 2.3 | 2.8 | 3 | 3.2 | |||
304.8 | 12 | 2.4 | 2.8 | 3 | 3.2 | 3.4 | |||
inside diameter | weight kg | ||||||||
millimeter | inch | 0.2 MPa | 0.4 MPa | 0.6 MPa | 0.8 MPa | 1.0 MPa | 1.5MPa | 2.0MPa | 2.5 MPa |
25.4 | 1 | 0.154 | 0.176 | 0.198 | 0.220 | 0.242 | 0.264 | 0.286 | 0.308 |
38.1 | 1.5 | 0.231 | 0.264 | 0.297 | 0.330 | 0.363 | 0.396 | 0.429 | 0.462 |
50.8 | 2 | 0.308 | 0.352 | 0.396 | 0.440 | 0.484 | 0.528 | 0.572 | 0.616 |
63.5 | 2.5 | 0.385 | 0.467 | 0.549 | 0.604 | 0.659 | 0.714 | 0.769 | 0.824 |
76.2 | 3 | 0.461 | 0.593 | 0.692 | 0.758 | 0.823 | 0.922 | 0.988 | 1.054 |
101.6 | 4 | 0.660 | 0.792 | 0.924 | 1.012 | 1.100 | 1.232 | 1.320 | 1.408 |
127 | 5 | 0.825 | 0.990 | 1.155 | 1.265 | 1.375 | 1.540 | 1.650 | 1.760 |
152.4 | 6 | 1.054 | 1.318 | 1.450 | 1.648 | 1.845 | 1.977 | 2.109 | |
203.2 | 8 | 1.500 | 1.917 | 2.083 | 2.330 | 2.500 | 2.670 | ||
254 | 10 | 2.000 | 2.600 | 2.800 | 3.000 | 3.200 | |||
304.8 | 12 | 2.710 | 3.162 | 3.388 | 3.614 | 3.840 | |||
inside diameter | volume m³ | ||||||||
millimeter | inch | 0.2 MPa | 0.4 MPa | 0.6 MPa | 0.8 MPa | 1.0 MPa | 1.5MPa | 2.0MPa | 2.5 MPa |
25.4 | 1 | 0.000231 | 0.000264 | 0.000297 | 0.000330 | 0.000363 | 0.000396 | 0.000429 | 0.000462 |
38.1 | 1.5 | 0.000347 | 0.000396 | 0.000446 | 0.000495 | 0.000545 | 0.000595 | 0.000644 | 0.000694 |
50.8 | 2 | 0.000462 | 0.000529 | 0.000595 | 0.000661 | 0.000727 | 0.000793 | 0.000859 | 0.000925 |
63.5 | 2.5 | 0.000578 | 0.000701 | 0.000824 | 0.000907 | 0.000989 | 0.001072 | 0.001155 | 0.001237 |
76.2 | 3 | 0.000692 | 0.000890 | 0.001039 | 0.001138 | 0.001236 | 0.001384 | 0.001483 | 0.001583 |
101.6 | 4 | 0.000991 | 0.001189 | 0.001387 | 0.001520 | 0.001652 | 0.001850 | 0.001982 | 0.002114 |
127 | 5 | 0.001239 | 0.001486 | 0.001734 | 0.001899 | 0.002065 | 0.002312 | 0.002477 | 0.002643 |
152.4 | 6 | 0.001583 | 0.001979 | 0.002177 | 0.002474 | 0.002770 | 0.002968 | 0.003167 | |
203.2 | 8 | 0.002252 | 0.002878 | 0.003128 | 0.003498 | 0.003754 | 0.004009 | ||
254 | 10 | 0.003003 | 0.003904 | 0.004204 | 0.004505 | 0.004805 | |||
304.8 | 12 | 0.004069 | 0.004748 | 0.005087 | 0.005426 | 0.005766 |
CHARACTERISTICS :
The hose has high resistance against commonly used chemicals and has excellent resistance to UV radiation, hydrolysis and fungus degradation. The abrasion resistance of the TPU is one of the highest available, making the hose ideal for use in the extremely abrasive environment in open pit mines. The outer cover has been designed with extra thickness in order to add wear & tear material. This extends the useful lifespan of the hose.
Extra abrasion resistance for Agriculture Manure Transfer Hose / Slurry Transfer Hose rugged terrain and extreme conditions Resistant to oil and chemicals UV Stabilised

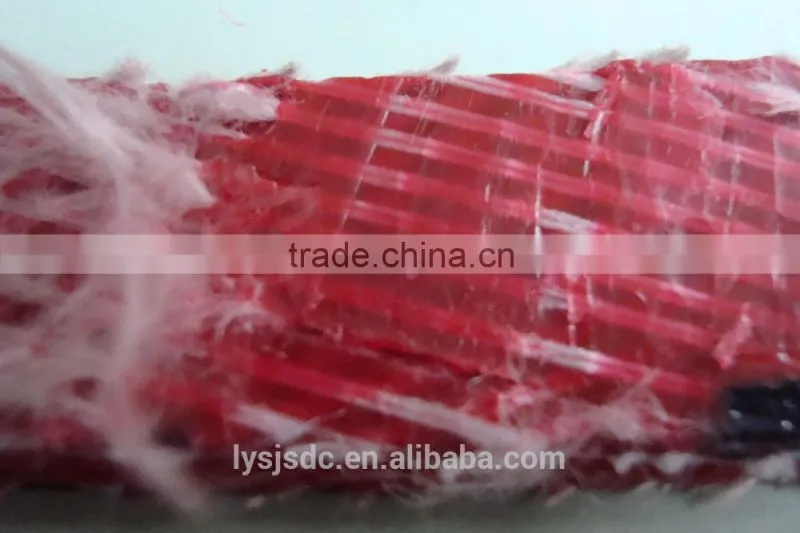

The circular woven filament polyester reinforcement ensures very high tensile strength and facilitates easy towing with tractors without risk of damage. The interlocking weave prevents the hose from lengthwise extension when pulled or pressurized. This avoids delamination of cover or lining from the woven reinforcement and minimizes "snaking" and twisting
NOTES FOR USING THE HOSE :
1) suggest that the pipe bue used within its recommender tempaerature and pressure range.
2) a hose epands and contracts according to the change of its internal pressure and temperature,cut the pipe slingtly longer than it is needed.
3) when pressurizing,slowly open or close any valves to avoid impact pressure and protect the pipe from being damaged.
