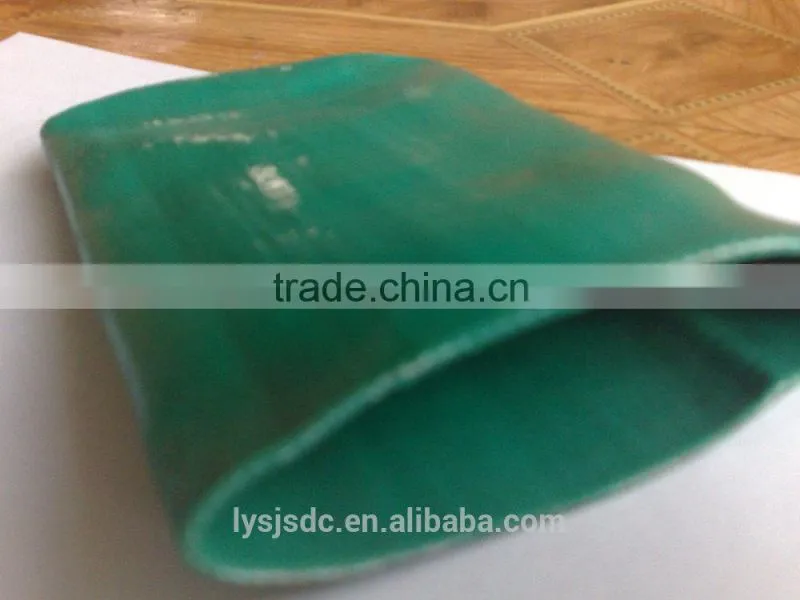

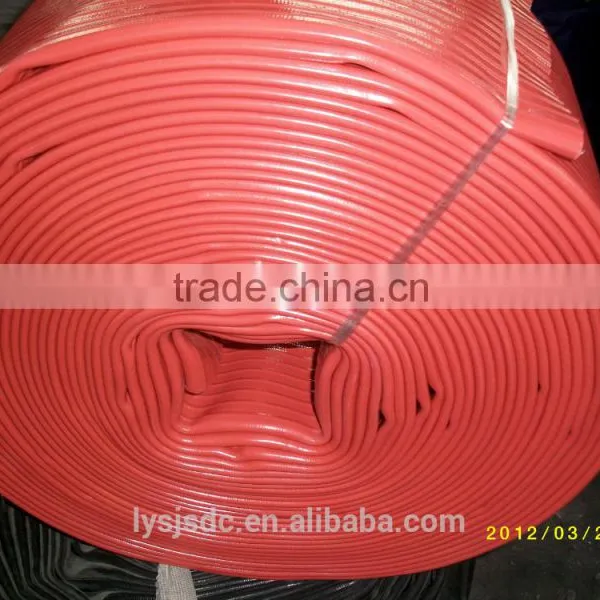

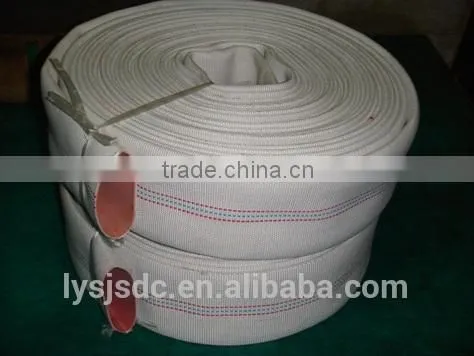

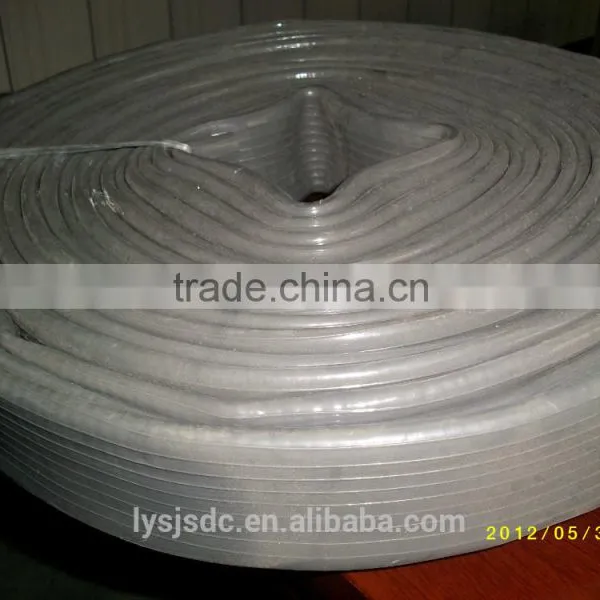

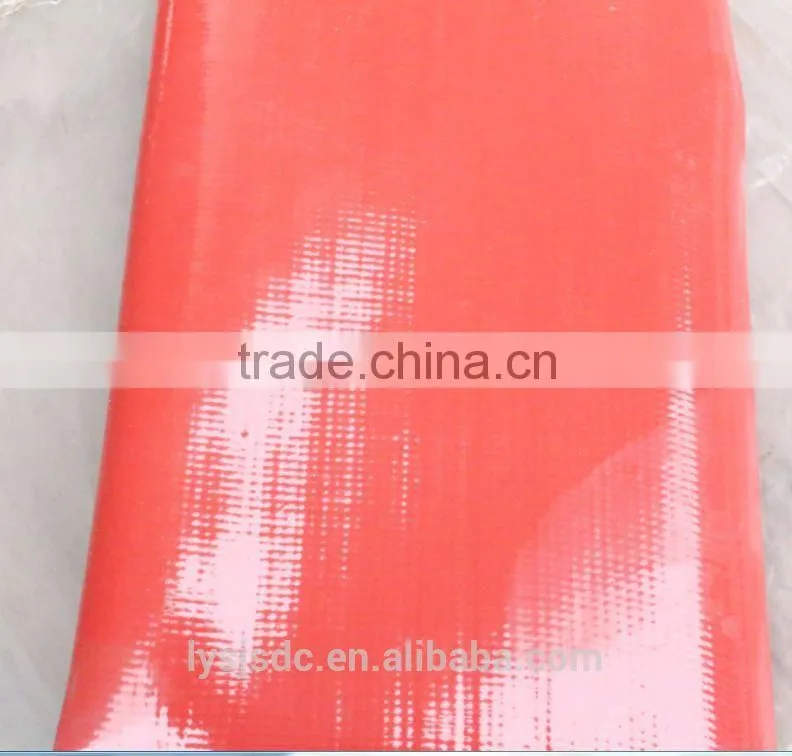

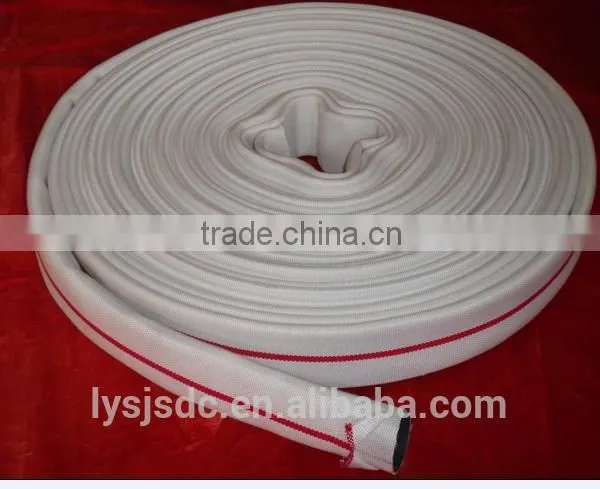

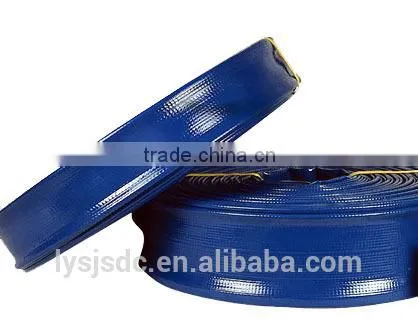

Home > Products > TPU Layflat Hose > Fire Control Hose Hot Selling ! Professional Manufacturer

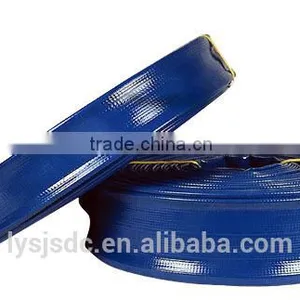

Fire Control Hose Hot Selling ! Professional Manufacturer
- 5000000 Meter / Meters per Month
- Qingdao
Product Details
Place of Origin: | Shandong, China | Brand Name: | sanjiang | Model Number: | 2-48bar |
Specification: | 1''-12'' | Length: | 200m | Thickness: | 2-6mm |
Standard: | enterprise standard |
Product Description
Specifications
1.large specification2.high pressure resistance
3.the quality of it is advanced in the world
inside diameter | wall thickness mm | ||||||||
millimeter | inch | 0.2 MPa | 0.4 MPa | 0.6 MPa | 0.8 MPa | 1.0MPa | 1.5MPa | 2.0 MPa | 2.5MPa |
25.4 | 1 | 1.4 | 1.6 | 1.8 | 2 | 2.2 | 2.4 | 2.6 | 2.8 |
38.1 | 1.5 | 1.4 | 1.6 | 1.8 | 2 | 2.2 | 2.4 | 2.6 | 2.8 |
50.8 | 2 | 1.4 | 1.6 | 1.8 | 2 | 2.2 | 2.4 | 2.6 | 3 |
63.5 | 2.5 | 1.4 | 1.7 | 2 | 2.2 | 2.4 | 2.6 | 2.8 | 3.2 |
76.2 | 3 | 1.5 | 1.8 | 2.1 | 2.3 | 2.5 | 2.8 | 3 | 3.2 |
101.6 | 4 | 1.5 | 1.8 | 2.1 | 2.3 | 2.5 | 2.8 | 3 | 3.2 |
127 | 5 | 1.5 | 1.8 | 2.1 | 2.3 | 2.5 | 2.8 | 3 | |
152.4 | 6 | 1.6 | 2 | 2.2 | 2.5 | 2.8 | 3 | 3.2 | |
203.2 | 8 | 1.8 | 2.3 | 2.5 | 2.8 | 3 | 3.2 | ||
254 | 10 | 2 | 2.3 | 2.8 | 3 | 3.2 | |||
304.8 | 12 | 2.4 | 2.8 | 3 | 3.2 | 3.4 | |||
inside diameter | weight kg | ||||||||
millimeter | inch | 0.2 MPa | 0.4 MPa | 0.6 MPa | 0.8 MPa | 1.0 MPa | 1.5MPa | 2.0MPa | 2.5 MPa |
25.4 | 1 | 0.154 | 0.176 | 0.198 | 0.220 | 0.242 | 0.264 | 0.286 | 0.308 |
38.1 | 1.5 | 0.231 | 0.264 | 0.297 | 0.330 | 0.363 | 0.396 | 0.429 | 0.462 |
50.8 | 2 | 0.308 | 0.352 | 0.396 | 0.440 | 0.484 | 0.528 | 0.572 | 0.616 |
63.5 | 2.5 | 0.385 | 0.467 | 0.549 | 0.604 | 0.659 | 0.714 | 0.769 | 0.824 |
76.2 | 3 | 0.461 | 0.593 | 0.692 | 0.758 | 0.823 | 0.922 | 0.988 | 1.054 |
101.6 | 4 | 0.660 | 0.792 | 0.924 | 1.012 | 1.100 | 1.232 | 1.320 | 1.408 |
127 | 5 | 0.825 | 0.990 | 1.155 | 1.265 | 1.375 | 1.540 | 1.650 | 1.760 |
152.4 | 6 | 1.054 | 1.318 | 1.450 | 1.648 | 1.845 | 1.977 | 2.109 | |
203.2 | 8 | 1.500 | 1.917 | 2.083 | 2.330 | 2.500 | 2.670 | ||
254 | 10 | 2.000 | 2.600 | 2.800 | 3.000 | 3.200 | |||
304.8 | 12 | 2.710 | 3.162 | 3.388 | 3.614 | 3.840 | |||
inside diameter | volume m³ | ||||||||
millimeter | inch | 0.2 MPa | 0.4 MPa | 0.6 MPa | 0.8 MPa | 1.0 MPa | 1.5MPa | 2.0MPa | 2.5 MPa |
25.4 | 1 | 0.000231 | 0.000264 | 0.000297 | 0.000330 | 0.000363 | 0.000396 | 0.000429 | 0.000462 |
38.1 | 1.5 | 0.000347 | 0.000396 | 0.000446 | 0.000495 | 0.000545 | 0.000595 | 0.000644 | 0.000694 |
50.8 | 2 | 0.000462 | 0.000529 | 0.000595 | 0.000661 | 0.000727 | 0.000793 | 0.000859 | 0.000925 |
63.5 | 2.5 | 0.000578 | 0.000701 | 0.000824 | 0.000907 | 0.000989 | 0.001072 | 0.001155 | 0.001237 |
76.2 | 3 | 0.000692 | 0.000890 | 0.001039 | 0.001138 | 0.001236 | 0.001384 | 0.001483 | 0.001583 |
101.6 | 4 | 0.000991 | 0.001189 | 0.001387 | 0.001520 | 0.001652 | 0.001850 | 0.001982 | 0.002114 |
127 | 5 | 0.001239 | 0.001486 | 0.001734 | 0.001899 | 0.002065 | 0.002312 | 0.002477 | 0.002643 |
152.4 | 6 | 0.001583 | 0.001979 | 0.002177 | 0.002474 | 0.002770 | 0.002968 | 0.003167 | |
203.2 | 8 | 0.002252 | 0.002878 | 0.003128 | 0.003498 | 0.003754 | 0.004009 | ||
254 | 10 | 0.003003 | 0.003904 | 0.004204 | 0.004505 | 0.004805 | |||
304.8 | 12 | 0.004069 | 0.004748 | 0.005087 | 0.005426 | 0.005766 |
CHARACTERISTICS:
1) best material: choosing high strength polyester filament and high quality
2) acid&alkali resistant,aging resistant,stretching resistant,anti-wrinkle,non-toxic
NOTES FOR USING THE HOSE :
1) suggest that the pipe bue used within its recommender tempaerature and pressure range.
2) a hose epands and contracts according to the change of its internal pressure and temperature,cut the pipe slingtly longer than it is needed.
3) when pressurizing,slowly open or close any valves to avoid impact pressure and protect the pipe from being damaged.
