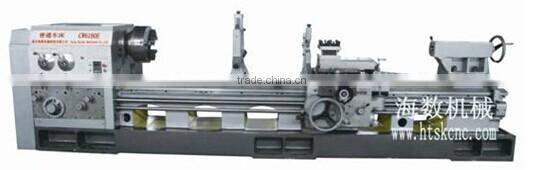

High Quality and Low Price CW6163E Metal Lathe Machine

Name: High Quality and Low Price CW6163E Metal Lathe Machine
Brand: Haishu
SKU: 128496423
Availability: InStock

US$ 5,000 - 9,500 MOQ: 1 Set

Key Specifications

Condition:

New

Type:

Horizontal

CNC or Not:

Normal

Taian Haishu Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Horizontal

CNC or Not Normal

Automatic Grade Manual

Max. Swing Diameter 630mm

Place of Origin Shandong, China

Brand Name Haishu

Model Number CW6163E

Voltage 380v 50hz

Power(W) 11KW

Dimension(L*W*H) 2500/2750/325

Weight 4050,5200

Certification CE

After-sales Service Provided Overseas third-party support available

CW6163E metal lathe machine

SPECIFICATE

1.CE Certificate 2.Competitive price

3.Schneider breaker 4.4-position tools

5.Easy for operation 6.Concrete structure

7.High efficient and economic 8.Precision ball screws

9.Hydraulic components 10.Famous brand components

technical parameter

Item	Lathe specifications	Unit	CW6163E
Machining range	Maximum rotation diameter of the lathe's body	mm	φ630
	Maximum rotation diameter of work-piece on the tool rest	mm	φ350
	Maximum length of the work-piece	mm	1500,3000,6000
	The width of the lathe guide rail	mm	550
Spindle	Spingdle nose code		C11
	Diameter of the spindle	mm	φ100
	Spindle inside taper		Metric 120 1:20
	Range of spindle speeds	r/min	10-700
	Spindle speed series		Four gears to chang speed, No grade to change frequency
Feeding system	Longitudinal and transverse feeding number range	mm/r	56; 0.1-12
	Screw pitch	mm	12
	Number range of the thread under Metric system	mm	44:1-120
	Number range of the thread under British system	mm	26;14-1 inch
	Number range of the module thread	mm	45:M0.5-M60
	Number range of the diametral pitch	mm	24 28-1
	Slide fast moving speed	mm/min	4000
Knife rest	Max travel of cross tool-post	mm	420
	Max travel of upper tool-post	mm	200
	Length of section of knife handle	mm	30×30
Tailstock	Sleeve diameter of tailstock	mm	φ100
	Sleeve trip of tailstock	mm	250
	Cone hole taper tailstock's sleeve	Morse	Morse 6#
	Main motor power	KW	11
Machine Size, Weight	Lengthwidthheight	mm	3580/5080/8080×1320×1500
	Net weight
