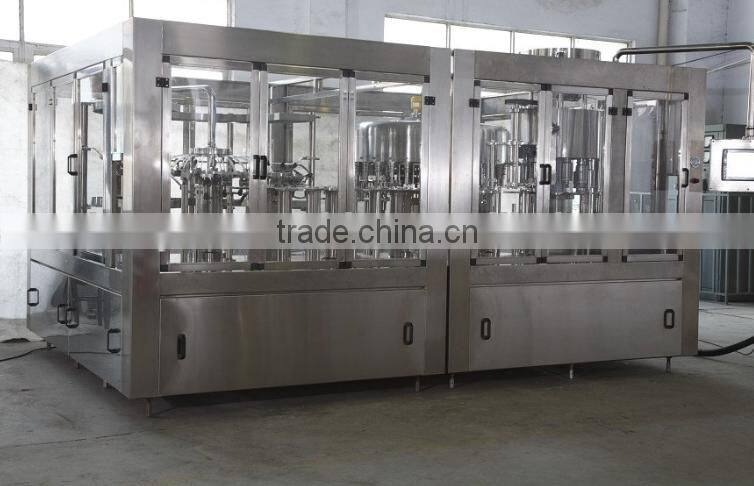

Economic Bottle Soft Drinks Filling Line

Economic Bottle Soft Drinks Filling Line

Introduction

The series equipment is used in producing all kinds of soda drink contained with polyester with bottle.Washing ,filling,sealing can carried out on the same machine.The design of the machine is scientific and reasonable.

Washing part

Features

l. The rotary wheel is a fully stainless steel welded structure.

2. The machine applies unique overturning bottle clamp, which is an innovation of our company. This bottle clamp grips

bottle at neck position, avoiding bottle mouth thread contamination caused by rubber gripper block of a traditional bottle

clamp. Made of SUS304 stainless steel, this bottle clamp is hygienic and durable.

3. The high efficiency atomizing spay nozzle installed on bottle clamp is capable of cleaning any part of bottle inner wall,

and also saves rinsing water.

4. All sliding bushes of lifting device use Igus (Germany) anti-corrosion maintenance free bearing.

5. The rinser is driven by driving system positioned inside machine frame via gear transmission.

6. Transfer starwheel

7. Made of stainless steel of superior quality.

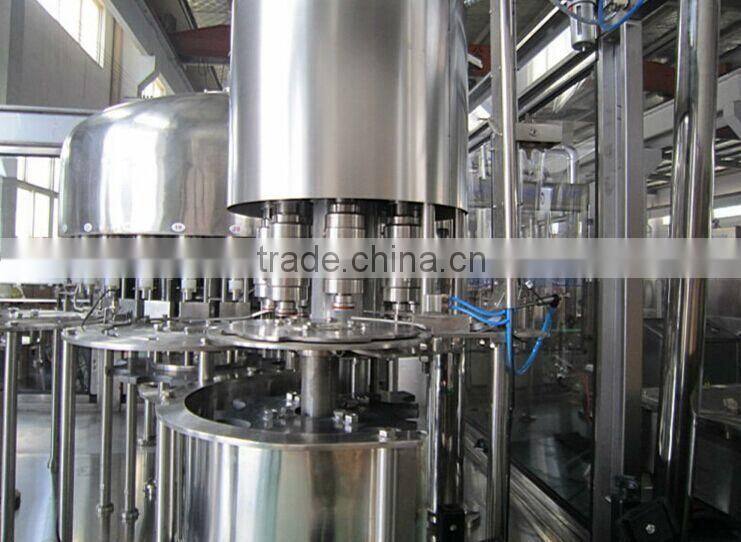

 Filling Parts

Features

l. Rotary wheel fully made of stainless steel SUS 304.

2. Gravity filling method.

3. Filling valves are made of SUS316L.

4. Filling valves are reasonably structured with accurate filling.

5. Bottles go up and down in the function of cam through elevator, to process filling with contact to bottle-mouth.

6. Level of cylinder is controlled with float-ball.

7. Filler is driven through gears inside the machine frame.

8. Link-wheels in rinser, filler and capper are transported in ringed support of bottle-neck.

Capping Parts

Features

l. The equipment is designed with the support of experts from school of engineering and mechanical in Shanghai Jiao Tong University, and uses the technology of Arol from Italy, most advance technology in the world, developed with the experience .

I) extruding wheel (main part to control the stability when sealing), uses the technology of Arol. Kinematical and kinetic

design of the wheel by experts improves the stability and credibility of the equipment.

II) Sealing faucet (main part to control the credibility of sealing), is improved by experts with the design of alnico. Besides

the magnetic contortion variation device, there is variation dial which makes variation more easily. The benefit of this design

is not only it can set the contortion, but also it makes contortion more precise and credible, and reduces inferior.

Economic Bottle Soft Drinks Filling Line

Technical Data

Soft Drinks Filling Machine
