Specifications

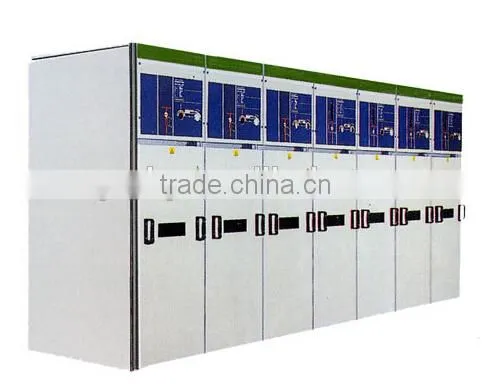

Indoor HV SF6 Ring Main Unit
1. GB3906 & GB/T11022 & IEC60298 & DL/T404.
2. Vacuum circuit breaker: VS1VD4VSm
Indoor HV SF6 Ring Main Unit Product Description
A. Indoor HV SF6 Ring Main Unit consists of switch compartment, fuse compartment, operating mechanism compartment and cable compartment(bottom frame).
B. The switch compartment consists of function circuit (including earthing switch and load switch) and busbar among the circuits.
C. The load switch adopts air blast structure, which enhances the arc extinction capacity, but won't affect the insulation of phase to phase and phase to earth. Besides both of moving contact and static contact have arc contacts, which increase the breaking times.
D. Both of fuse switch and load switch compartment consist of the protection circuit of transformer. The HV current limiting fuse is fitted in the epoxy casting insulating closure. When the fuse melts, then firing pin will bounces out, next the load switch opens.
E. Operating mechanism compartment is on the right side of the RMU.
No. |
Parameter |
Unit |
Value |
1. |
Rated voltage |
KV |
40.5 |
2. |
Lightning impulse |
|
|
|
withstand voltage(peak value) |
KV |
185 |
|
Isolating distance |
KV |
215KV/min |
|
Power frequency withstand voltage |
KV |
95 |
|
Isolating distance |
KV |
118 |
3. |
Load switch |
|
|
|
Rated current |
A |
630 |
. |
Rated short time withstand current (2s) |
KA |
20 |
|
Rated short time withstand current(peak value) |
KA |
50 |
|
Rated short circuit making current (peak value) |
KA |
50 |
|
Mechanical endurance |
Times |
5000 |
4 |
Busbar side of earthing switch |
|
|
|
Rated short time withstand current(2s) |
KA |
20 |
. |
Rated peak withstand current(peak value) |
KA |
50 |
|
Rated short circuit making current (peak value) |
KA |
50 |
|
Mechanical endurance |
Times |
2000 |
5 |
Earthing circuit
|
|
|
|
Rated short time withstand current(2s) |
KA |
17.4 |
|
Rated peak withstand current(value) |
KA |
43.5 |
6. |
Fuse Rated current |
A |
50 |
|
Rated short circuit breaking current |
KA |
31.5 |
7 |
Protection degree |
|
|
|
Main circuit (load switch, earthing switch) |
|
IP5X |
|
Fuse, cable connecting piece |
|
IP4X |
|
Fuse compartment, mechanism compartment |
|
IP3X |
