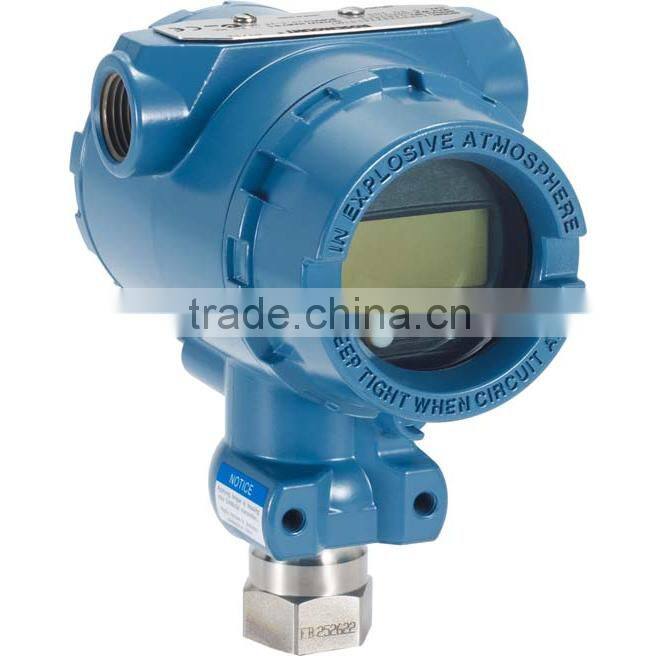

Original Hart 2088 Liquid Level Transmitter

US$ 300 - 1,000 MOQ: 1 Piece

Key Specifications

Place of Origin:

Singapore

Brand Name:

Model Number:

2088

Xian Yuanshun Electrical Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Xi'an shanghai beijing

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Singapore

Brand Name .

Model Number 2088

differential 2088 pressure transmitter

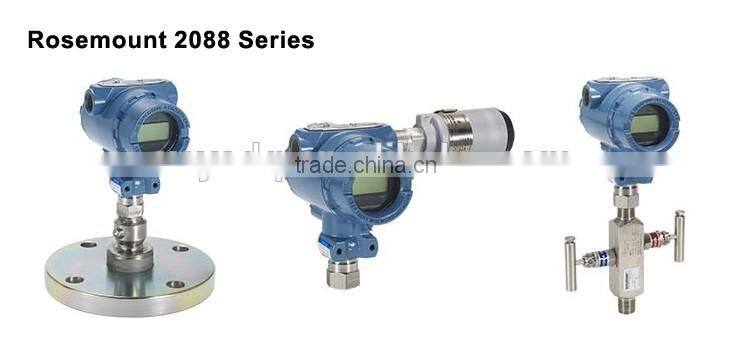

Transmitter 2088 Series

Pressure Transmitter 2088

Available protocols include 4-20 mA HART and 1-5 Vdc HART Low Power
Scaled Variable enables application specific engineering units
Choice of Stainless Steel or Alloy C-276 wetted materials
Lightweight, compact design for easy installation
Internal and external button options are available to simplify commissioning and maintenance

Specifications:

Measurement Types	Gage, Absolute
Output	HART, Low Power HART
Reference Accuracy	± 0.075% ± 0.065% of span (with high accuracy option P8)
Stability	± 0.10% or URL for 3 years

Range of 2088:

2088	Pressure transmitter
code	Transmitter’s series
A	Absolute pressure
G	Gauge pressure
code	Pressure range
1	0-30psi(0-200KPa)
2	0-150PSI(0-1.03KPa)
3	0-800psi(0-5.52MPa)
4	0-4000PSI(0-27.6MPa)
code	output
N	1-5Vdc/with hart communication
S	4-20mA dc/with hart communication
code	Process connection	Isolation diaphragm	Pouring liquid
22	316SST	316SST	Silicone oil
33	Hastelloy C	Hastelloy C	Silicone oil
2B	316SST	316SST	Inert liquid
code	Process connector
A	1/2-14NPT female thread
B	DIN16288 G1/2 male thread
C	RC 1/2 female thread(PT1/2 female thread)
D	M20*1.5male thread(CM male thread)
code	wire conduit thread
1	1/2-14NPT
2	M20*1.5female thread(CM20)
3	PG13.5
4	G1/2 female thread(PT 1/2 female thread)
