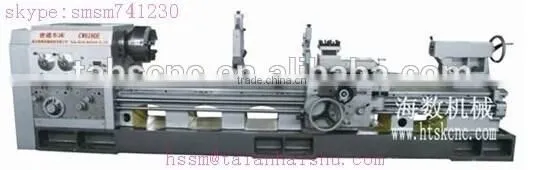

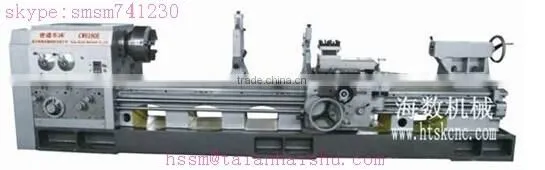

record lathe CW6163E conventional lathes and gap bed manual lathe
SPECIFICATE
1.CE Certificate 2.Competitive price
3.Schneider breaker 4.4-position tools
5.Easy for operation 6.Concrete structure
7.High efficient and economic 8.Precision ball screws
9.Hydraulic components 10.Famous brand components
technical parameter
Item |
Lathe specifications |
Unit |
CW6163E
|
|
|
Machining range |
Maximum rotation diameter of the lathe's body |
mm |
φ630
|
|
Maximum rotation diameter of work-piece on the tool rest |
mm |
φ350
|
||
Maximum length of the work-piece |
mm |
1500,3000,6000 |
||
The width of the lathe guide rail |
mm |
550 |
||
Spindle |
Spingdle nose code |
|
C11 |
|
Diameter of the spindle |
mm |
φ100 |
||
Spindle inside taper |
|
Metric 120 1:20 |
||
Range of spindle speeds |
r/min |
10-700 |
||
Spindle speed series |
|
Four gears to chang speed, No grade to change frequency |
||
|
Feeding system |
Longitudinal and transverse feeding number range |
mm/r |
56; 0.1-12 |
|
Screw pitch |
mm |
12 |
||
Number range of the thread under Metric system |
mm |
44:1-120 |
||
Number range of the thread under British system |
mm |
26;14-1 inch |
||
Number range of the module thread |
mm |
45:M0.5-M60 |
||
Number range of the diametral pitch |
mm |
24 28-1 |
||
Slide fast moving speed |
mm/min |
4000 |
||
Knife rest |
Max travel of cross tool-post |
mm |
420 |
|
Max travel of upper tool-post |
mm |
200 |
||
Length of section of knife handle |
mm |
30×30 |
||
Tailstock |
Sleeve diameter of tailstock |
mm |
φ100 |
|
Sleeve trip of tailstock |
mm |
250 |
||
Cone hole taper tailstock's sleeve |
Morse |
Morse 6# |
||
Main motor power |
KW |
11 |
||
Machine Size, Weight |
Length*width*height |
mm |
3580/5080/8080×1320×1500 |
|
Net weight |
|
|
||
If you are interested in record lathe CW6163E conventional lathes and gap bed manual lathe , welcome to leave a message or send the inquiry to understand the details of machine.
