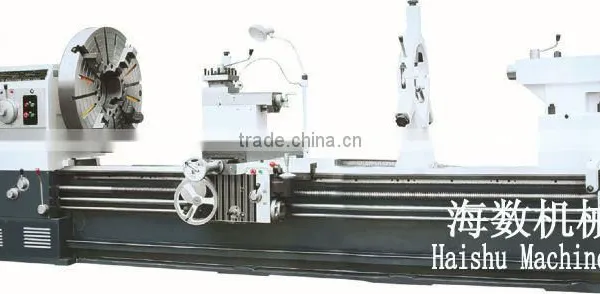

CW62100B Common(Saddle)Lathe
This lathe is mainly used for turning face, cylindrical bore, tapered surface, and other rotating body parts, process various commonly used metric, inch, module and pitch threads, and can bear drilling, nesting, boring and other technology.
Structural features:
Bed with large double width sidewall ribs, the inner ribs and diagonal ribs with box-shaped composite structure, the overall stiffness than the single-walled door-shaped rib structure to improve third.
Centralized control, slide plate has a fast moving body with single handle visualize manipulation; spindle reversing conversion and brake hydraulic control.
Lathe structural stiffness and transmission stiffness were higher accuracy and stability, and can carry heavy cutting.
Bed rail down surface using TSF wear inlay layer structure, motion light and flexible, long life; lubrication system for the circulation outside the box to improve the machining accuracy.
Spindle hole 105mm (C type is 130mm); processing length is 1500mm, 2000mm, 3000mm, 5000mm and so on. Tailstock with dials and engraved lines, using an intuitive; Overall neat appearance, easy to clean and maintain.
Main technical parameters
Item |
Unit |
Parameters |
Maximum workpiece swing diameter over bed |
mm |
1000 |
Maximum workpiece length |
mm |
3000 |
Maximum workpiece swing diameter over carriage |
mm |
680 |
Turning diameter in the saddle |
mm |
1200 |
Effective width In the saddle |
mm |
310 |
Spindle bore diameter |
mm |
φ105 |
Spindle head form |
|
D11 |
Front spindle taper hole diameter |
mm |
φ120 |
Front spindle Taper |
|
MT No.5# |
Spindle speeds Progression |
|
18 |
Spindle speed range |
r/min |
5.4~720 |
Infeed amount |
|
1/2 |
