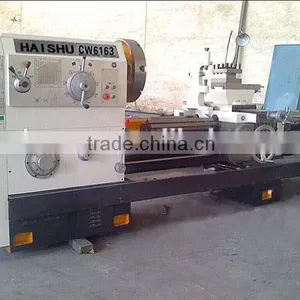

Common Lathe CW6163B Engine Lathe

Name: Common Lathe CW6163B Engine Lathe
Brand: HaiShu
SKU: 128491997
Availability: InStock

US$ 10,000 - 30,000 MOQ: 1 Set

Key Specifications

Condition:

New

Type:

Horizontal

CNC or Not:

Normal

Taian Haishu Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

qingdao port

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Horizontal

CNC or Not Normal

Automatic Grade Manual

Max. Swing Diameter 630mm

Place of Origin Shandong, China

Brand Name HaiShu

Model Number CW6163B

Voltage 380v 50hz

Power(W) 11KW

Dimension(L*W*H) 2150*1250*1600mm

Weight 3700KG

Certification CE Certificate

After-sales Service Provided Engineers available to service machinery overseas

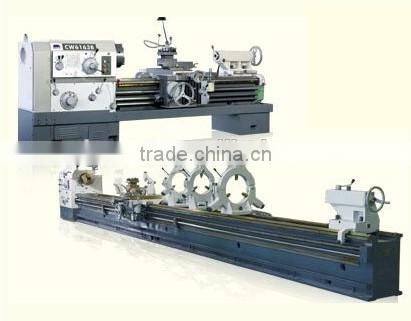

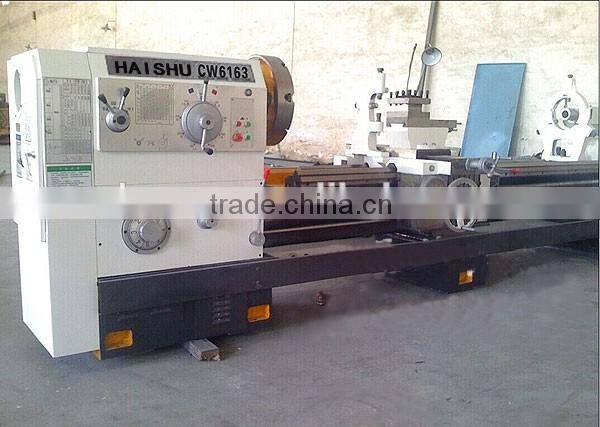

Common lathe CW6163B engine lathe

Item	Unit	Parameters
Maximum workpiece swing diameter over bed	mm	630
Maximum rotation diameter of on the tool rest	mm	350
Maximum workpiece length	mm	1500/2000
Maximum swing diameter in the saddle/ Valid width	mm	300
Spindle hole diameter and Spindle head form		105,D11/130,D11
front end of the spindle hole and the top taper		120mm,MT5
Series and range of spindle speed		18 kinds,7.5-1000rpm
Longitudinal feed series and range		64 kinds,0.05-24.3mm/r
Range 1:1	mm/r	0.1-1.52
Range 16:1	mm/r	1.6-24.3
Micro feed range of switch gear	mm/r	0.05-0.912
The ratio of horizontal feed and longitudinal feed		1/2
Saddle fast moving speed	mm/min	4000
Lead screw pitch		12 Metric,1/2 British
Metric thread number and range		50 kinds,1-240
British thread number and range	t.p.i	26 kinds,14-1
Modulus thread number and range		53 kinds,0.5-120
Number and range of diametral pitch thread	DP	24 kinds,28-1
The maximum horizontal stroke of the lower turret	mm	420
Up turret maximum stroke	mm	200
Tailstock sleeve stroke	mm	250
Taper of tailstock sleeve		MT6
Main motor power	kw	11
Fast motor power	kw	1.1
Cooling pump motor power	W	90
Maximum load	kg	2000
Machine weight	kg	3500(1.5m)3700(2m)
