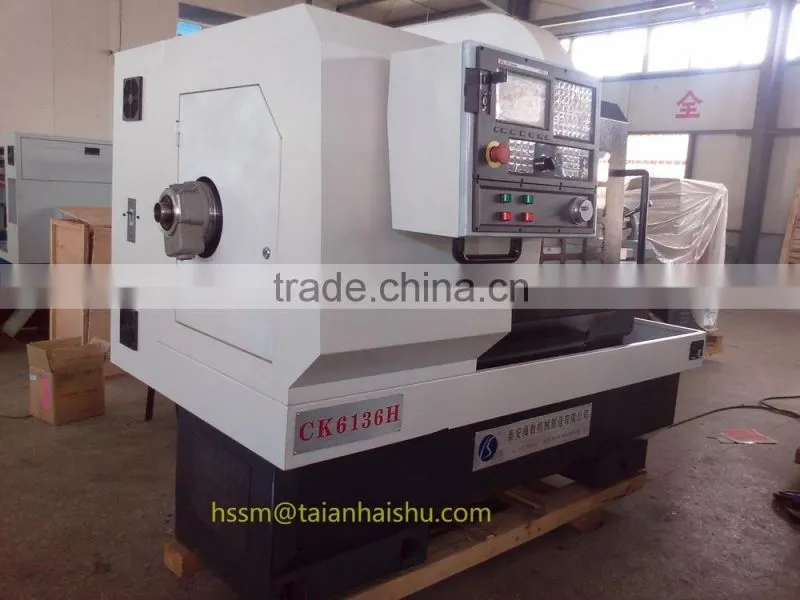

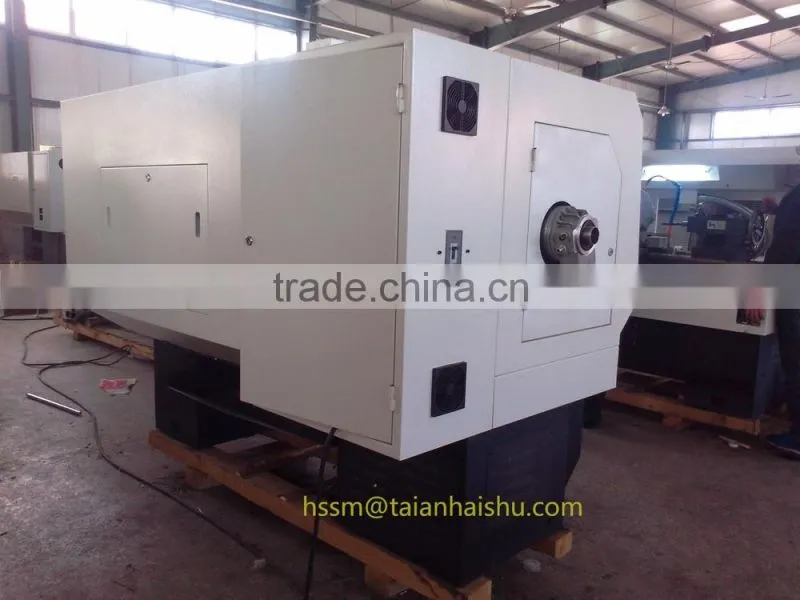

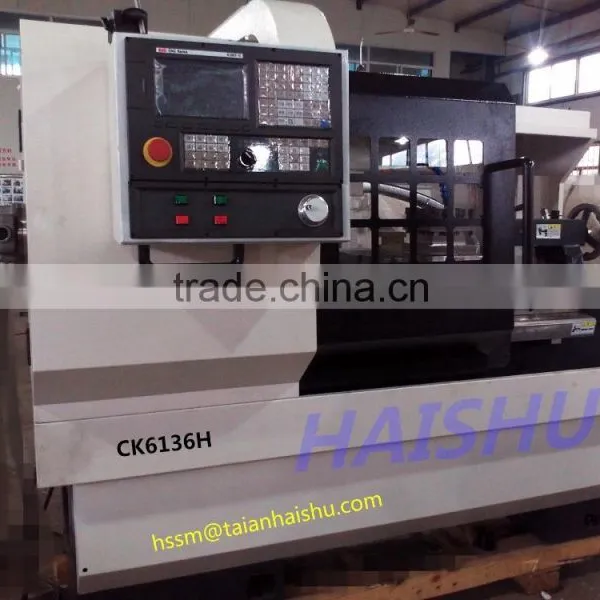

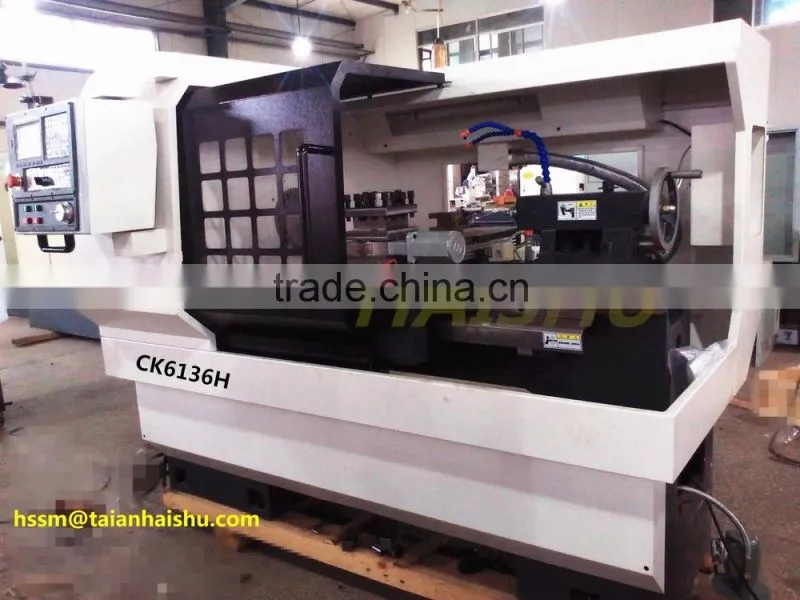

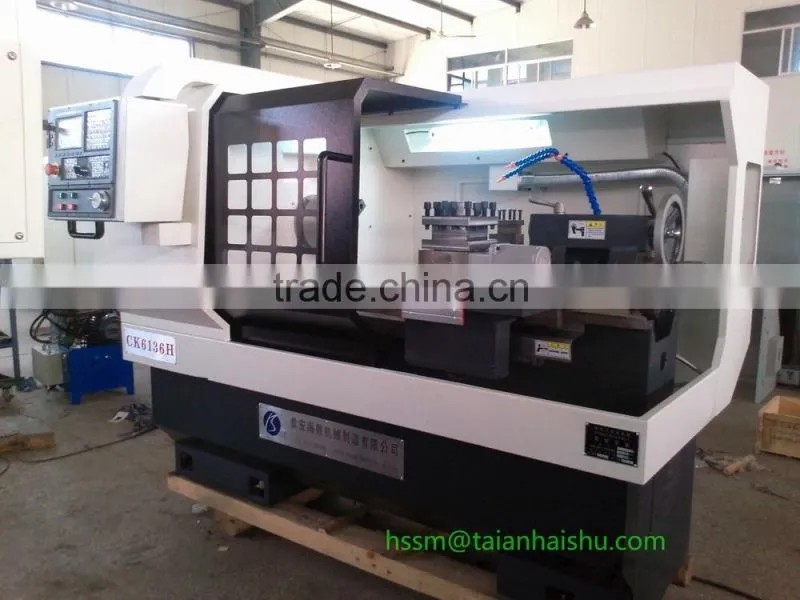

cnc lathe machine price CK6136H turning lathe
Technical parameters
Item |
Project name |
Technical paramaters |
technical specifications |
Max.swiming over the bed dia. (mm) |
Φ420 |
Max.swiming over pallet(mm) |
Φ210 |
|
Max.the workpiece length(mm) |
750 |
|
|
Main transmission |
Main transmission form |
Independent spindle; frequency conversion stepless |
Number of spindle speeds |
stepless |
|
Range of spindle speed(r/min) |
300~3000 |
|
The form of the spindle head |
NO.6 A2type |
|
Spindle bore(mm) |
Φ58 |
|

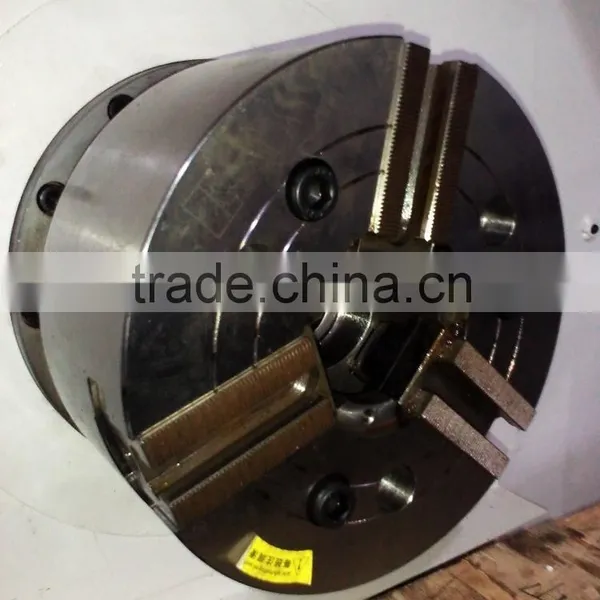

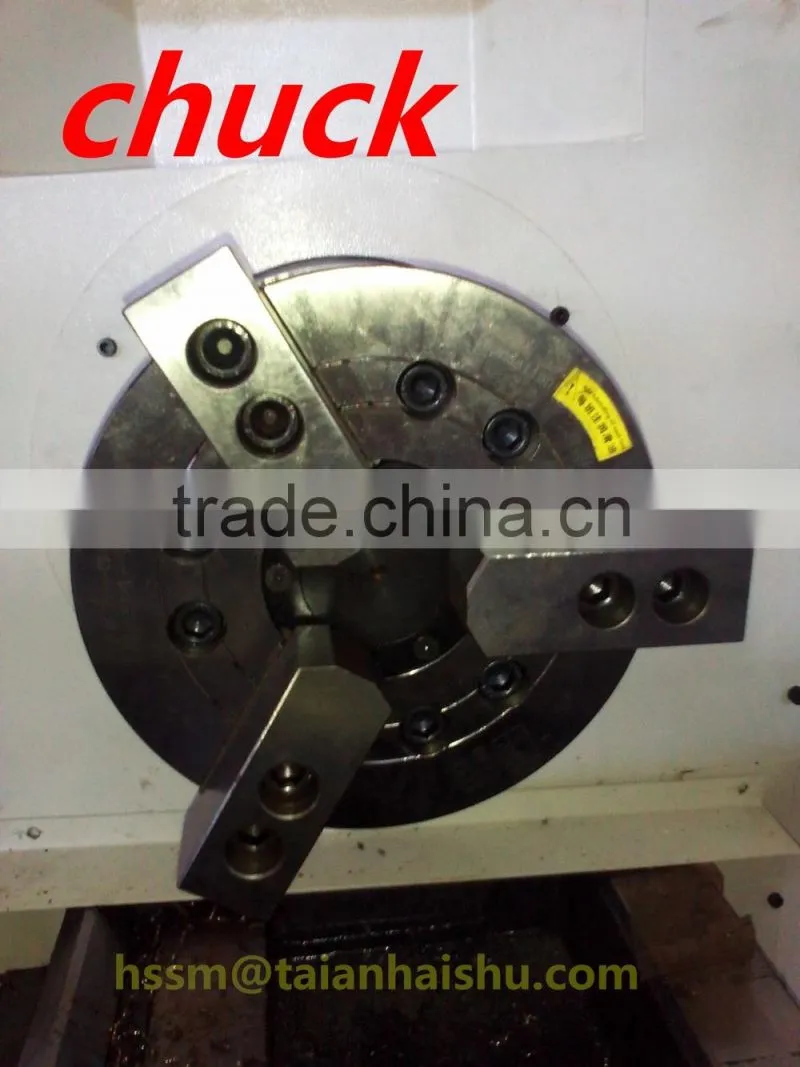

Chuck dia. (mm) |
Φ200 |
|
Main motor power(kw) |
5.5kw |
|
|
Feed system |
Turret maximum stroke(mm) |
X - axis: 260 Z - axis:750 |
Fast-moving feed(mm/min) |
X - axis:6000 Z - axis:8000 |
|
Repeat positioning accuracy(mm) |
X - axis:0.01 Z - axis:0.015 |
|
Workpiece accuracy |
IT6-IT7 |
|
Workpiece surface roughness |
Ra1.6 |
|
|

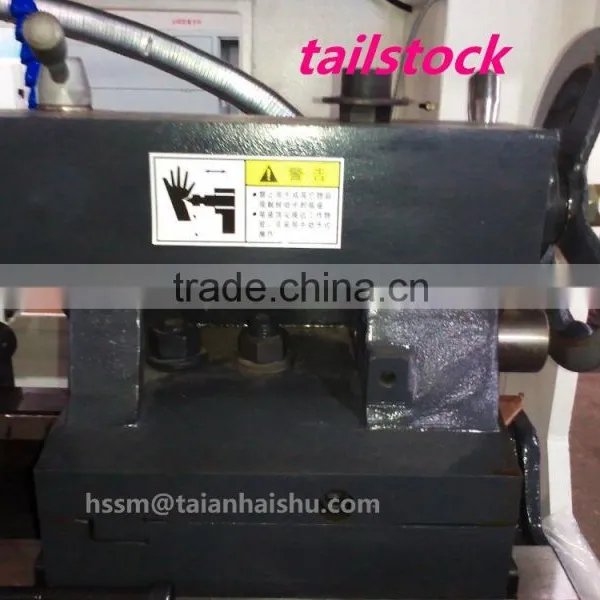

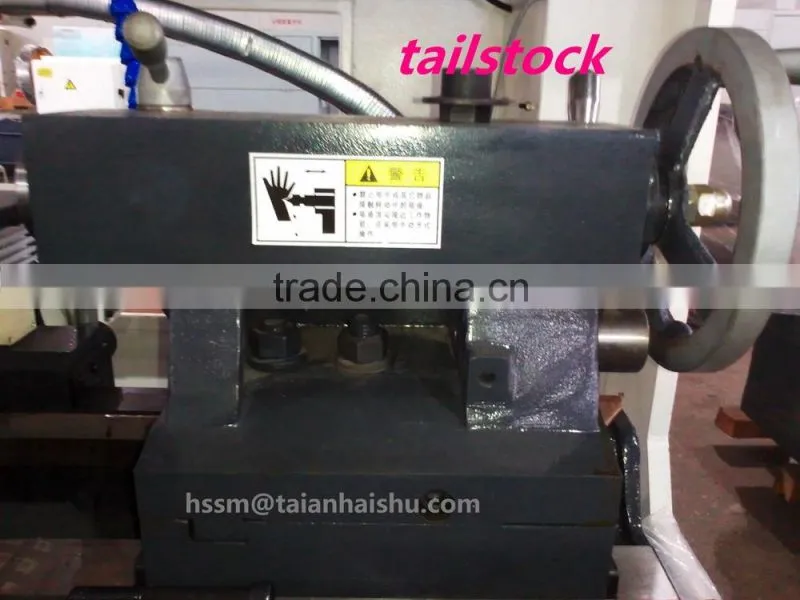

tailstock |
Dia. of tailstock quill(mm) |
Φ60 |
Tailstock quill stroke(mm) |
120 |
|
Taper of tailstock quill |
MT4 |
|
|

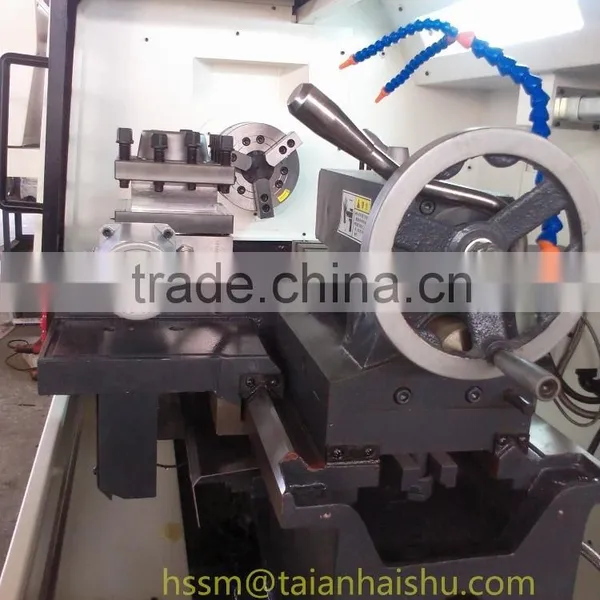

Tool post |
Standard accessories |
4 station electric tool |
Opinional accessories |
Horizontal 6,8-station electric turret or gang-type tool camier |
|
Repeat positioning accuracy(mm) |
0.008 |
|
Section of turning tool(mm) |
20*20/25*25 |
|
|
Size and weight |
The size of the machine (length*width*height)(mm) |
2150*1450*1650 |
Net weight of the machine(kg) |
1800 |
2. Main features
1.) big swim over the bed dia (Φ420mm)
2.) high spindle speed (3000rpm)
3.) main motor power is 5.5kw
4.) horizontal flat bed structure
5.) theguide rail width (335mm)
GUARANTEE AND AFTER-SALE SERVICES:
1.one year guarantee for whole machine .
2.24-hours technical support by E-mail or telephone
3.User-friendly English software or Russian or Spanish, Users manuals and Detailed Videos/CD
4.Provide extra accessories for the machine
5.Also provide service of make program according to your drawings
6.Customized or special design is welcome.
If you are interested in cnc lathe machine price CK6136H turning lathe, welcome to leave a message or send the inquiry to understand the details of machine.
