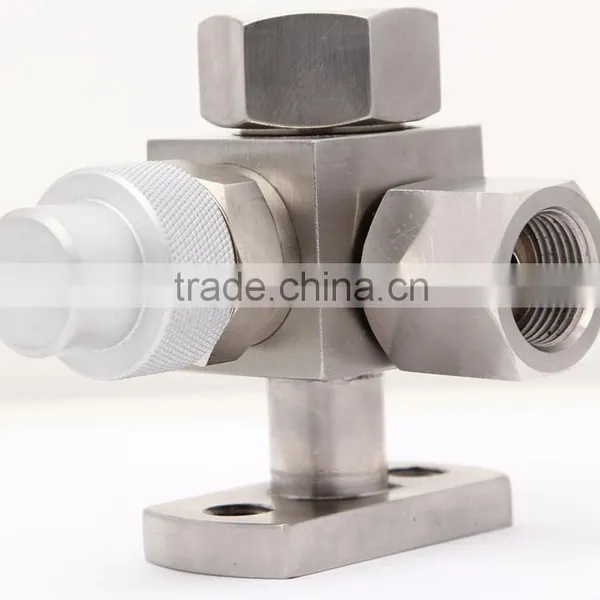

Control And Monitoring The Gas SF6 Insulated Ring Main Unit photo-5

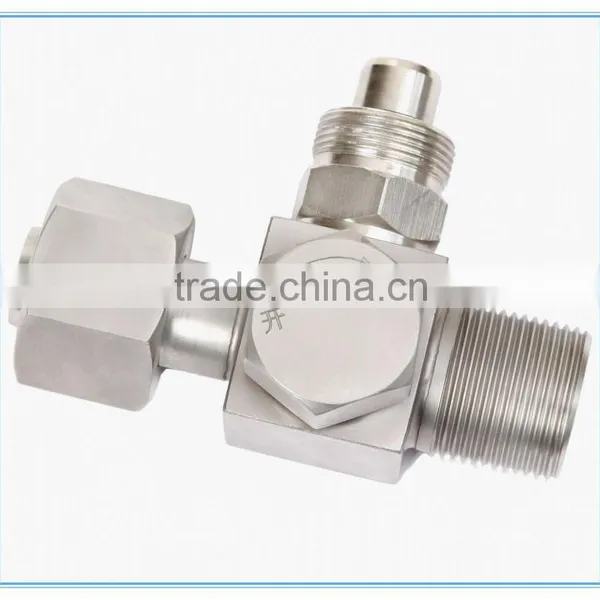

Control And Monitoring The Gas SF6 Insulated Ring Main Unit photo-6
US$ 30 - 60 MOQ: 50 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Shaanxi, China
Brand Name:
YS
Model Number:
YB-63-182
Contact Supplier Request Quote Chat Now
Xian Yuanshun Electrical Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Xi'an
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shaanxi, China
Brand Name YS
Model Number YB-63-182
Theory Voltage Relay
Usage Other
Size Other
Protect Feature Sealed
Contact Load High Power

Product introduction:

Control And Monitoring The Gas SF6 Insulated Ring Main Unit

widely used in high pressure switch electricity and electrical appliances industry.,whose main sensing element is spring tube and bimetallic strip. We’ve learnt advanced technology from the domestic and foreign counterparts,and so the product is certainly with a unique advanced temperature compensation function. This product test and control the high pressure switch and the SF6 gas density in the electrical equipment, ensure the normal operation of the equipment,and prevent sf6 gas from leaking and damaging the equipment and then it can easily protect the equipment.

Main Technical specifications:

range

-0.1—0.9Mpa

Accuracy class

grade 1 when 20℃±1℃,grade 1.5 when -40℃--20℃--60℃

Dimension

the diagram below shows the concept

thread

can supply goods according to customers requirements>

Conditions of usage

temperature:-40-60℃Atmospheric pressure: 86-106Kpa.relative humidity:≤95% RH>

Dielectric strength

AC2800V/1min  50HZ

Insulation electric resistance:

>500M

Anti-seismic property

20m/ s2

Protection class

IP65

Shock resistance

30g

Yearly gas leakage rate

<10-15Mpa,m³/s.

Contact capacity

30VA

Maximum working voltage

AC380V



Advantage:

1.we can produce acoording to your requirments,OEM,ODM

2.we can supply ex-factory price as manufacturer,to help you defeat your     opponent.

3.after payment we can deliver to you soon

4.we have ISO9001 certification and patent certification

Feature:

1.Stainless steel shell
2.small volume.
3.Gold-plated contacts

Our service:

1. Your inquiry related to our products or prices will be replied within 24hours.

2. Well-trained and experienced staffs to answer all your enquiries in fluent English.

3. All our products have 1-3years warranties.

4. Offering the support to solve the problem in the application or selling period.

5. Competitive prices based on same quality.

6. Guarantee samples quality same as mass production quality.

7. Any logo accepted, free sample service.

8. Ex-Factory .
