Specifications
1.SF6 gas analyzer/monitoring
2.High quality low price
3.R&D manufacturer
4.OEM/ODM Available
5.Custom Service
Features:
1. SF6 gas analyzer/monitoring in sealed tanks. .
2. Suitable for indoor or outdoor installation
3. AISI304 hermetically sealed stainless steel case
4. AISI316 parts in contact with gas
5. Indicated values and signal outputs independent of installation altitude
Application:
1. Gas Insulated Switchgear (GIS)
2. Gas Insulated Lines (GIL)
3. SF6 circuit breakers
4. Gas insulated busbar systems
Description:

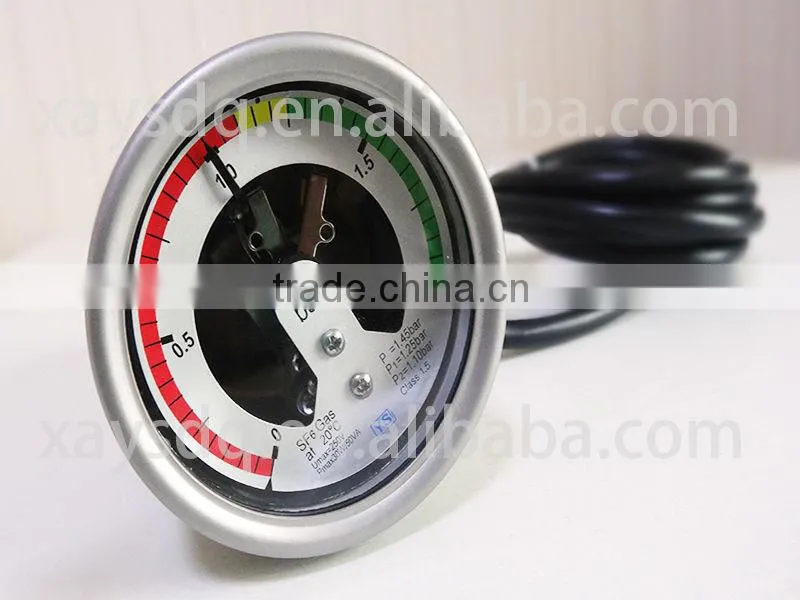

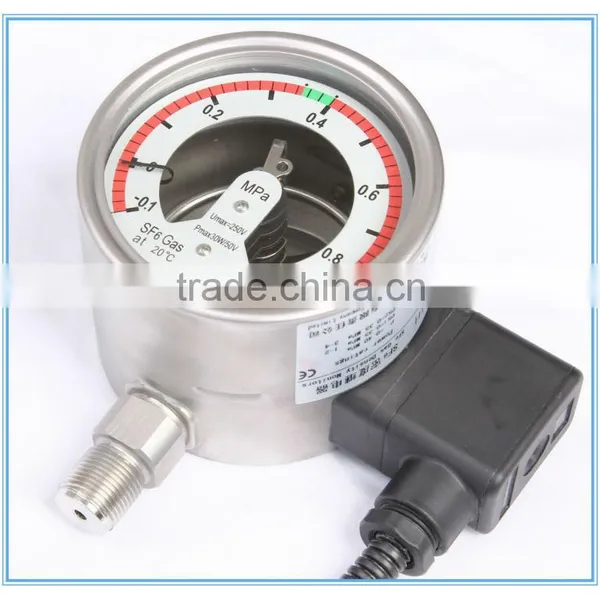

SF6 gas analyzer/monitoring is an economical and reliable way to monitor SF6 densitometer and leakage over a wide temperature range.
These instruments are used to SF6 densitometer in sealed tanks. They are applied to indicate gas density and to provide a signal outputs when the density reaches preset threshold values. They are designed to monitor Medium Voltage systems.
Parameter:
Nominal size: |
63mm, 100mm |
Scale range: |
-0.1 to 0.9 MPa (customizable) |
Accuracy: |
20°C: Class 1.0 or 1.6; -20°C to +60°C: Class 2.5; -30°C to -20°C: Class 3.0 |
Degree of protection: |
IP65 |
Ambient conditions: |
-30°C to +60°C |
Leakage rate: |
< 1*10-9 Pa.m3/s (Helium mass spectrometer) |

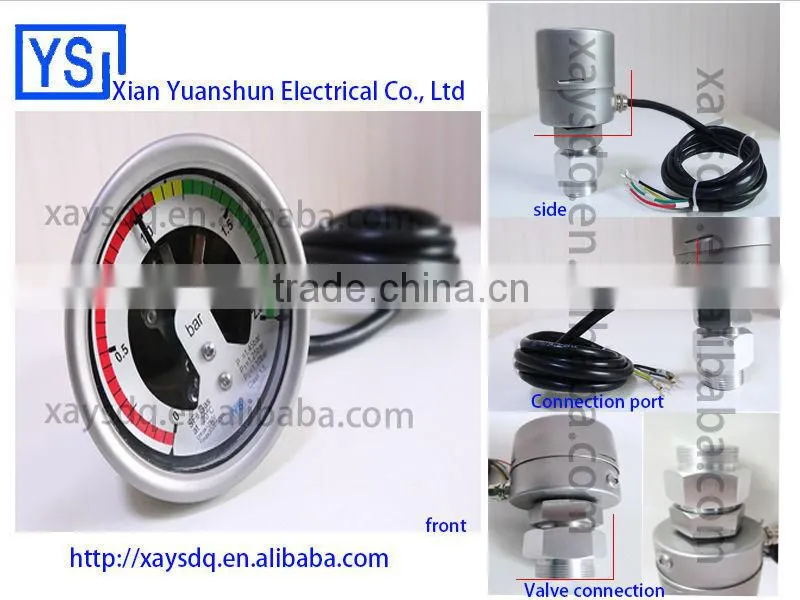

Pressure connector: |
M20*1.5 (customized) |
Location: |
Bottom or back |
Electrical connection: |
Compact pluggable box with M20*1.5 cable gland |
Cable size: |
1.5mm; 2 recommended; 2.5mm maximum |
Insulation properties: |
Insulation resistance >100 MΩ (500V DC); Withstand voltage 2kV, 50/60 Hz 1 min (to case) |
Contact type: |
Pointer driven magnetic snap action signal contacts; 80%Ag, 20%Ni, 10μm Au plated |
Contact ratings: |
30W/50VA, 1A max; 220VDC/380V 50/60Hz max |
Window: |
Safety glass |
Weight: |
1.1kg |
Contact us:
Founded in 2010,Xi’an YuanShun Electrical Co., Ltd is located at the central business district of Economic and Technology Developing Zone, which is the new center of Xi’an City, Shaanxi, China. Xi’an YuanShun Electrical Co., Ltd is a high-tech industry company with intensive technology orientation, which is engaged in development, production, sales and technology service for SF6 gas industry.
