Product introduction:

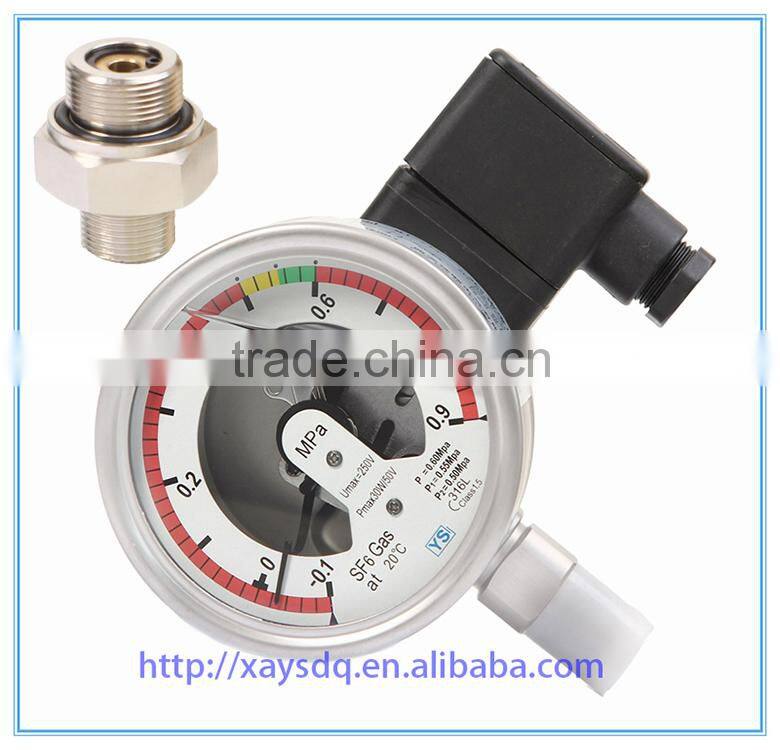

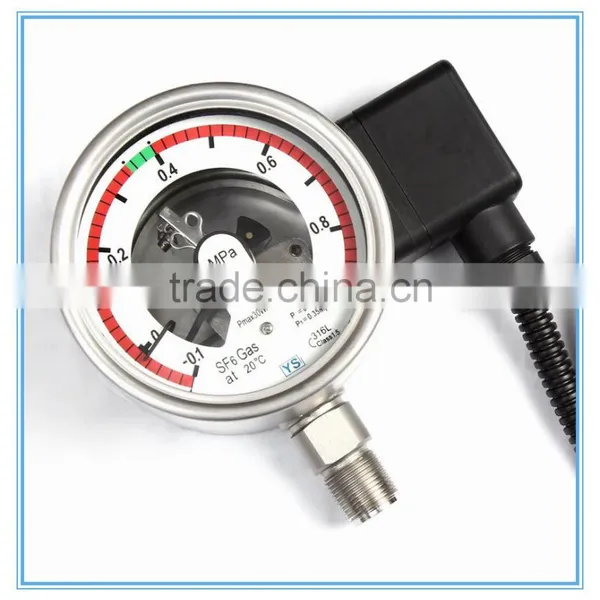

sulfur hexafluoride sf6 pressure gauge A new standard for high accuracy sf6 gauges and controls
widely used in high pressure switch electricity and electrical appliances industry.,whose main sensing element is spring tube and bimetallic strip. We’ve learnt advanced technology from the domestic and foreign counterparts,and so the product is certainly with a unique advanced temperature compensation function. This product test and control the high pressure switch and the SF6 gas density in the electrical equipment, ensure the normal operation of the equipment,and prevent sf6 gas from leaking and damaging the equipment and then it can easily protect the equipment.
Main Technical specifications:
range |
-0.1—0.9Mpa |
Accuracy class |
grade 1 when 20℃±1℃,grade 1.5 when -40℃--20℃--60℃ |
Dimension |
the diagram below shows the concept |
thread |
can supply goods according to customers requirements> |
Conditions of usage |
temperature:-40-60℃Atmospheric pressure: 86-106Kpa.relative humidity:≤95% RH> |
Dielectric strength |
AC2800V/1min 50HZ |
Insulation electric resistance: |
>500M |
Anti-seismic property |
20m/ s2 |
Protection class |
IP65 |
Shock resistance |
30g |
Yearly gas leakage rate |
<10-15Mpa,m³/s. |
Contact capacity |
30VA |
Maximum working voltage |
AC380V |
Advantage:
1.we can produce acoording to your requirments,OEM,ODM
2.we can supply ex-factory price as manufacturer,to help you defeat your opponent.
3.after payment we can deliver to you soon
4.we have ISO9001 certification and patent certification
Feature:
1.sf6 series gas manometer stainless steel sf6 manometer manometer
2. high resolution
3. high quality
Our Services:
1. Your inquiry related to our products or prices will be replied within 24hours.
2. Well-trained and experienced staffs to answer all your enquiries in fluent English.
3. All our products have 1-year warranties.
4. Offering the support to solve the problem in the application or selling period.
5. Competitive prices based on same quality.
6. Guarantee samples quality same as mass production quality
