Product introduction:

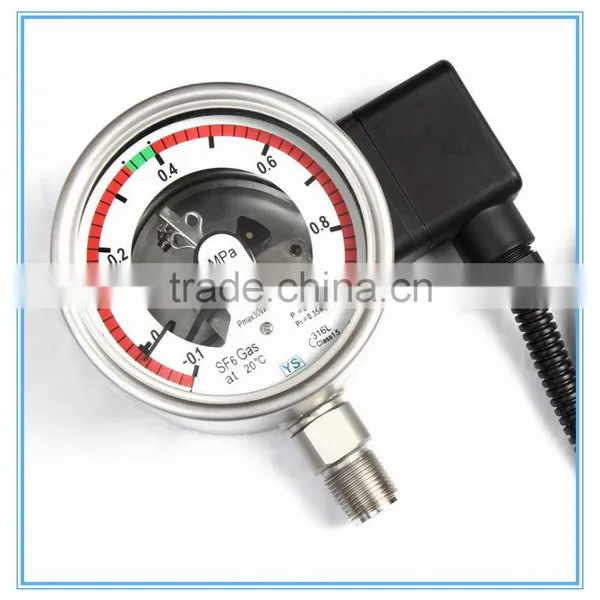

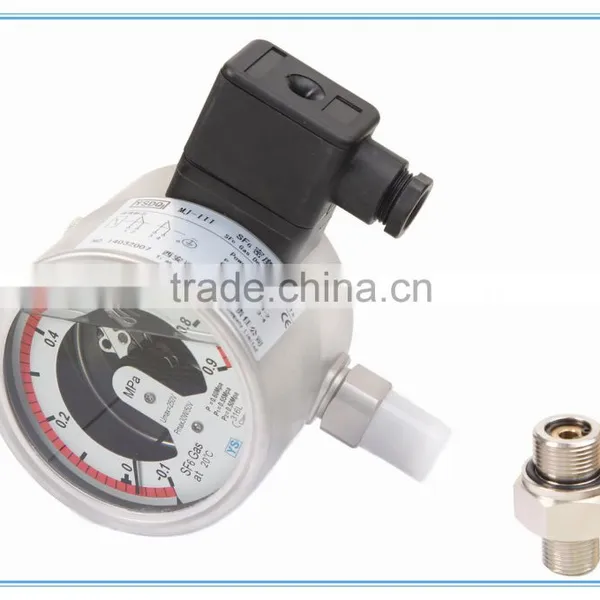

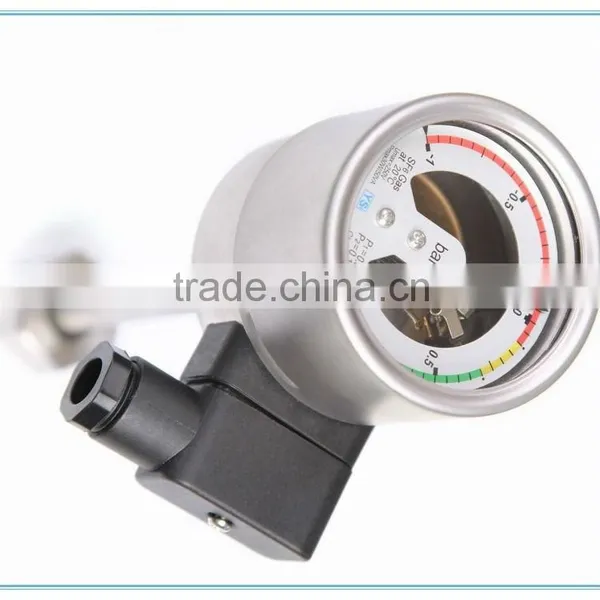

sf6 series stainless steel Gas monitoring device for SF6 gas insulated equipment gas safe device

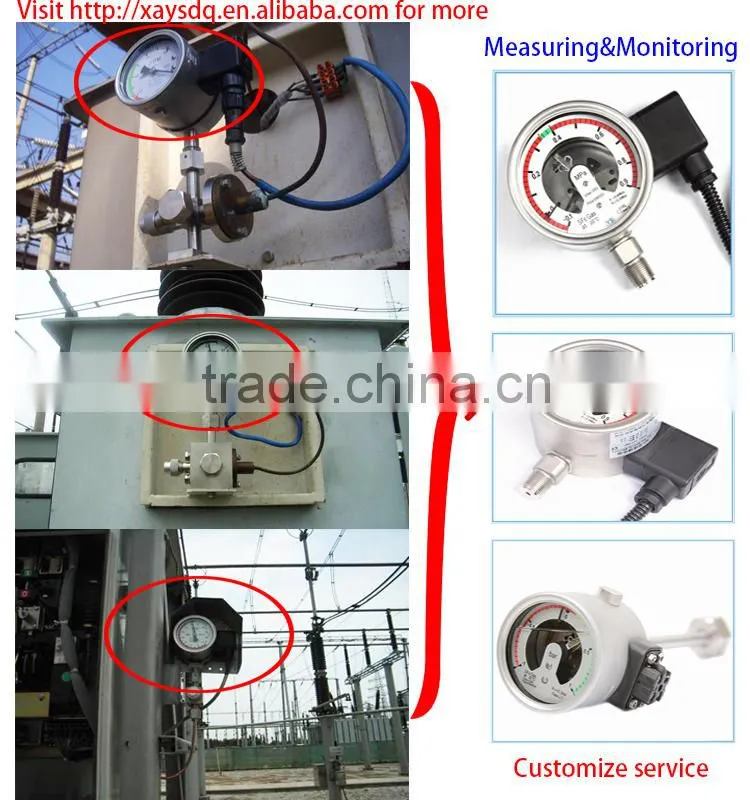

widely used in high pressure switch electricity and electrical appliances industry.,whose main sensing element is spring tube and bimetallic strip. We’ve learnt advanced technology from the domestic and foreign counterparts,and so the product is certainly with a unique advanced temperature compensation function. This product test and control the high pressure switch and the SF6 gas density in the electrical equipment, ensure the normal operation of the equipment,and prevent sf6 gas from leaking and damaging the equipment and then it can easily protect the equipment.
Main Technical specifications:
range |
-0.1—0.9Mpa |
Accuracy class |
grade 1 when 20℃±1℃,grade 1.5 when -40℃--20℃--60℃ |
Dimension |

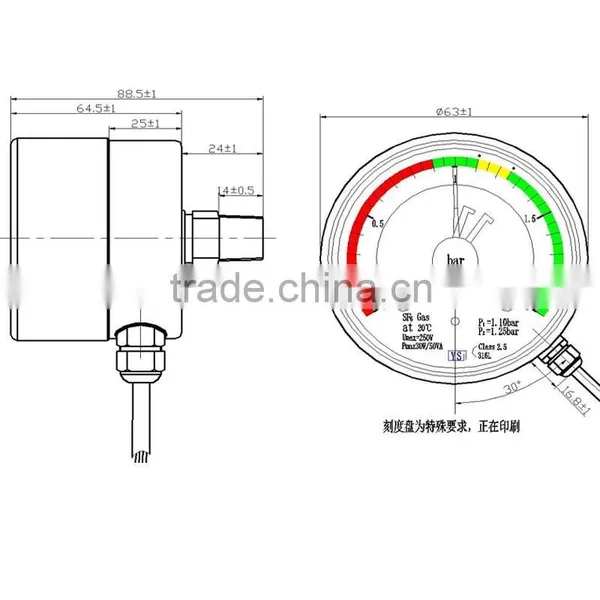

the diagram below shows the concept |
thread |
can supply goods according to customers requirements> |
Conditions of usage |
temperature:-40-60℃Atmospheric pressure: 86-106Kpa.relative humidity:≤95% RH> |
Dielectric strength |
AC2800V/1min 50HZ |
Insulation electric resistance: |
>500M |
Anti-seismic property |
20m/ s2 |
Protection class |
IP65 |
Shock resistance |
30g |
Yearly gas leakage rate |
<10-15Mpa,m³/s. |
Contact capacity |
30VA |
Maximum working voltage |
AC380V |
Advantage:
1.we can produce acoording to your requirments,OEM,ODM
2.we can supply ex-factory price as manufacturer,to help you defeat your opponent.
3.after payment we can deliver to you soon
4.we have ISO9001 certification and patent certification
Feature:
1.Stainless steel shell
2.small volume.
3.Gold-plated contacts
