Advantage
1.Stainless steel shell
2.small volume.
3.Gold-plated contacts
The main technical parameters
1. The measuring range: -1-1.0 bar. (pabs value 0-2.0 bar)
2. The level of accuracy: within the scope of rated working pressure level1.5, the rest of the magnitude of 2.5.
3. Joint thread: M14x1. 5. G3/4 (can supply according to user requirements).
4. atmospheric pressure 86-106 Kpa.
5.The relative humidity: 95 or less.
6. Protection grade: IP65
7. Impact resistance: 200 m/s2
8. Shock resistance: 10 m/s2
9. Insulation strength: AC2000V / 1 min 50 HZ.
10. Insulation resistance: greater than 500 M
11. In a flat rate: no greater than 10-15 Mpa. m 3/s.
Contact capacity: 20 VA. The maximum working voltage: AC 280 V
Introduction

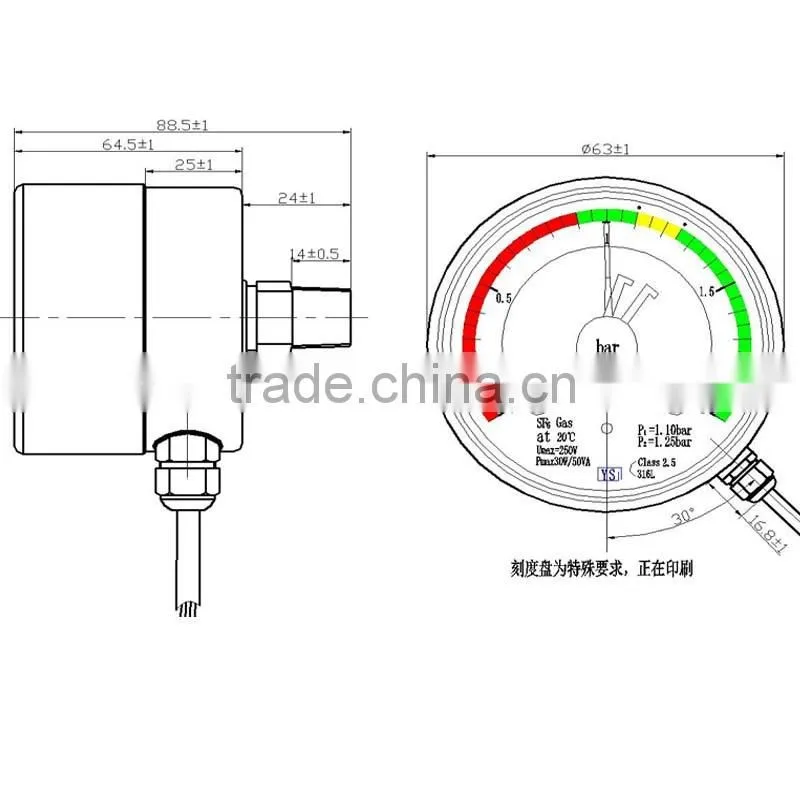

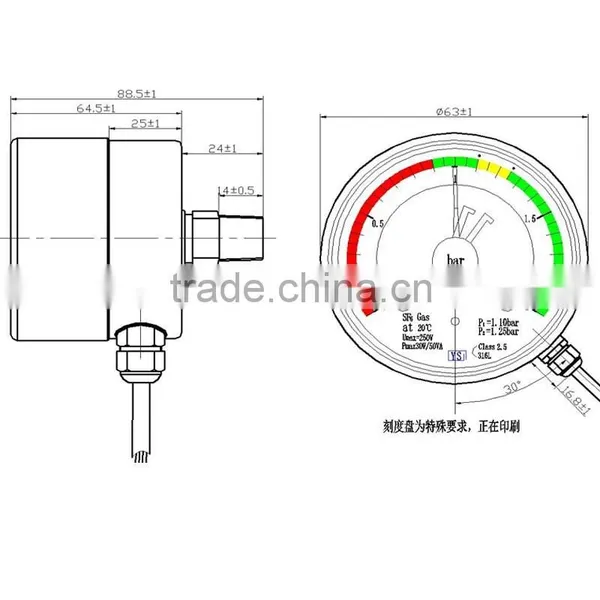

Y63 - ZMK pointer type SF6 density monitor is based on the change of SF6 gas pressure, make the bourdon tube short displacement amplification mechanism rotates, by acting on the dial pointer, pointer setting good signal output contact.
When filling the rated pressure of SF6 gas, SF6 gas is influenced by temperature rise and fall, pressure value such as the rise and fall to the contact pressure set point.Instrument signal alarm, prompt staff SF6 gas pressure inside the equipment to exceed bid
Specification
Y63 - ZMK pointer type SF6 density monitor is widely used in high pressure switch electrical appliances industry.The product drawing in the same industry at home and abroad advanced technology, unique structure principle.The product is in high school internal SF6 gas pressure switch, electrical equipment testing and control, to ensure normal operation of equipment, prevent damage of SF6 gas leak equipment, thus to protect equipment
Advantage
1.Stainless steel shell
2.small volume.
3.Gold-plated contacts
