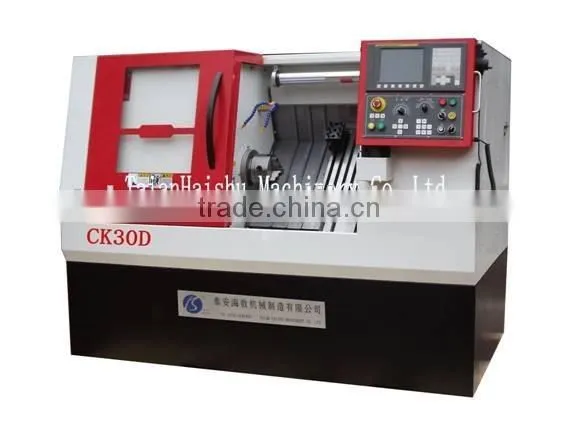

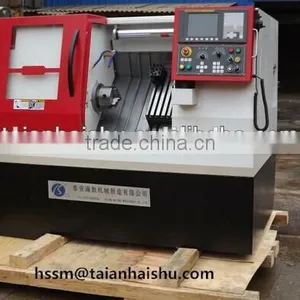

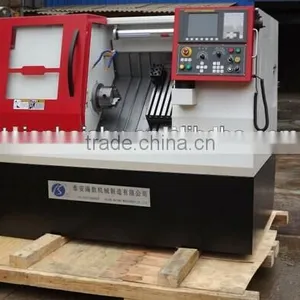

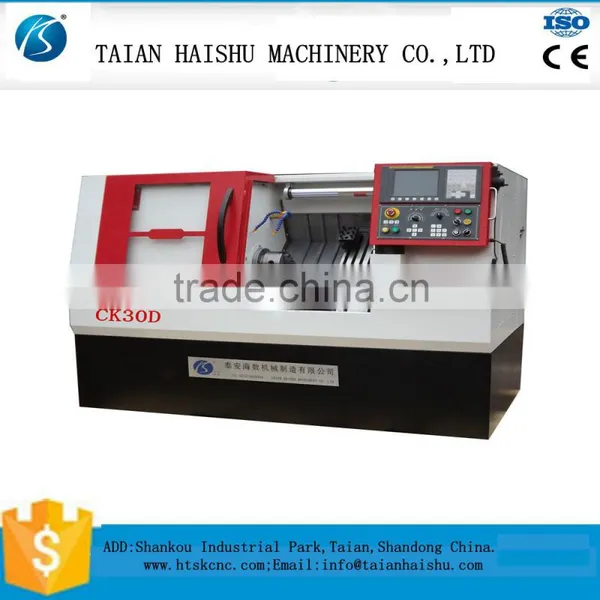

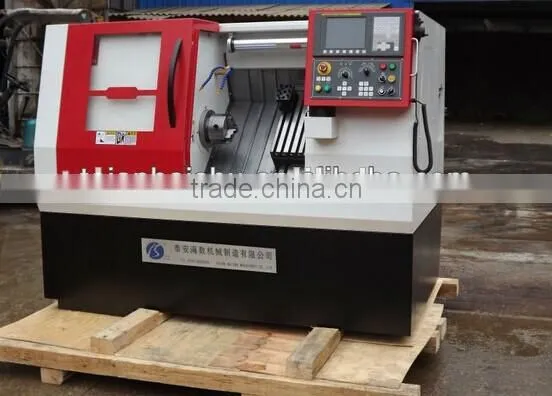

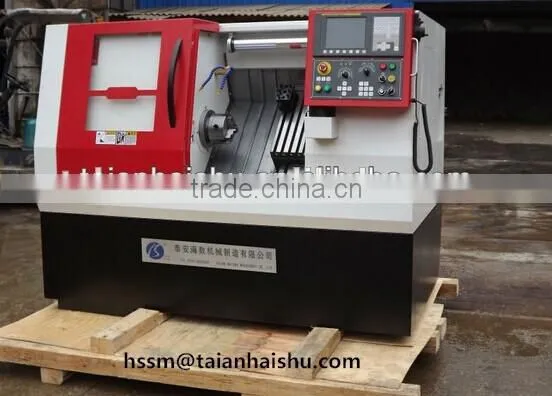

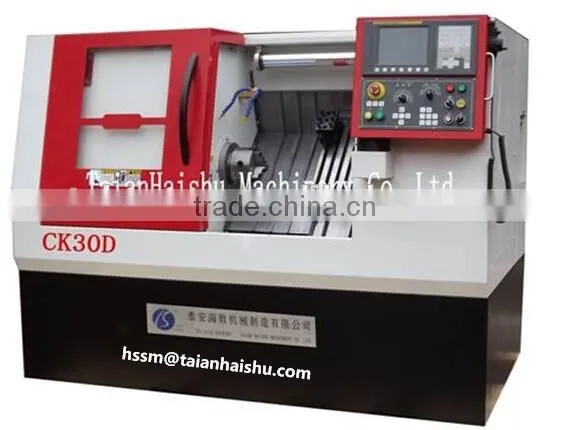

CK30D Slant Bed CNC Lathe

CK30D Slant Bed CNC Lathe thumbnail-1
CK30D Slant Bed CNC Lathe thumbnail-2
CK30D Slant Bed CNC Lathe thumbnail-3
CK30D Slant Bed CNC Lathe thumbnail-4
CK30D Slant Bed CNC Lathe thumbnail-5
CK30D Slant Bed CNC Lathe thumbnail-6
CK30D Slant Bed CNC Lathe photo-1
CK30D Slant Bed CNC Lathe photo-2
CK30D Slant Bed CNC Lathe photo-3
CK30D Slant Bed CNC Lathe photo-4
CK30D Slant Bed CNC Lathe photo-5
CK30D Slant Bed CNC Lathe photo-6
US$ 1 - 1 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Horizontal
CNC or Not:
CNC
Contact Supplier Request Quote Chat Now
Taian Haishu Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Horizontal
CNC or Not CNC
Automatic Grade Automatic
Max. Swing Diameter 300
Place of Origin Shandong, China
Brand Name haishu
Model Number CK30D
Voltage 380V
Power(W) 4KW
Dimension(L*W*H) Workpiece Size
Weight 1000kg
Certification CE Certificate
After-sales Service Provided Engineers available to service machinery overseas

characteristics
45 º inclined bed, double linear guide rail, high accuracy, good dimensional stability;

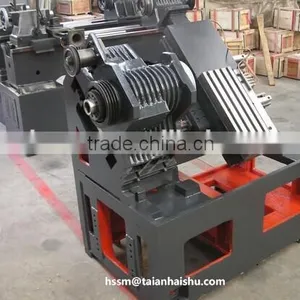

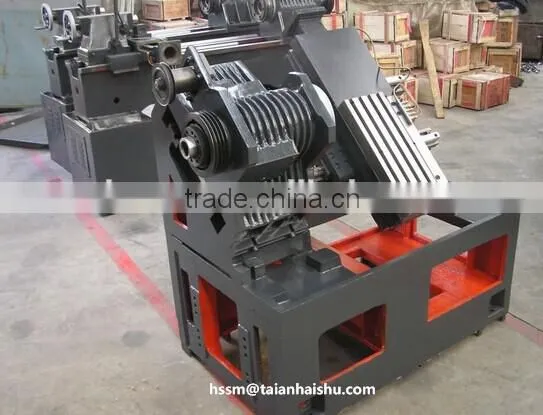

The overall structure of integrated design and manufacturing foot of the bed, bed foot of the bed is made of resin sand casting, aging, ultra-audio frequency hardened rails for precision grinding, precision to maintain good;
The overall foot of the bed with high stability and rigidity, machine rigidity; fully enclosed protective structure, the machine in water, oil, dust and safety performance is much better than similar products;
Tndependent spindle structure while matching precision class P4 spindle bearings, spindle speed, thermal deformation;
X-axis maximum stroke(280 mm), use knife row, high work efficiency.
use

This machine is suitable for high accuracy and conformance requirements for small and medium size disk parts.

Technical parameters

Item

Technical parameters

Maximum turning diameter over bed

f 300 mm

Maximum turning diameter over skateboard

f 120 mm

X-axis maximum stroke

280 mm

Z-axis maximum stroke

320 mm

Rail width

325mm

Spindle head model

ISOA2-5 / MT5#

Spindle bore

f41mm

Speed

5000r/m

Chuck

f160 mm

Turret type

knife row

Tool shank specifications

20 mm×20 mm

Knife block center high

61 mm

Main motor power

4 kw

X-axis motor power

5 Nm

Z-axis motor power

7.5 Nm

Foot of the bed to spindle center height

935 mm

Oversize

1105×680×1194mm

Net weight

1000 kg









Company Information

       Number Taian Hai Machinery Manufacturing Co., Ltd. (Tai'an City Hite machinery manufacturing limited liability company) is manufacturing of CNC machine tools and engine testing equipment professional enterprises, scientific research, production and marketing of high-tech enterprises. The company's CNC machine tools and test equipment division division, has passed the ISO9001: 2008 international quality management system certification and the European CE certification. Strong technical force, has a group of young and promising engaged in CNC machine tools and test equipment design and manufacturing, electrical design and application of numerical control technology and software development professional and technical personnel. The use of advanced two-dimensional and three-dimensional CAD computer-aided design, product innovation, equipment, numerical control, management information, has become the domestic industry technology leader.
    CNC machine tools are: CNC lathes, turning centers, machining centers, CNC lathes instrumentation, CNC lathes, CNC machine tools, automatic feeding CNC lathes, lathes, automatic lathes, mini lathes, woodworking lathes, woodworking tools, small machine tools, CNC light machine tools, machine tools, precision machine tools. Lathe-ray machines, precision lathes, small CNC lathes, CNC lathes and other economy.
Test equipment are: injection pump test bench, injector test bench, common rail injector test bench, common rail system test bench and so on.
      Number Taian Hai Machinery Manufacturing Co. NC machine model is complete, it can be customized according to customer all kinds of special tools workpiece

Our Services

Thank you for your interest in our production of CNC machine tool products, in order to protect your legal rights, from you for purchasing our CNC machine tools worries, we like all of our customers to purchase CNC machine tool products, on product quality and after-sales service to make the following committed to:
1, three bags a year, life-long service
2, free training operators
3, receiving customer feedback, provide solutions within 24 hours
4, CNC equipment parts are used in the world and China's well-known brand manufacturers
5, the company exports are the new equipment CNC equipment, packaging before the error, have good debugging, fully meet customer requirements, before allowing shipment

Packaging & Shipping

CNC machine tool exports Packing: Export Packing Machine fumigation
Transportation: If the customer does not have special requirements, CNC machine tools and engine test equipment exports, usually automotive logistics transport to Qingdao port, transport to the nearest port customer specified by ship.

CK30D Slant bed CNC latheCK30D Slant bed CNC latheCK30D Slant bed CNC latheCK30D Slant bed CNC lathe

Certifications

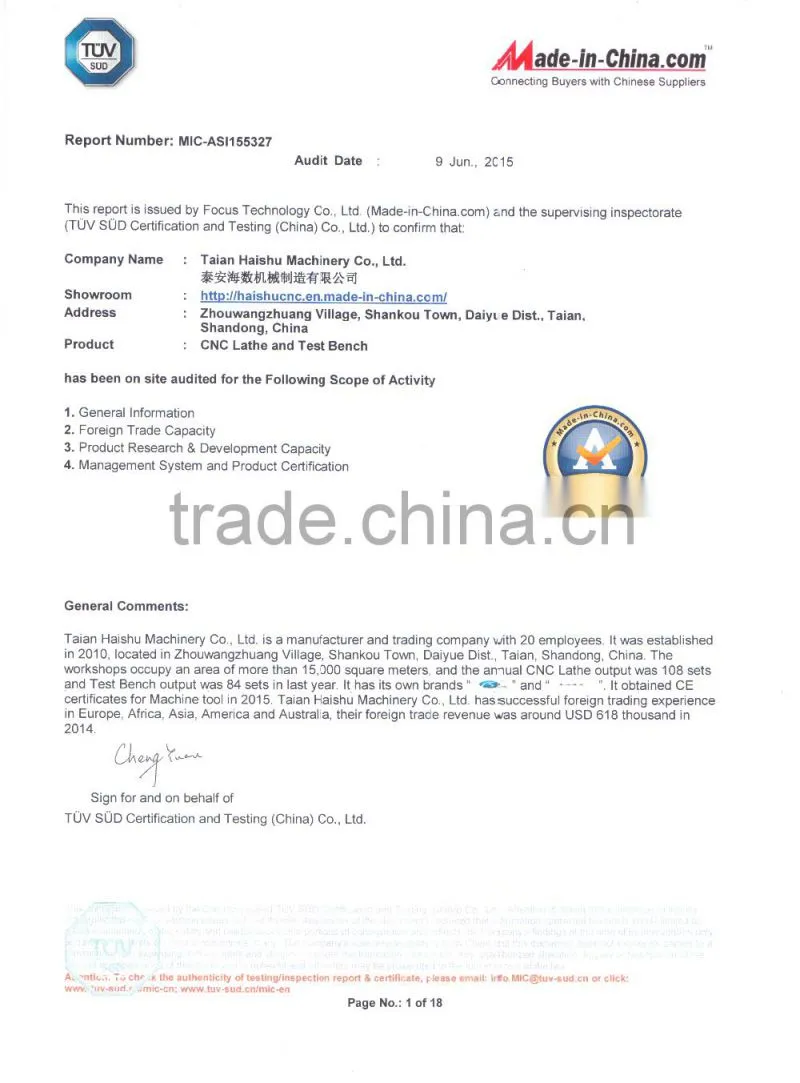

Tuv certification:

CK30D Slant bed CNC lathe

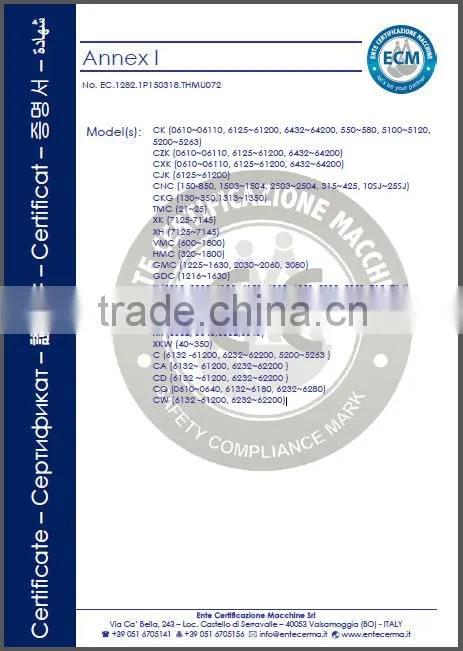

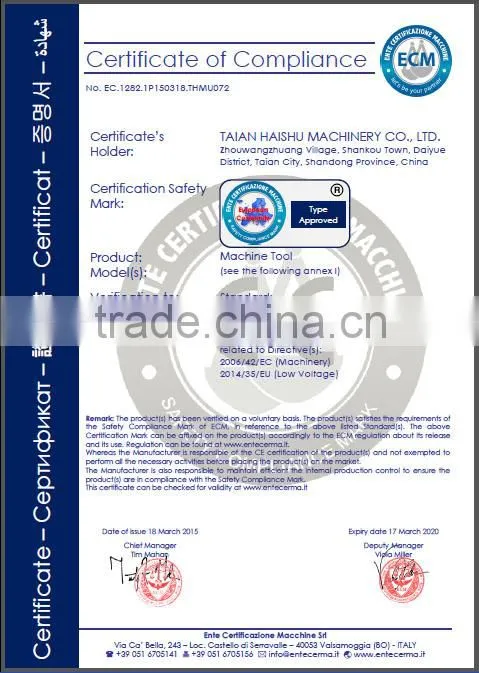

CE certification:

CK30D Slant bed CNC latheCK30D Slant bed CNC lathe
