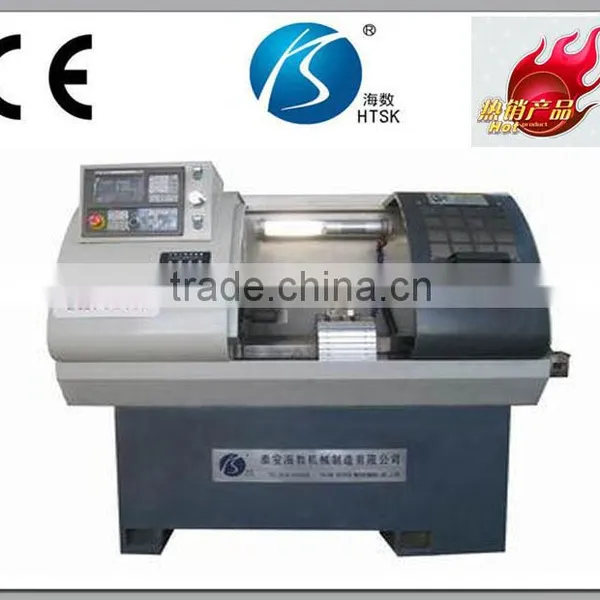

Automatic lathes CK0660AChina CNC lathes
1. Specifications
Items |
|
Specifications |
|||
CK0660A |
CK0680A |
CK06100A |
CK06110A |
||
Max.swing over bed |
mm |
Φ300 |
|||
Max.swing over carriage |
mm |
Φ150 |
|||
Max. length of work piece |
mm |
220 |
|||
Spindle head form |
|
A2-5 |
|||
Spindle bore |
mm |
Φ70 |
Φ90 |
Φ110 |
Φ120 |
Trombone bore |
mm |
Φ60 |
Φ80 |
Φ100 |
Φ110 |
Guide rail width |
mm |
260 |
300 |
300 |
300 |
Guide rail length |
mm |
840 |
880 |
880 |
880 |
X / Z axis repeat positioning accuracy |
mm |
0.012/0.013 |
|||
X-axis max motion traveling schedule |
mm |
320 |
|||
Z- axis max motion traveling schedule |
mm |
220 |
|||
X-axis fast moving speed |
m/min |
<P ter="" ,="">5 |
|||
2. Characteristics
2.1 The base of the machine tool, lathe bed guide rail structure reasonable wide, berth box adopts thermal type structure design, the more effectively improve the stability of the machine and the axis of stability.
2.2 Before and after the spindle bearings are used high precision ball bearing, contact with diagonal work good stability, high load bearing.
2.3 The wear-resisting cast iron casting, guide rail and the super audio quenching and fine grinding, to ensure the long-term stability of machining precision and service life.
2.4 X axis and Z axis screw all use of four point one-like for structure design, ensure guide in the work more smoothly and not by lateral force influence, in processing products when dragging plate cutting big and small dragging plate more smoothly and vibrate resistance, it is more convenient to maintain better.
2.5 Z to guide with double swallow tail the fully closed structure design, in machine tool can work better for protection of guide rail, top end before and after sit move more stable and convenient and quick.
2.6 Spindle flange connection plate adopts the international standard design, ordinary three claws chuck and hydraulic chuck installation more convenient and quick.
3. Application
The machine can be widely used for valve/plumbing/auto parts and other metal parts to the finishing. multiple products a circular/end face/hole/cutting/any cone/sphere and various metric system of automatic thread cutting.
4,Standard configuration
system:GSK928
Pneumatic chuck
Row knives
5,Optional configuration
system:GSK980,KND,Siemens,Fanuc
Manual or Power tailstock
Electric turret
CNC machine tool exports Packing: Export Packing Machine fumigation
Transportation: If the customer does not have special requirements, CNC machine tools and engine test equipment exports, usually automotive logistics transport to Qingdao port, transport to the nearest port customer specified by ship.
Tuv certification:
CE certification:
