Small GSK CNC Lathe Manufacturer High Precision CK6432A

FOB Price

US$ 4,000 - 8,000 / Set

1 Set(Min. Order)

Port QINGDAO
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Horizontal
CNC or Not	CNC	Automatic Grade	Automatic
Max. Swing Diameter	360	Place of Origin	Shandong, China
Brand Name	HaiShu	Model Number	CK6432A
Voltage	380V	Power(W)	4KW
Dimension(LWH)	1600 mm1100 mm1550mm	Weight	1450kg
Certification	CE Standard	After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Product Name	Small GSK CNC Lathe Manufacturer High Precision CK6432A
Tailstock quill taper	MT4
Tailstock quill maximum moving distance	100mm
Maximum workpiece swing diameter over bed	Φ360mm
Dragged on board the maximum workpiece swing diameter	Φ160mm
Maximum length of workpiece	450mm
Range of spindle speeds	150-2500rpm
Spindle bore diameter	Φ60mm

2. main features

(1) Spindle bore increase (φ60mm), increase the diameter of the workpiece rotation (with φ200mm chuck). Cost-effective: the configuration of 36 lathe, 32 lathe price.

(2) Cast iron as a whole foot of the bed, the bed weight, strong rigidity, good stability.

(3) Independent spindle frequency stepless speed regulation, low noise, small vibration, high precision machining, energy saving and environmental protection.

(4) Spindle with high speed and high precision bearings, processing performance and stability, good surface finish, high processing efficiency.

(5) Bed rail VHF hardening, saddle and skateboard rail combines surface laminating, to reduce friction loss, prevent crawling, and can be micro feed.

3. Configuration

(1) Control system optional: Guangshu's GSK, Beijing's KND, Germany's Siemens, Japan's Fanuc, etc..

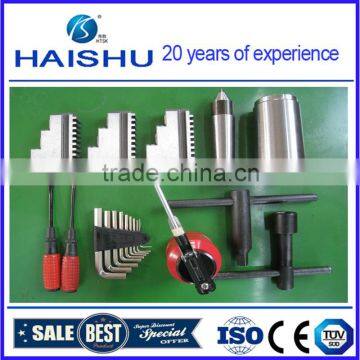

(2) Chuck optional: manual, pneumatic or hydraulic chuck, manual or pneumatic collet first class.

(3) Tailstock optional: manual, pneumatic, hydraulic.

(4) Turret optional: Vertical four horizontal six rows of knives and so on.

(5) Lubrication configuration: automatic oil lubrication system.

4. Uses

Suitable for steel, non-ferrous metal precision machining and rapid processing.

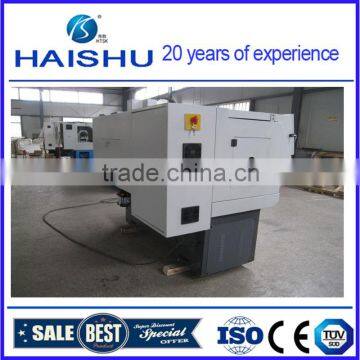

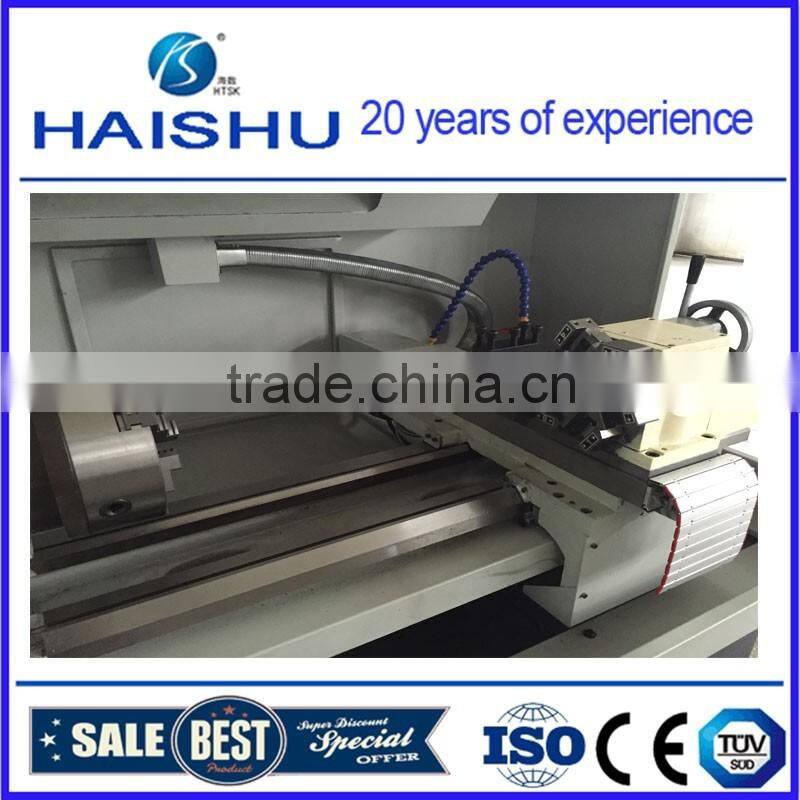

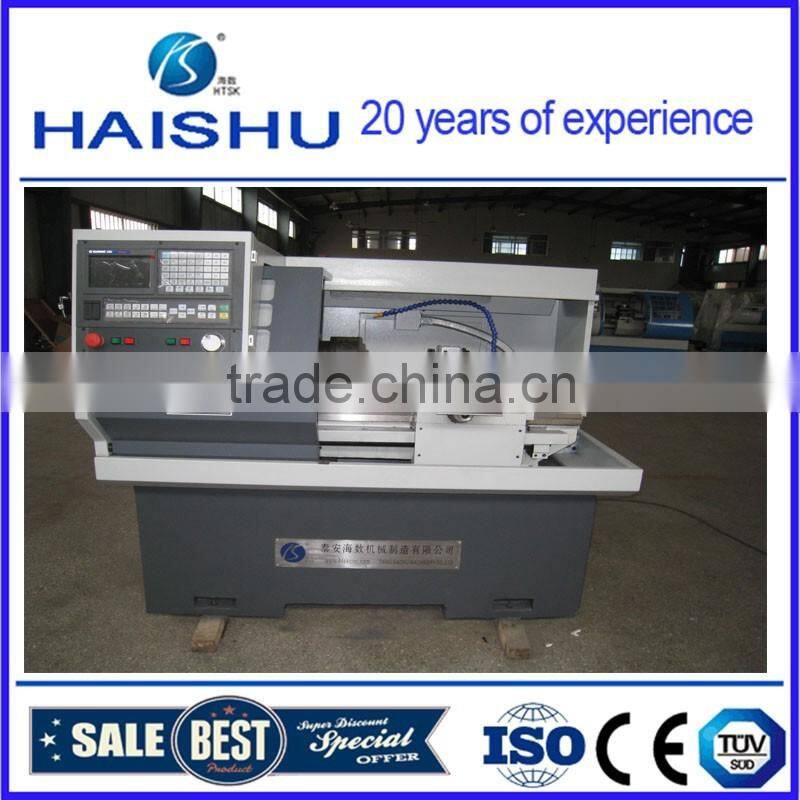

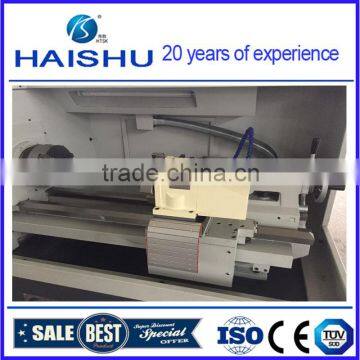

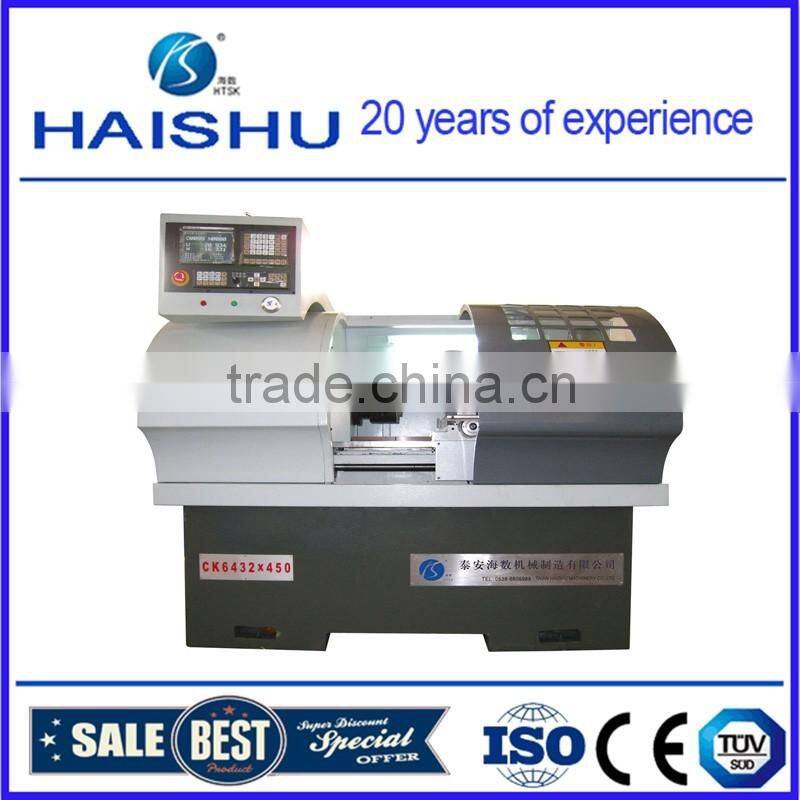

Products Show

Our Service

Thank you for your interest in our production of CNC machine tool products, in order to protect your legal rights, from you for purchasing our CNC machine tools worries, we like all of our customers to purchase CNC machine tool products, on product quality and after-sales service to make the following committed to:

1, three bags a year, life-long service
2, free training operators

3, receiving customer feedback, provide solutions within 24 hours
4, CNC equipment parts are used in the world and China's well-known brand manufacturers
5, the company exports are the new equipment CNC equipment, packaging before the error, have good debugging, fully meet customer requirements, before allowing shipment

Our Company

Factory

Our Factory

Workshop

Our Workshop

Warehouse

Our Warehouse

Team

Our Team

Packing & Delivery

Packing Details : Packing, solid bicycle saddle, 50pcs/carton

Delivery Details : 3-30 days after order of Solid bicycle tire tubes

1. Export standard packing

2. The key parts protection

3. Dust-proof waterproof packaging

4. Aluminium alloy edge

5. The big tonnage forklift

6. Car transport

Customer Photo

FAQ

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 7-15 days if the goods are in stock. or it is 15-30 days if the goods are not in stock, it is according to quantity.

Q: What is your terms of payment ?

A:After signing the contract, the down payment 30% deposit, before delivery to pay up.
