Specifications
heat exchanger stainless plate1 High efficient stainless plate
2 No leakage stainless plate
3 Easy cleaning plate
4 ISO 900

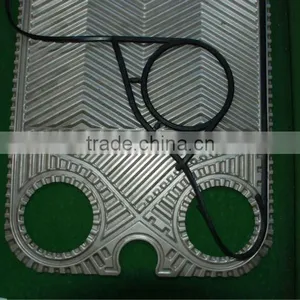

Gasketed Plate Heat Exchanger Plate ss316
Each plate is provided with a gasket, which seals the flow gaps to atmosphere and the media from one another. The plate package is mounted in a rack consisting of a fixed number of plates. Two pressure plates clamp this package together with tie rods. Single pass and multi-pass arrangements are standard with a surface area of up 1500m2 in one unit. Pure counter flow is employed to achieve maximum possible heat transfer.
Materials
Plate material |
Applicable fluid |
Stainless steel(AlSl304,AlSl316L) |
Purified water, river water, edible oil, mineral oil |
Titanium and Ti-Pd |
Sea water, salt water, salt chemicals |
20Cr, Rs-2, SMO254 |
Dilute sulphuric acid, dilute aqueous, solution of salt chemicals, lnorganic solution |
Nickel |
High temperature and high concentration of caustic soda |
HASTELLOY (C276,D205,b2G) Alloy |
Concentrated sulfuric acid,hydrochloric acid and phosphoric acid |
Black lead |
Hydrochloric acid,medium-concentration sulfuric acid,phosphoric acid and fluoric acid |
The Specification type of plate heat exchanger

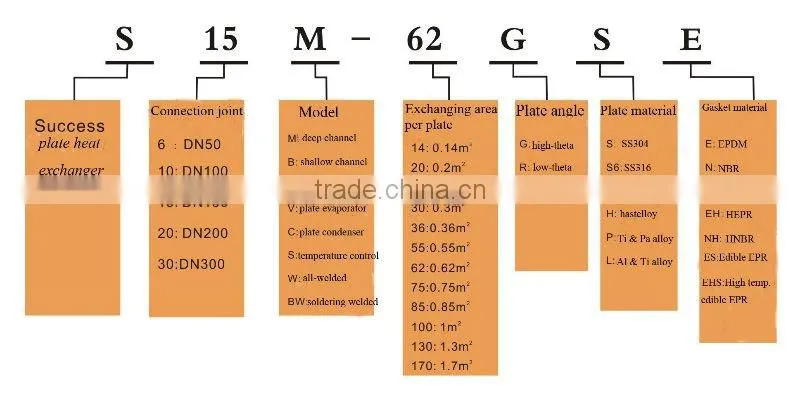

1. Model Denotation Method of SUCCESS plate heat exchanger
2.Main technical data of heat exchanger
3.Configuration diagram of plate heat exchanger
The characteristics of plate heat exchanger
1.The structure of plate heat exchanger is more compact compared with other heat exchangers.
2.Heat transfer under differential temperature of 1 °C temperature with designed pressure up to 2.5MPa and the maximum handling capacity up to 3533m3 per hour is available.
3.Rich plate shape, a variety of angles and groove depth and a different combination forms a ideal heat exchanger which is suitable for working conditions.
4.One step forming plate with high-precision mold to reduce physical stress & improve plate’s uniformity and extend service life .
5.Reasonable flow guide plate designed to avoid the deposit plate and improve the heat transmission coefficient up to 9000W per m2.K.
6.Different material such as Stainless steel , titanium, Hastelloy, or other special alloy plate are available to meet the requirements of various working conditions.
7.Plate is easy to inspect and to manually clean. It can be cleaned by counter-current
washing in many cases. Daily cleaning of the plate is not time consuming and does not need the professionals.
8.Free paste type to reduce operation and maintenance costs, easy maintenance.
9.The heat exchange can be designed in many types from two fluid media with single countercurrent to three or more fluid media with multi current, through the changing of flow type or increasing the flow passage. Therefore more suitable solutions can be selected by designers to meet different technical requirements.
10.Economy, Its high heat transfer coefficient, easy installation and maintenance make the initial investment and operation and maintenance costs greatly reduced.
