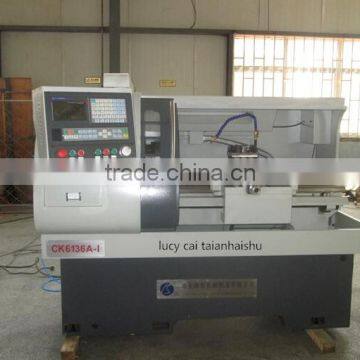

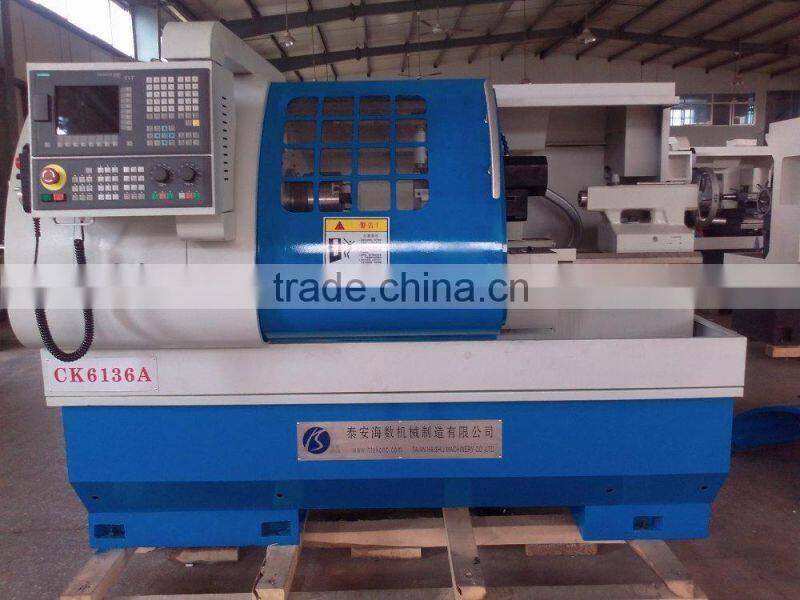

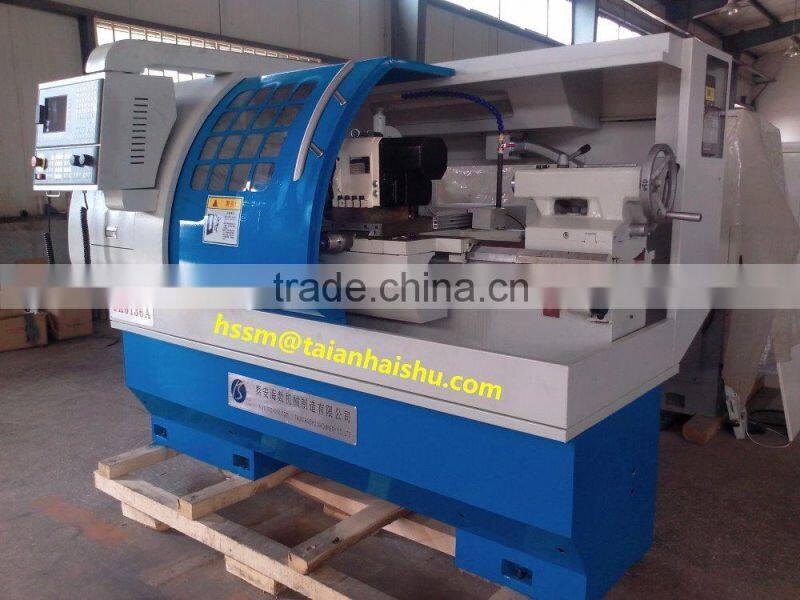

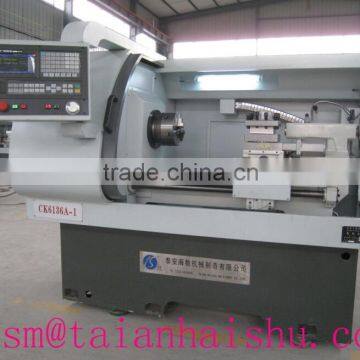

horizontal lathe CK6136A lathe machine price
technical paramater
Item |
Project name |
Technical paramaters |
|
CK6136A | |||
technical specifications |
Max.swiming over the bed dia. (mm) |
Φ360 |
|
Max.swiming over pallet(mm) |
Φ245 |
||
Max.the workpiece length(mm) |
750/1000 |
||
|
Main transmission |
Main transmission form |
Independent spindle, stepless frequency conversion timing |
|
Number of spindle speeds |
stepless |
||
Range of spindle speed(r/min) |
200~2500 |
||
Spindle centering axial taper |
MT6 |
||
Chuck size(mm) |
Φ200/Φ250 |
||
The nose type |
No.6, A2 |
||
Spindle bore(mm) |
60mm |
||
Main motor power(kw) |
5.5kw |
||
|
Feed system |
Turret maximum stroke(mm) |
X - axis: 260 Z - axis:750 |
|
Fast-moving feed(mm/min) |
X - axis:6000 Z - axis:8000 |
||
Repeat positioning accuracy(mm) |
X - axis:0.01 Z - axis:0.015 |
||
Workpiece accuracy |
IT6-IT7 |
||
Workpiece surface roughness |
Ra1.6 |
||
|
tailstock |
Dia. of tailstock quill(mm) |
Φ60 |
|
Tailstock quill stroke(mm) |
120 |
||
Taper of tailstock quill |
MT4 |
||
|
Tool post |
Standard accessories |
4 station electric tool |
|
Opinional accessories |
6 tool post or 8 tool post |
||
Repeat positioning accuracy(mm) |
0.008 |
||
Section of turning tool(mm) |
20*20 |
||
|
Size and weight |
The size of the machine (length*width*height)(mm) |
2150*1450*1650 |
|
Net weight of the machine(kg) |
1800 |
||
standard configuration
1.CNC system :GSK928
2. 4-position tools
3.Automatic lubrication pump
4. Manual 3-jaw chuck
5.Manual tailstock
olant system, lighten system
8.operation manual

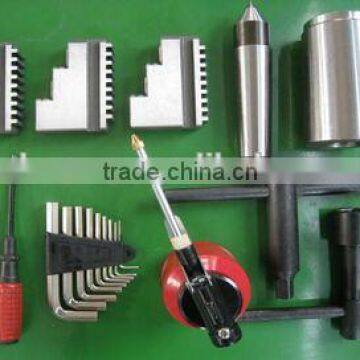

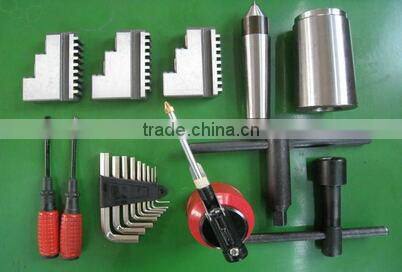

9.unit tools box
10.Voltage:3 phase 380v 50HZ(If you need other voltage ,please tell me in advance)
optional configuration
hydraulic chuck/tailstock
pneumatic chuck/tailstock
automatic bar feeder
slant bed
change voltage 215/220/415v

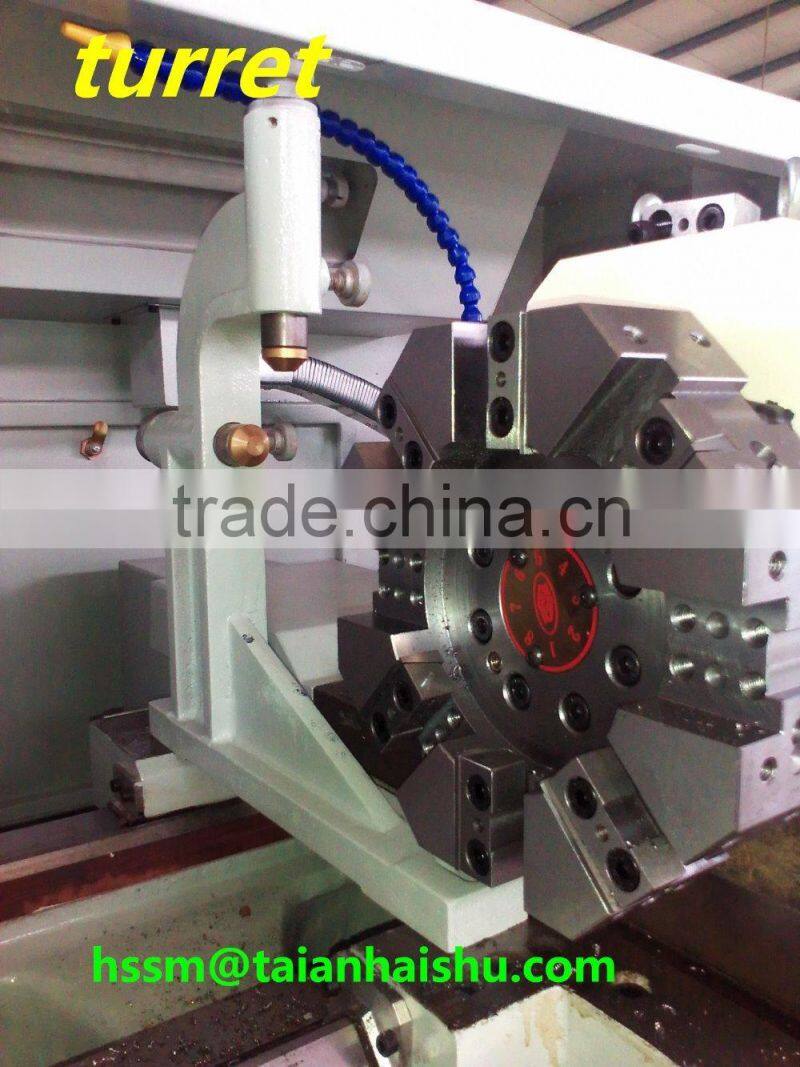

6/8 stations turret
GUARANTEE AND AFTER-SALE SERVICES:
1.one year guarantee for whole machine .
2.24-hours technical support by E-mail or telephone
3.User-friendly English software or Russian or Spanish, Users manuals and Detailed Videos/CD
4.Provide extra accessories for the machine
5.Also provide service of make program according to your drawings
6.Customized or special design is OK.
If you are interested in horizontal lathe CK6136A lathe machine price , welcome to leave a message or send the inquiry to understand the details of machine.
