Home > Products > CNC Machine Tool > CXK32 Machinery Industrial Parts Tools PH2 Screwdriver Bits

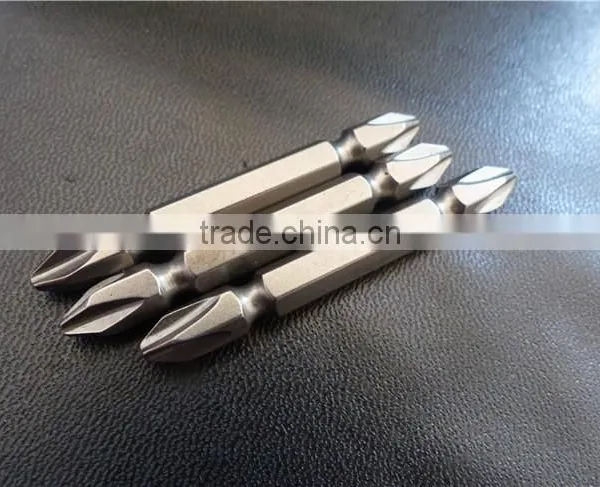

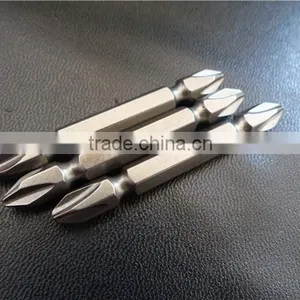

CXK32 Machinery Industrial Parts Tools PH2 Screwdriver Bits
US$ 18,600 - 18,600
/ Set
1 Set(Min. Order)
- QingDao China
You May Like
-
Global After-sales CXF-W40 Cnc Lathe With Turning Polygon Machine
-
Cheap Price CXF-W50 CNC Lathe Machine for Polygons,hexagon
-
Factory Price CXF-W40 CNC Polygon Lathe Machine for Hardware Tools
-
New Condition Factory Price CXF-W40 CNC Lathe Machine for Screwdriver Bit
-
CXF-W50 Hexagon Milling Machine,automatic Lathe
-
Bluetoothcnc Brand New CXF-W40 Cnc Lathe With Turning Polygon Machine
Product Details
| Condition | New | Type | Horizontal | |
| CNC or Not | CNC | Automatic Grade | Automatic | |
| Max. Swing Diameter | 200mm | Place of Origin | Shandong, China | |
| Brand Name | BLUETOOTHCNC | Model Number | CXF-W50 | |
| Voltage | 380V | Power(W) | 2.2KW | |
| Dimension(L*W*H) | 1400X1050X1700mm | Weight | 2000KGS | |
| Certification | ISO9001:2008 | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

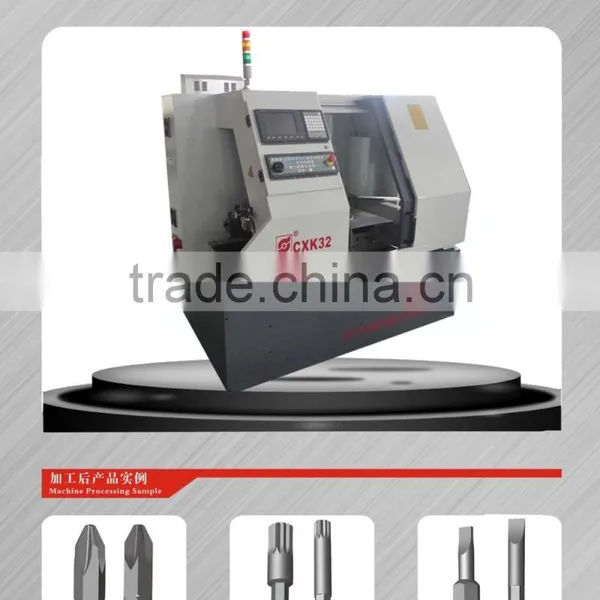

CXK32 CNC screwdriver machine lathe for turning bits
CXK32 CNC screwdriver machine lathe for PH or PZ bits can finish turning,milling etc much more process by once clamping on the one end of the bit.
advantage:
A) CNC turning&milling machine for bit integrate turning, milling, drilling, and other multi - pass process in one, one worker can operate 4-6 sets even more, save much cost for company.
B) CNC turning&milling machine for bit have high efficient, 8-12pcs/min.
C) CNC turning&milling machine for bit have more Multi-function,can produce: Phillips,Flat,Torx, Pozidriv,Squre,Hexagonal etc.
| Items | UNIT | Main techinical data |
|---|---|---|
| Item No. | mm | CXK32 |
| Control spindle | mm | Servo drive and motor |
| Max.chuck | mm | 32mm |
| Processing efficiency | pcs/min | 12pcs/min |
| Motor fot X/Z axis | 6N.M servo moto | |
| Rapid traverse X/Z axis. | m/min | 15m/min |
| Max.cutter head speed | rpm | 3000rpm |
| X/Z axis screw | ball screw | |
| X/Z axis guide rail | Linear ball guide | |
| Motor power of servo apindle | kw | 2.2KW 380V/50HZ |
| Positioning accuracy | mm | X/Z:0.015mm |
| Repeated Positioning accuracy | mm | X/Z:0.01mm |
| NC system | Siemens/Xindai | |
| Total weight | kgs | 1000kgs |
| Dimensions | mm | 1400X1050X1700mm |
| |
