Home > Transportation > Forklifts & Parts > Forklift > 1400kg 2-Stage Wide Legs 3300mm Electric Pallet Stacker CDD14-920

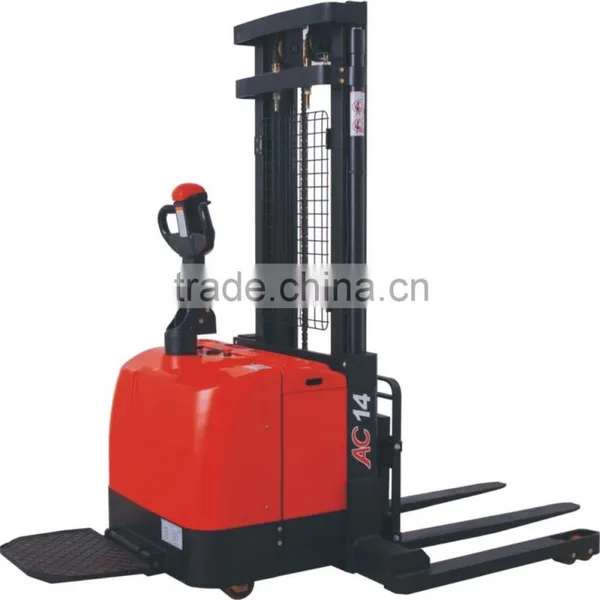

1400kg 2-Stage Wide Legs 3300mm Electric Pallet Stacker CDD14-920
US$ 3,000 - 7,000
MOQ: 2 Pieces
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Jiangsu, China
Brand Name:
Yi-Lift
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghi
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
1600kg Full Free 3-Stage 5300mm AC Control Electric Pallet Stacker CDD16-350US$ 3,000 - 5,000MOQ: 2 Pieces -
1600kg Full Free 3-Stage Narrow Legs 4500mm Electric Pallet Stacker CDD16-950US$ 3,000 - 7,000MOQ: 2 Pieces
-
1600kg 2-Stage 3300mm EPS Control Electric Pallet Stacker CDD16-930US$ 3,000 - 6,000MOQ: 2 Pieces
-
Hand Manual Stacker TGT SeriesNegotiableMOQ: 6 Pieces
-
TGT Double Mast Hand StackerNegotiableMOQ: 3 Pieces
Condition
New
Place of Origin
Jiangsu, China
Brand Name
Yi-Lift
Model Number
CDD14-920 series
Type
Powered Pallet Truck
Power Souce
AC Motor
Rated Loading Capacity
1400kg
Max. Lifting Height
3000mm
Min. Lifting Height
55mm
Fork Length
1070mm
Fork Width
1070/100/40mm
Overall Dimensions
2005**1470*1980mm
Certification
ISO9001
After-sales Service Provided
No overseas service provided
1400kg 2-Stage Wide legs 3300mm Electric Pallet Stacker CDD14-920
| Feature | |||
| 1 | Model | CDD14 | |
| 2 | Configuration No. | 920 | |
| 3 | Type | Wide legs | |
| 4 | Mast type | 2-Stage STD | |
| 5 | Load capacity | kg | 1400 |
| 6 | Load center | mm | 600 |
| 7 | Wheel base | mm | 1310 |
| 8 | Operating type | Walkie / Stand On | |
| Wheels | |||
| 9 | Wheels type | PU | |
| 10 | Wheel quantity Driving wheel/Balance wheel/Bearing wheel |
1/2/4 | |
| Dimension | |||
| 11 |
Standard lift height |
mm | 3000 |
| 12 | Lowered fork height | mm | 55 |
| 13 | Fork size(length/width/thickness) | mm | 1070/100/40 |
| 14 | Overall length | mm | 2005/2425 |
| 15 | Overall width | mm | 1470 |
| 16 | Max extend height | mm | 3500 |
| 17 | Mast lowered height | mm | 1980 |
| 18 | Min.Turning radius | mm | 1565/1975 |
| 19 | Min.Aisle width for pallets 800×1200 | mm | 2230/2560 |
| 20 | (1000×1200,1200) Min.Aisle width for pallets 1000×1200 |
mm | 2260/2585 |
| 21 | Min.ground clearance | mm | 50 |
| Performance | |||
| 22 | Travel speed,laden/unladen | km/h | 5/5 |
| 23 | Lift speed,laden/unladen | mm/s | 130/230 |
| 24 | Lowering speed,laden/unladen | mm/s | 130/230 |
| 25 | Gradeability,laden/unladen | % | 5/7 |
| Electrical configuration | |||
| 26 | Drive motor / Lift motor /Steering motor | KW | AC1.5/DC3/DC0.15 |
| 27 | Battery voltage | V | 24 |
| 28 | Battery capacity | Ah | 280 |
| 29 | Brake | Electromagnetic / Regenerative | |
| 30 | Controller | CURTIS 1230 | |
| Weight | |||
| 31 | Battery weight | kg | 235 |
| 32 | Service weight with battery | kg | 1300 |
