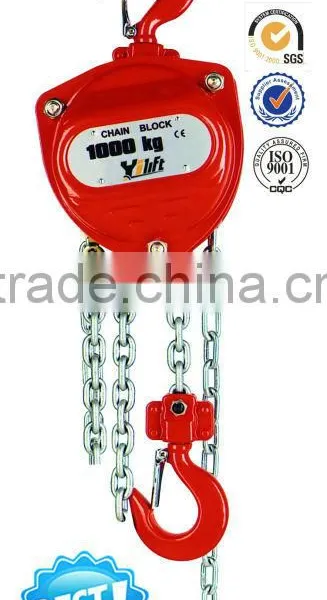

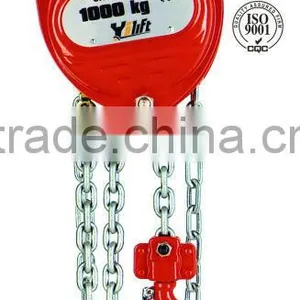

Help CenterManual Hoist CH Series
US$ 10 - 10,000
MOQ: 12 Pieces
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Jiangsu, China
Brand Name:
Yi-Lift
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Air / Hydraulic Service Jacks HF.E SeriesNegotiableMOQ: 10 Units -
Mini Manual Hoist RB SeriesNegotiableMOQ: 30 Pieces
-
Steel Conveyor/roller TableNegotiableMOQ: 1 Piece
-
Hot Sales Lifting Chain Pulley BlockUS$ 10 - 10,000MOQ: 20 Pieces
-
Manual Chain Hoist/Lever HoistUS$ 10 - 10,000MOQ: 10 Pieces
Condition
New
Place of Origin
Jiangsu, China
Brand Name
Yi-Lift
Model Number
CH series
Usage
Drywall Panel Hoist
Power Source
Hand Chain
Sling Type
Chain
Maximum Lifting Weight
250/500/1000/1500/2000/3000/5000/7500/10000kg
Maximum Lifting Height
2.5/3m
Lift Speed
Depends on power
Certification
CE,GS,SGS,ISO
Warranty
2 years
After-sales Service Provided
Engineers available to service machinery overseas
Specifications
buil-in standard ball bearing-
-
- meets or exceeds all industrial standards including EN and ASME/ANSI B30.21 requirements.
- Built-in standard ball bearing ensure easier service than any others.
- Two independent pawls give double safety and make fine adjustments possible.
- High efficiency heat-treated spur gearing provides greater lift with minimum effort.
- Overload protection are available as option.
- High quality load chain made in Japan.
- Conforms to CE safety standard.
-
Model CH25CH50CH100CH150CH200CH300ACH300BCH500CH750CH1000Capacity (kg)250500100015002000300030005000750010000Standard lift (m)2.52.52.52.52.533333Load chain falls 1111112234Load chain (mm)¦µ4x12¦µ5x15¦µ6x18¦µ7x21¦µ8x24¦µ10x28¦µ7x21¦µ9x27¦µ9x27¦µ9x27Effort force (N)235240250265335372290360365380Net weight (kg)6.21112.517.819.5352941.36278.5
Note: Specification and materials are subject to change without notice.
