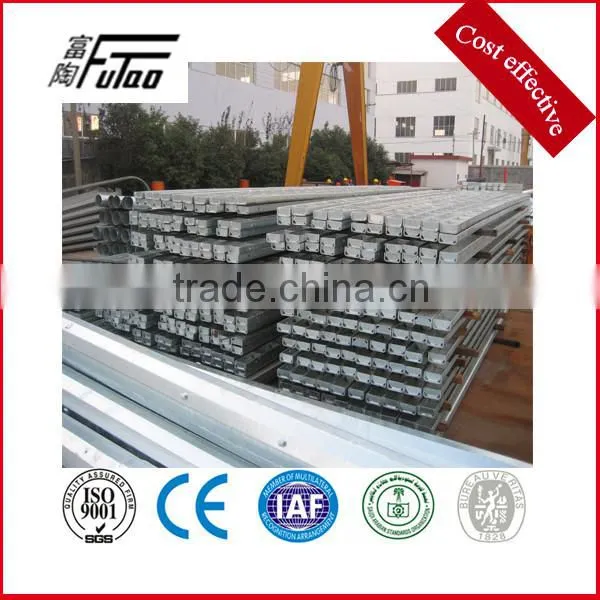

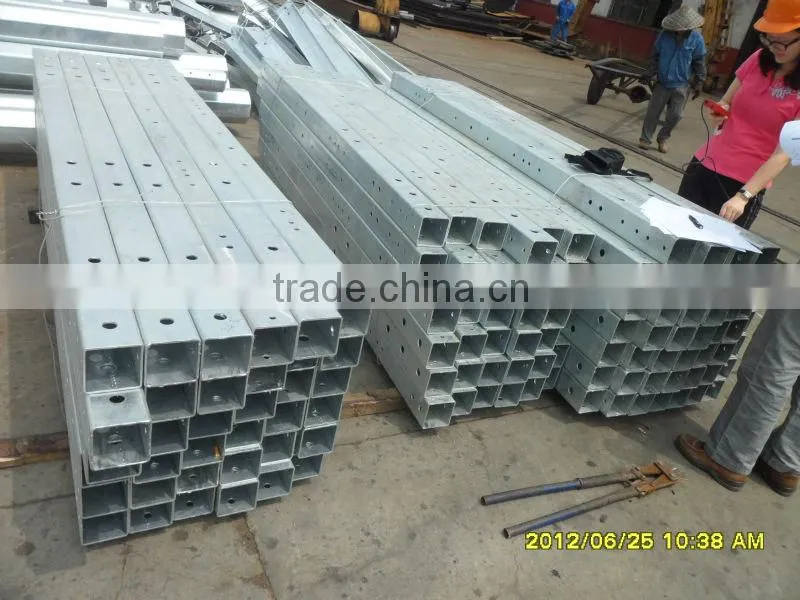

HDG Steel Brackets

US$ 540 - 940 MOQ: 10 Metric Tons

Key Specifications

Place of Origin:

Jiangsu, China

Brand Name:

Model Number:

FT-JG-001

Yixing Futao Metal Structural Unit Co., Ltd.

5Yrs

Payment & Shipping

Payment Methods:

Port of Shipment:

FOB shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Jiangsu, China

Brand Name FT

Model Number FT-JG-001

Material Other, Steel, Hot roll Steel Q235,345,A36,GR50

Specifications

structural steel brackets
1.13years experience
2. ISO and CE certification
3. Tolerance: +/-0.10mm

structural steel brackets information:

Product Name	GB/T 3091 Q195-Q235 hot dip galvanized round erw welded carbon structural bracket
Size	DN	1/2-14"
	Wall Thickness	0.6-12mm. SCH40,STD,XS,SCH80,SCH160,XXS etc.

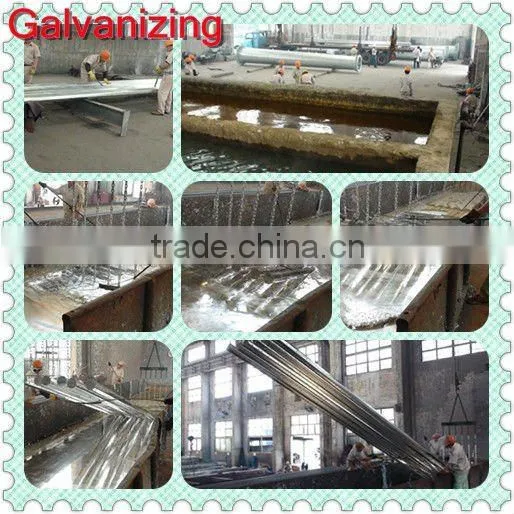

	ZINC COATED	1)Pre-galvanized:50-120g/m2 2)Hot dip galvanized: 200-400g/m2
Steel material	Q195 → Grade B, SS330,SPHC, S185 Q215 → Grade C,CS Type B,SS330, SPHC Q235 → Grade D,SS400,S235JR,S235JO,S235J2 Q345 → SS500,ST52
Standard	ASTM A500 A53,BS1387,BSEN10219,BSEN10210,GB/T3091,GB/T6728,ISO65-1981
Ends	1) Plain 2) Beveled 3) Thread with Coupling or cap
Surface Treatment	1) Bared 2) Black Painted or vanish painting 3) Galvanized 4) With Oiled 5) 3 PE, FBE, corrosion resistant coating
Section shape	Round/Square/Rectangular
Package	1.Big OD:in bulk 2.Small OD:packed by steel strips 3.woven cloth with 7 slats, 4.plastic bags 5.as per customer's option
Application	1)low pressure liquid delivery such as water,gas and oil 2)construction
Loading port	Xingang port, Tianjin, China
Delivery time	7-30 days or upon negotiation

Tolerance for OD and thickness

OD	OD tolerance		Thickness tolerance
OD	Pipe	pipe ends(100mm from the ends)	Thickness tolerance
D=<48.3	+-0.5	----	+-10%t
48.3<D=<273.1	+-1%D	----
273.1<D=<508	+-0.75%D	+2.4 -0.8
D>508	+-1%D or +-10.00, choose the smaller number	+3.2 -0.8

Mechanical properties

GRADE	Yield strength		Tensile Strength (no less than)	Elongation
GRADE	t=<16mm	t>16mm	Tensile Strength (no less than)	D=<168.3	D>168.3
Q195	195	185	315	15	20
Q215A,Q215B	215	205	335
Q235A,Q235B	235	225	370
Q295A,Q295B	295	275	390	13	18
Q345A,Q345B	345	325	470	13	18
