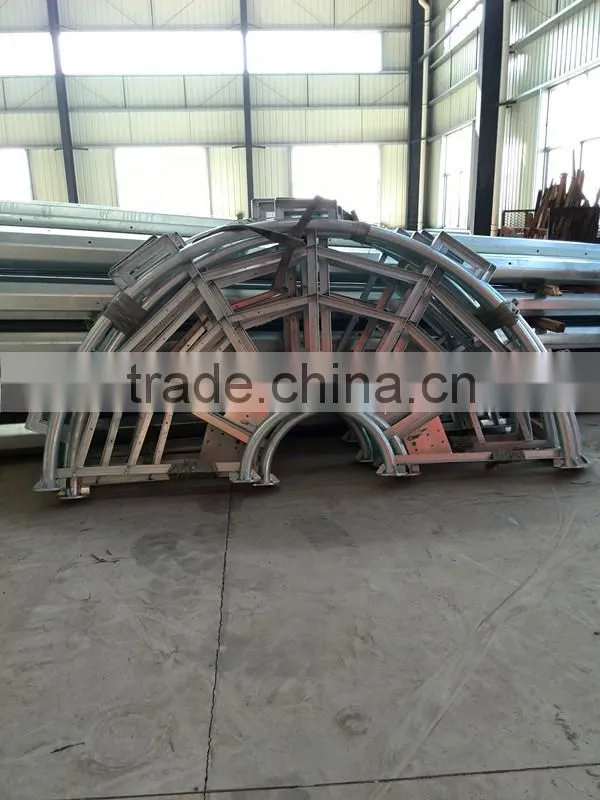

30m steel high mast light pole with 8 lamps

export packing lamp head base on carton. painting poles base on others.

Specifications

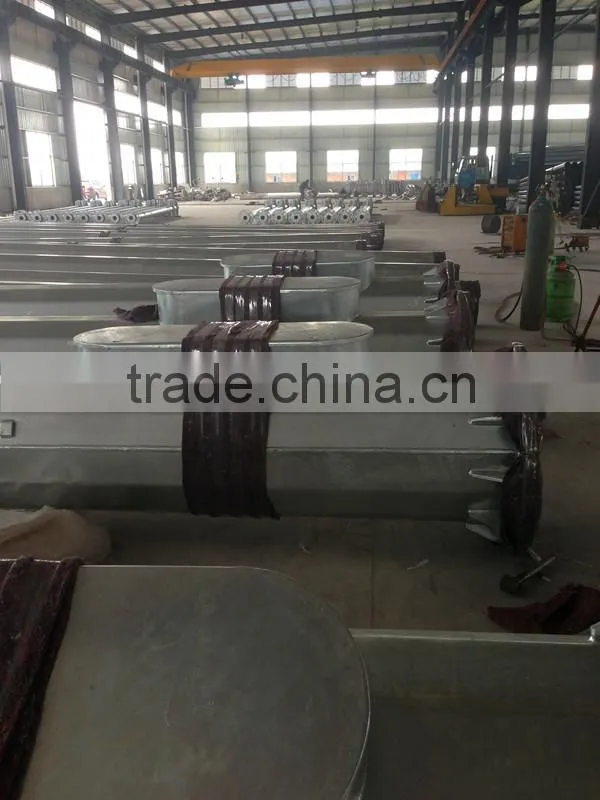

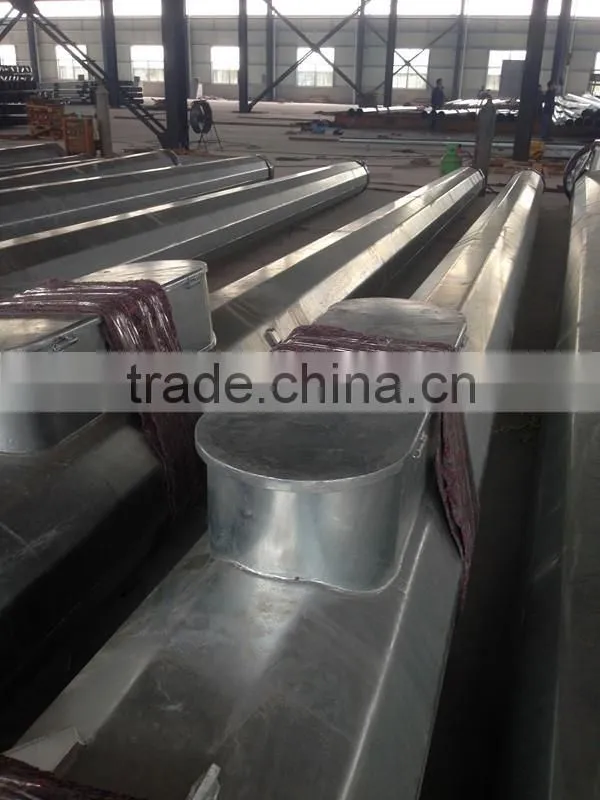

Our poles as normal cover by Mat or straw bale at the top and bottom ,anyway also can following by client required , each 40HC or OT can loading how many pcs will calculation base on the client actually specification and data.

•








  Our Services



  1. Reply your inquiry in 24 working hours.

  2. Experienced staffs answer all your questions in fluent English.

  3. Customized design is available. UEM&UBM are welcomed.

  4. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staff.

  5. Special discount and protection of sales are provided to our distributor.

  6. Professional factory : We are manufacturer, specializing in producing all kinds of steel poles for more than 11 years, competitive with good quantity.

  7. Sample: We can send out sample for test in one week if the order quantity is big enough. But the shipment charges is usually paid by your side, the charges will be rebounded when we have formal order.

  8. As an honest seller, we always use superior raw material, advanced machines, skilled technicians to ensure our products to be finished in high quality and stable feature. Welcome to contact us or visit our company


  Company Information



  Yixing Futao Metal Structural Unit Co. Ltd. is com manded of Jiangsu Futao Group.
  It is located in the beach of scenic and rich Taihu Yixing with good transport service.
  The company is well equipped with advanced manufacturing facilities.
  We own a large-sized numerical control hydraulic pressure folding machine with once folding length 16,000mm and the thickness 2-25mm.
  We also equipped with a series of numerical control conveyor systems of flattening, cutting, folding and auto-welding, we could manufacture all kinds of steel poles and steel towers.
  Our main products: high & medium mast lighting, road lighting, power poles, sight lamps, courtyard lamps, lawn lamps, traffic signal poles, monitor poles, microwave communication poles, etc. Our manufacturing process has been ISO9001 certified and we were honored with the title of the AAA grade certificate of goodwill"

  Presently 95% of our products are far exported to Europe, America, Middle East, and Southeast Asia, and have enjoyed great reputation from our customers,
  So we know the demand of different countries and different customers.
  We are greatly honored to invite you to visit our factory and cheerfully look forward to cooperating with you.


  This is our website,

  FAQ

  1. Payment: (1)Telegraphic Transfer(30% advance payment, balance before shipment

  (2)Telegraphic Transfer(30% advance payment, balance against copy of documents

  (3)Letter of Credit: at sight

  2. Lead Time: 2 weeks after confirmed order

  3. Delivery way: by sea





  Product Description



  • OEM&ODM
  • easy for installion
  • concise design lighting pole
  • high cost performance lighting pole
  • Material :SS400, Q235,A36 (yield strength: 235Pa 24kg/mm2 Tensile Strength: 375-460Pa 38-47kg/mm2
  • (Other Material is Available on Request)
  • ·Hot Dip Galvanized (≥86um)
  • ·Any Color Polyester Powder Coated (≥100 um)
  • ·Taper Conical , Octagonal, Polygon Section
  • ·With demounted bracket design,easy loaded,install,and maintenance
  • ·Theftproof slide lock
  • ·Category:  stadiums

  Technical Specification- Lighting pole sample
  Length			Base Plate		Top	Bottom	Thickness	Order	Unit Price	Amount	Unit Price	Amount
  					Diameter	Diameter			FOB Shanghai		fob shanghai
  									USD		USD
  N.	A(m)	B(m)	Side	Thickness	G(mm)	H(mm)	T(MM)	Q'ty	Hot Dip Gavanized		Powder Coating
  			(mm)	(mm)
  1	5	0.5	300	14	60	115	3
  2	6	0.7	300	14	60	126	3
  3	7	0.7	300	14	60	130	4
  4	8	0.7	300	14	60	140	4
  5	9	0.7	300	14	60	159	4
  6	10	0.7	350	16	60	170	4
  7	11	0.7	350	18	60	176	4
  8	12	0.5	350	18	60	180	4
  9	7	0.7	300	16	76	146	4
  10	8	0.7	300	16	76	156	4
  11	9	0.7	350	18	76	166	4
  12	10	0.7	360	18	76	176	4
  13	11	0.7	360	18	76	180	4
  14	12	0.7	360	18	76	196	4



  Height	From 15 m to 65 m
  Suit for	Airport ,seaport,plaza,stadium ,square,highway,street way etc
  Shape	Conoid ,Multi-pyramidal,Columniform,polygonal or conical
  Material	Usually Q345B/A572, Q235B/A36,As well as Hot rolled coil from Q460 ,ASTM573 GR65, GR50 ,SS400, SS490, to ST52-
  Lamp power	20 W- 1000W (HPS/MH) 220V (+-10%) /50Hz
  Torlance of the dimenstion	+- 2%
  Optical assembly of lighting fixture	IP 65
  Electroshock resistant protective grade	Grade one
  The casing anti-corrosion performance	Class two
  Working atmosphere of lighting fixture	-35 °C~+45 °C
  Surface treatment	Hot dip galvanized Following ASTM A 123, color polyester power or any other standard by client required.
  Joint of Poles	Insert mode,innerflange mode,face to face joint mode
  Design of pole	Against earthquake of 8 grade
  Wind Speed	160 Km/Hour
  Minimum yield strength	355 mpa
  Minimum ultimate tensile strength	490 mpa
  Max ultimate tensile strength	620 mpa
  Standard	ISO 9001
  Length of per section	Within 12m once forming without slip joint
  Welding	We has past flaw testing.Internal and external double welding makes the welding beautiful in shape Welding Standard :AWS ( American Welding Society ) D 1.1
  Thickness	1 mm to 50 mm
  Production Process	Rew material test → Cuttingj →Molding or bending →Welidng (longitudinal )→Dimension verify →Flange welding →Hole drilling →Calibration → Deburr→Galvanization or powder coating ,painting →Recalibration →Thread →Packages
  Packages	Our poles as normal cover by Mat or straw bale at the top and bottom ,anyway also can following by client required , each 40HC or OT can loading how many pcs will calculation base on the client actually specification and data.
  Style	Size and styles are veriable as per customer request













  •

  •
