Help CenterHot Dip Galvanized Outdoor High Mast Light Pole
Related Products
-
30m Steel High Mast Light Pole With 8 LampsUS$ 8,000 - 25,000MOQ: 1 Set -
FT/GG-050 Telescopic Mast LightUS$ 8,000 - 25,000MOQ: 1 Set
-
FT/GG-049 High Mast LightUS$ 8,000 - 25,000MOQ: 5 Sets
-
Galvanized Steel Polygonal High Mast Light PoleUS$ 8,000 - 25,000MOQ: 1 Set
-
25-30meters High Mast Lamp PoleUS$ 8,000 - 25,000MOQ: 1 Set
Specifications
1.hot dip galvanized outdoor high mast light pole2.high quality
3.most reliable
4.low cost
5.new style
Our poles as normal cover by Mat or straw bale at the top and bottom ,anyway also can following by client required , each 40HC or OT can loading how many pcs will calculation base on the client actually specification and data
.
1. Reply your inquiry in 24 working hours.
2. Experienced staffs answer all your questions in fluent English.
3. Customized design is available. UEM&UBM are welcomed.
4. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staff.
5. Special discount and protection of sales are provided to our distributor.
6. Professional factory : We are manufacturer, specializing in producing all kinds of steel poles for more than 11 years, competitive with good quantity.
7. Sample: We can send out sample for test in one week if the order quantity is big enough. But the shipment charges is usually paid by your side, the charges will be rebounded when we have formal order.
8. As an honest seller, we always use superior raw material, advanced machines, skilled technicians to ensure our products to be finished in high quality and stable feature. Welcome to contact us or visit our company
1. Payment:
(1)Telegraphic Transfer(30% advance payment, balance before shipment
(2)Telegraphic Transfer(30% advance payment, balance against copy of documents
(3)Letter of Credit: at sight
2. Lead Time: 2 weeks after confirmed order
3. Delivery way: by sea
-
Height
From 20 m to 45 m
Suit for
Airport ,seaport,plaza,stadium ,square,highway,street way etc
Shape
Conoid ,Multi-pyramidal,Columniform,polygonal or conical
Material
Usually Q345B/A572,minimum yield strength>=345n/mm2
Q235B/A36,minimum yield strength>=235n/mm2
As well as Hot rolled coil from Q460 ,ASTM573 GR65, GR50 ,SS400, SS490, to ST52-
Torlance of dimenstion
+- 2%
Power
400 W- 5000 W
Light panel
Various figure of slection ,material with hot dip galvanization steel frame ,stainless steel ,special aluminum plate
Light Extension
Up to 30 000 m²
Lamp &Luminaire
Projector generally to be applied with safety grade IP65
Luminaire with high pressure sodium lamp of long lift and high lighting efficiency ,or metal halide lamp with high CRI
Lifting system
Lifter fixed in the inner of the pole with lifting speed of 3~5 meter per minute
Euqiped e;ectromagnetism brake and break –proof device,manual opeation applied under power cut
Electric appliance control device
Electric appliance box to be be the holde of the pole ,lifting operation could be 5 meter away from the pole through wire
Time control and light control could be equipped to realize full-load lighting mode and part lighitng mode
Surface treatment
Hot dip galvanized Following ASTM A 123, color polyester power or any other standard by client required.
Joint of Poles
Insert mode,innerflange mode,face to face joint mode .
Design of pole
Against earthquake of 8 grade
Wind Speed
160 Km/Hour
Minimum yield strength
355 mpa
Minimum ultimate tensile strength
490 mpa
Max ultimate tensile strength
620 mpa
Standard
ISO 9001
Length of per section
Within 14m once forming without slip joint
Welding
We has past flaw testing.Internal and external double welding makes the welding beautiful in shape
Welding Standard :AWS ( American Welding Society ) D 1.1
Thickness
1 mm to 30 mm
Production Process
Rew material test → Cuttingj →Molding or bending →Welidng (longitudinal )→Dimension verify →Flange welding →Hole drilling →Calibration → Deburr→Galvanization or powder coating ,painting →Recalibration →Thread →Packages

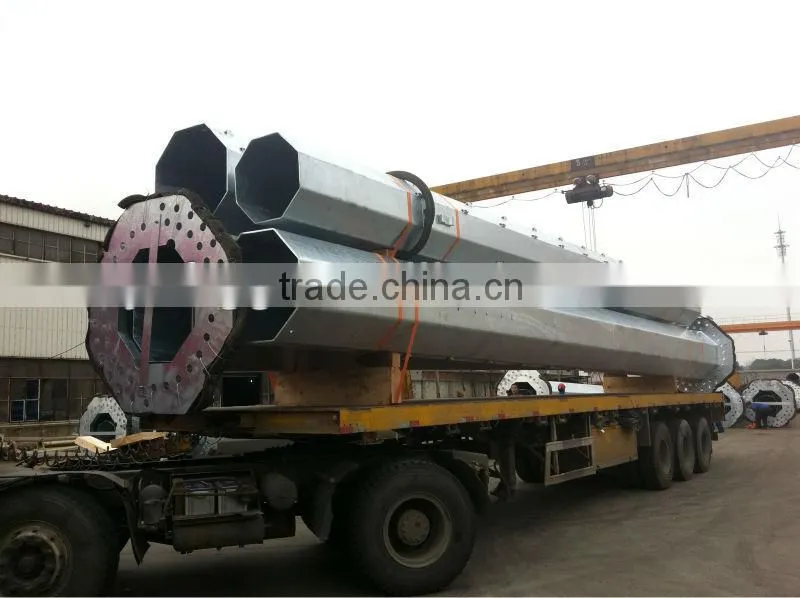

Packages
Our poles as normal cover by Mat or straw bale at the top and bottom ,anyway also can following by client required , each 40HC or OT can loading how many pcs will calculation base on the client actually specification and data.
Our steel pole, steel poles , steel power poles ,power steel poles, electrical poles, electrical power poles, power poles, power distribution equipment poles , electric power transimission &distribution steel poles ,hot-dip-galvanized steel poles ,lamp poles ,road poles, streeting lighting poles, street lamp poles ,solar street lamps steel poles ,high mast lamp poles,road lamp poles, the steel street lamp poles, hot-dip-galvanized steel lighting ,outdoor lighting ,outdoor lamps ,street lighting poles ,steel post ,street poles, lamp parts ,lighting fixture ,lighting poles ,lighting equipment ,lighting decoration ,lighting product , street lighting body, high mast lighting steel poles &tower,electric poles, round&square street lighting steel poles with double arm or single arm . Stainless steel poles, Flag mast stainless steel pole, aluminum street light poles, traffic lighting steel poles, telecom tower poles , baseplate , bearing plate, base flanges , are made by hot-roll steel coil ,the process as cut plate, bending ,forming,automatic welding,drill holes ,quality check before galvanized, hot dip galvanized or powder coating , final quality check according by client required.
