Mixing mill machine
Application:
It is widely used in rubber and plastic mixing,warming mixing,sheeting mixing.
Opening rubber mixing mill is the most widely-used equipment for production of rubber products. It is mainly used for mixing, sheeting, plasticating and heating the rubbers etc.
Structure features:
1. The roll adopts the vanadium titanium metal alloy chilled cast iron and its surface is hard and wear-proof. The internal cavity is processed to make temperature well proportioned on the roll surface.
2. The machine is equipped with an overload protection device to prevent the main components from being damaged.
3. The machine is also equipped with an emergency brake device. When an emergent arises, just draw the safety pull rod, and the machine will stop immediately. It is safe and reliable.
4. The transmission system adopts a hardened tooth-surface reducer, which has a compact structure with higher transmission efficiency, lower noise and longer service life.
5. The base frame is a whole framework, which is convenient for installation.
Technical data:
Model |
roller dia.(mm) |
roller length(mm) |
roller ratio |
rubber feeding(kg/time) |
main power(kw) |
overall dimension(cm) |
XK-160 |
160 |
320 |
1:1.35 |
1 |
5.5 |
116*92*137 |
XK-250 |
250 |
620 |
1:1.1 |
15 |
15 |
272*108*142 |
XK-300 |
300 |
600 |
1:1.7 |
20 |
22 |
300*126*1530 |
XK-360 |
360 |
900 |
1:1.25 |
25 |
30 |
394*178*174 |
XK-400 |
400 |
1000 |
1:1.27 |
30 |
40 |
425*185*187 |
XK-450 |
450 |
1200 |
1:1.27 |
50 |
55 |
507*185 *163 |
XK-560 |
560/510 |
1530 |
1:1.2 |
60 |
90 |
620*230 *200 |
XK-660 |
660 |
2100 |
1:1.08 |
80 |
110 |
950*340*220 |

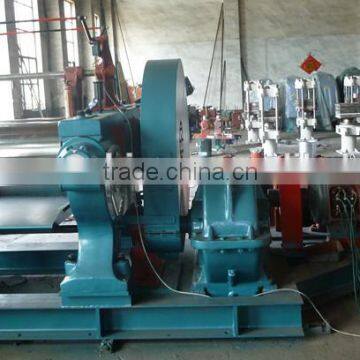

Picture one :

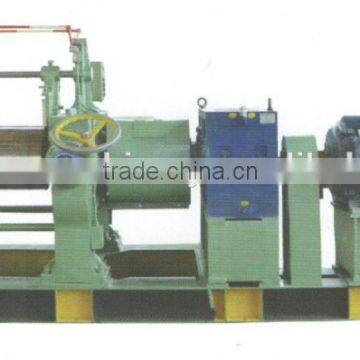

picture two : XK-250 rubber mixing mill . production capacity is about 150 kg/h

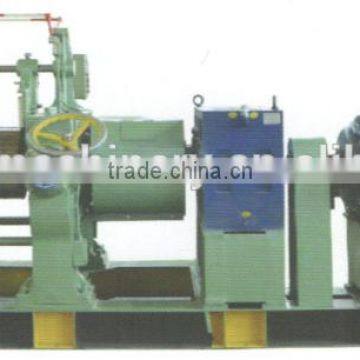

picture three : xk-360 rubber mixing mill .Production is about 250 kg/h

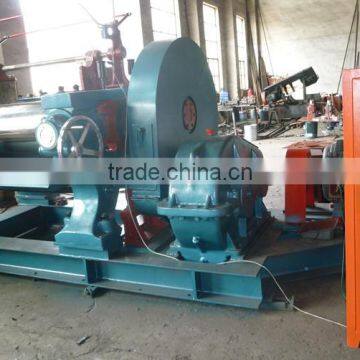

picture four : xk-400 rubber mixing duction is about 350 kg/h . From this model , we begin distiguish configuration . NYLON , COPPER , ROLLER BALL BEARING.
picture five:XK-450 rubber mixing mill . two configuration , stock blender is choosed . 500 kg/h
picture six : XK-560 . two configuration , stock blender . production is 500 KG/H
picture eight : XK-660 rubber mixing mill . production capacity 2000 kg/h
