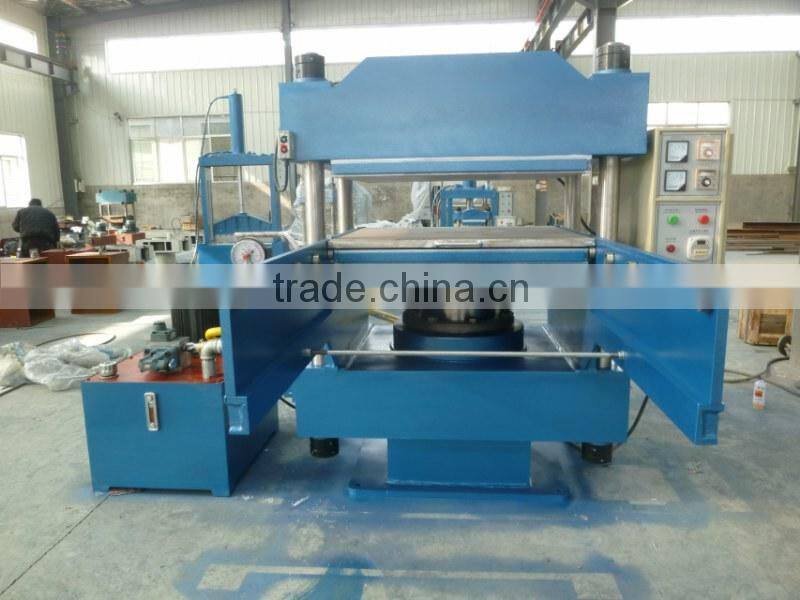

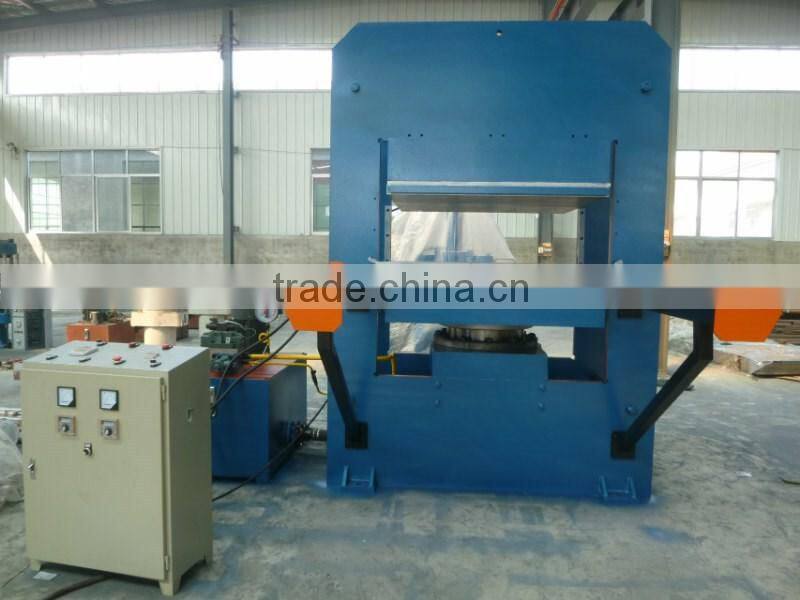

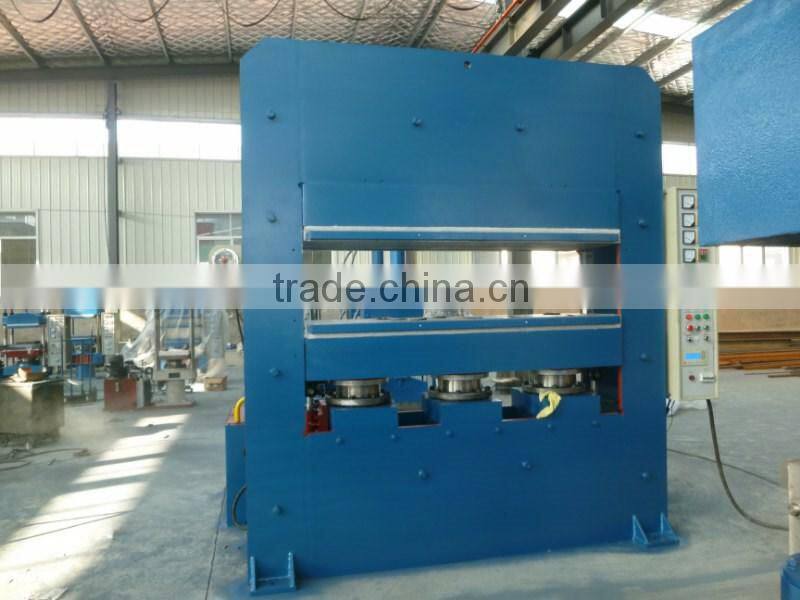

Hydraulic Rubber Seal Making Machine

Hydraulic Rubber Seal Making Machine photo-1
Hydraulic Rubber Seal Making Machine photo-2
Hydraulic Rubber Seal Making Machine photo-3

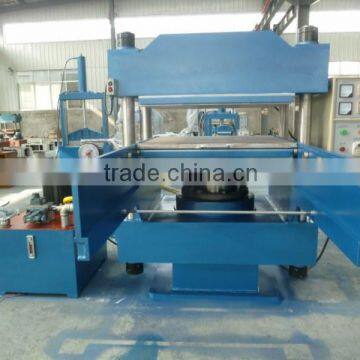

Hydraulic Rubber Seal Making Machine photo-4

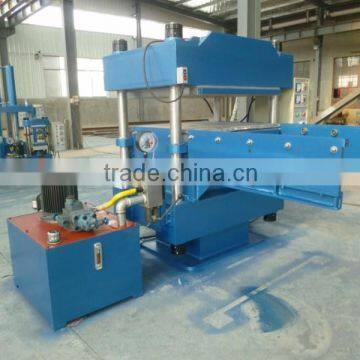

Hydraulic Rubber Seal Making Machine photo-5

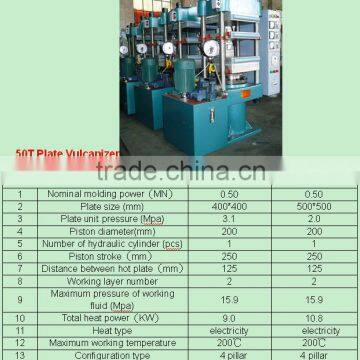

Hydraulic Rubber Seal Making Machine photo-6
US$ 4,500 - 8,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Vulcanizer
Place of Origin:
Shandong, China
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Vulcanizer
Place of Origin Shandong, China
Brand Name YaHua
Model Number XLB-D
Voltage According to your voltage
Power(W) According to the machine
Dimension(L*W*H) According to the machine
Weight According to the machine
Certification ISO9001, ISO9001:2008
Warranty 1 year, one year
After-sales Service Provided Engineers available to service machinery overseas

  hydraulic rubber seal making machine



Type



XLB-DQ400X400X2

XLB-DQ400X400X2

XLB-DQ600X600X2

XLB-DQ750X850X2(4)

Total Pressure(mn)



0.25

0.50

1.00

1.60

Plate Size(mm)



400X400

400X400

600X600

750X850

Daylight(mm)



125

125

125

125

Daylight No



2

2

2

2(4)

Piston Stroke(mm)



250

250

250

250(500)

Unit Area Pressure(kg/cm2)



20

31

28

25

Main Motor Power(Kw)



3

2.2

2.2

3

Overall Dimension(mm)



1300X800X1500

2400X550X1500

1401X680X1750

1900X950X2028

Weight(Kg)



1150

1300

3500

6500(7500)





 Advantages



1 -   Material of steel :

Hight quality carbon steel,more thick than other supplier,after shot blasting ,smooth and strong enough,we usually use more thickness material than other supplier.



2- Weldment of frame : world technique



Welded together as a whole part,Stewing fire treatment after weldment.

(Carbon dioxide gas shielded welding,alloyed welding wire).

 submerged arc welding, VSR treatment after weldment.



3- Heating way&precision temperature control:



Steam ,oil or Electric

Plate temperature tolerance: ±0.5°C



4- There are more advanced technical information as our core patents,and not showed in the description,please email us.

hydraulic rubber seal making machinehydraulic rubber seal making machinehydraulic rubber seal making machine

 hydraulic rubber seal making machine







 hydraulic rubber seal making machine
