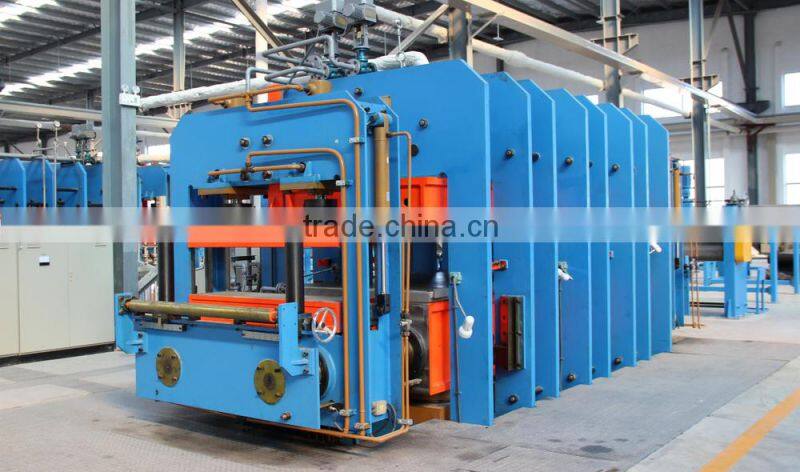

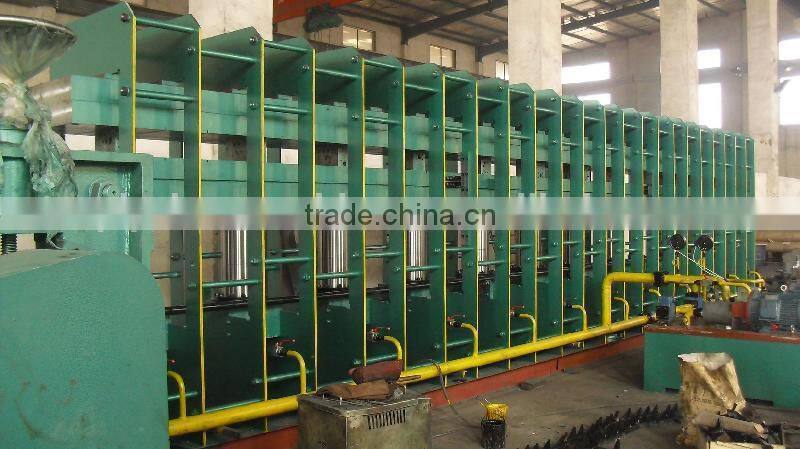

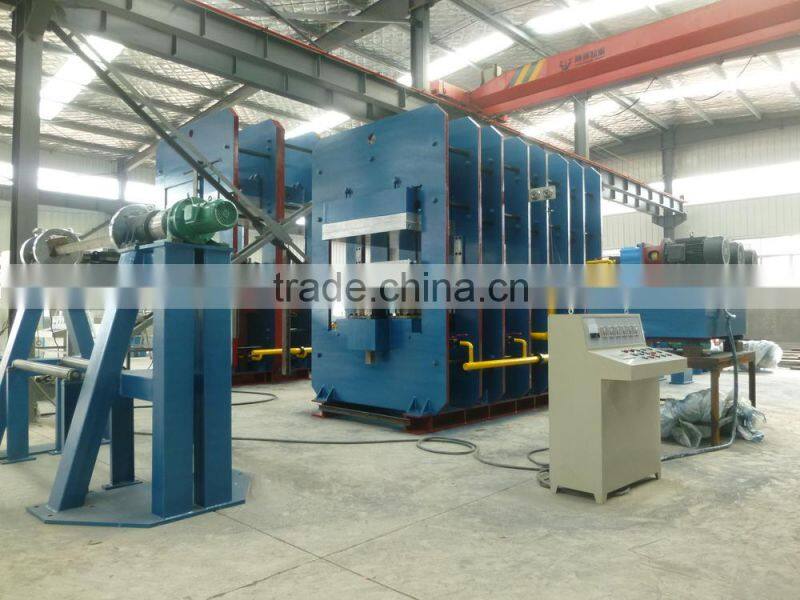

Help CenterConveyor Belt Vulcanizing Machine/rubber Conveyor Belt Production Line/Rubber Vulcanizing Press/
Related Products
-
Rubber Out Sole Making MachineUS$ 3,500 - 75,600MOQ: 1 Set -
Auto-operated Rubber Shoe Sole MachineUS$ 3,500 - 75,600MOQ: 1 Set
-
Auto-operated Rubber Shoe Sole Machine/rubber Sole Making Machine/rubber Out Sole Making MachineUS$ 3,500 - 75,600MOQ: 1 Set
-
Full Automatic Rubber Vulcanizing Machine / Rubber Vulcanizing Press / Rubber Tile Making MachineUS$ 5,000 - 7,000MOQ: 1 Set
-
High Quality Rubber Flooring Machine / Rubber Tiles Vulcanizing Machine/rubber Tile Making MachineUS$ 5,000 - 7,000MOQ: 1 Set
Rubber Vulcanizer/Conveyor Belt Vulcanizing Press
main technical parameters
|
Type
|
XLB-DQ400X400X2 |
XLB-DQ400X400X2 |
XLB-DQ600X600X2 |
XLB-DQ750X850X2(4) |
|
Total Pressure(mn)
|
0.25 |
0.50 |
1.00 |
1.60 |
|
Plate Size(mm)
|
400X400 |
400X400 |
600X600 |
750X850 |
|
Daylight(mm)
|
125 |
125 |
125 |
125 |
|
Daylight No
|
2 |
2 |
2 |
2(4) |
|
Piston Stroke(mm)
|
250 |
250 |
250 |
250(500) |
|
Unit Area Pressure(kg/cm2)
|
20 |
31 |
28 |
25 |
|
Main Motor Power(Kw)
|
3 |
2.2 |
2.2 |
3 |
|
Overall Dimension(mm)
|
1300X800X1500 |
2400X550X1500 |
1401X680X1750 |
1900X950X2028 |
|
Weight(Kg)
|
1150 |
1300 |
3500 |
6500(7500) |
Type |
XLB-DQ1200×1200×2 |
XLB-DQ1300×2000×1 |
XLB-Q1200×2500×1 |
XLB-Q1500×2000×1 |
XLB-Q2000×3000×1 |
XLB-Q1400×5700×1 |
Total pressure(MN) |
315t |
560t |
750t |
1000t |
1800t |
2800t |
Platen size(mm) |
1200×1200 |
1300×2000 |
1200×2500 |
1500×2500 |
2000×3000 |
1400×5700 |
Daylight (mm) |
200 |
400 |
400 |
400 |
400 |
400 |
No of Daylights |
2 |
1 |
1 |
1 |
1 |
1 |
Piston stroke(mm) |
400 |
400 |
400 |
400 |
400 |
400 |
Plate Unit Area pressure(Kg/cm2) |
22 |
21.5 |
25 |
33.5 |
30 |
35 |
Main motor power(KW) |
3 |
8 |
9.5 |
11 |
26 |
43.5 |
Overall dimension(L×W×H) (mm) |
1685×1320×2450 |
2000×1860×2500 |
2560×1700×2780 |
2810×1550×3325 |
2900×3200×2860 |
2400×5800×3600 |
Weight(kg) |
9500 |
17000 |
20000 |
24000 |
66000 |
110000 |
Advantages
1 - Material of steel :
Hight quality carbon steel,more thick than other supplier,after shot blasting ,smooth and strong enough,we usually use more thickness material than other supplier.
2- Weldment of frame : world technique
Welded together as a whole part,Stewing fire treatment after weldment.
(Carbon dioxide gas shielded welding,alloyed welding wire).
submerged arc welding, VSR treatment after weldment.
3- Heating way&precision temperature control:
Steam ,oil or Electric
Plate temperature tolerance: ±0.5°C
4- There are more advanced technical information as our core patents,and not showed in the description,please email us.
According to your demand manufacture
various types of rubber machineries.
Contact Person: john Ge
whatsapp:+8615266236273
skype:johnge339
Send Inquiry to This Supplier
