Quick Details
Place of Origin: Shanghai, China (Mainland) Brand Name: VF
Model Number: LAY50-22 Protection Level: IP65
Max. Current: 10A Max. Voltage: 380v
Shell Material: ABS or PC Base Material: PA66
Lamp Bulb Type: LED
Rated Voltage of Lamp: 6V/12V/24V/36V/48V/110V/127V/220V/380V
Rated Current of Lamp: 15mA
Color of Lamp: red, green, yellow, orange, black, white
Service Life of Lamp: 50000 hours
Insulating Strength: 2000 VAC
Mechanical Life: 500,000 times
Packaging & Delivery
Packaging Details: mushroom switch Standard export packaging, also can do as customers' order
Delivery Detail:4-5 days
| 1. | An outer diameter of 22mm modular indicator light |
| 2. | Shape, decent, high perfomance |
| 3. | Modular assembly method is very conveninet disassembly combination |
| 4. | Can be conveniently combined according to needs of different users |
| 5. | Housing made of PC material, color, clarity, good transmittance |
| 6. | No fading, no wear and tear |
| 7. | Light source with high brightness LED lamp, built-lit, shiny, bright switch |
| 8. | Can be equipped with a buzzer sound 90DB above |
| 9. | Protection level reach IP65 |
Specifications

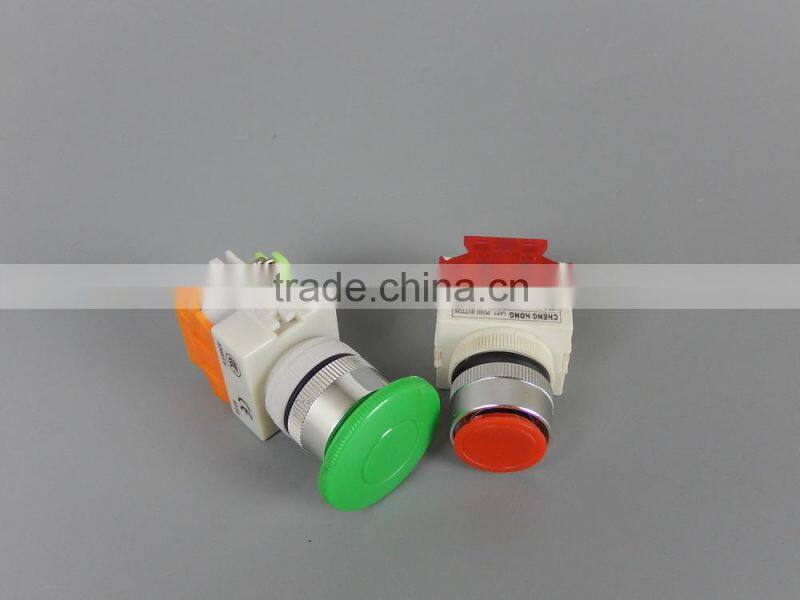

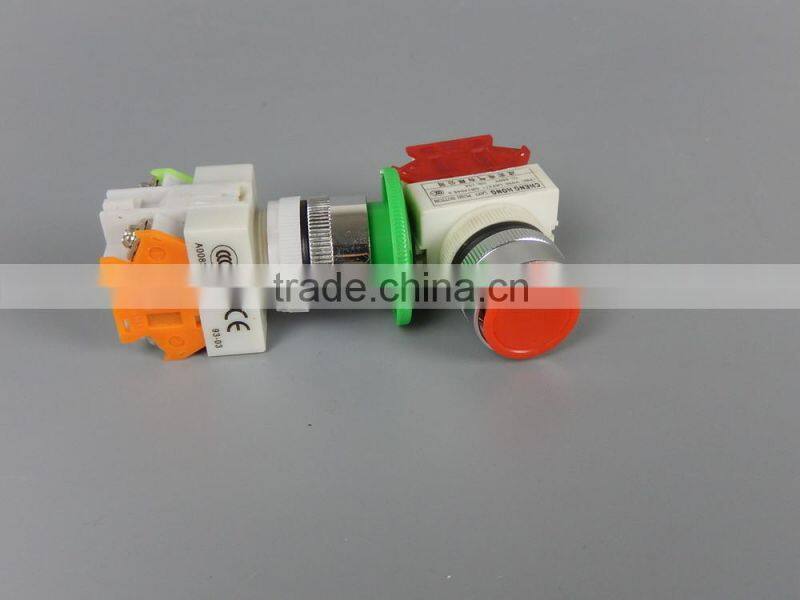

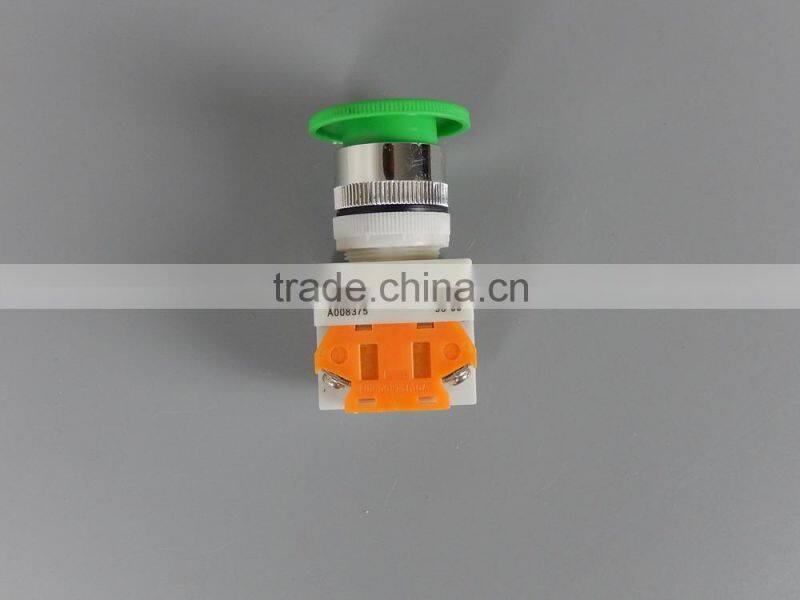

Pushbutton Switch, Emergency Stop, Switch
Approval by CCC, CE, ISO9001, TUV, ROHS
Feature
1. Mounting size: Φ22mm
2. Bezel type: LA155-B4-B series for metal bezel, LA155-B4-E series for plastic
3. Easy to Assemble
4. This series includes a complete range of flush push button switch, extended push button, illuminated push button, maintained push button, Mushroom push button, emergency stop button, selector switch, key switch, dual push button, and etc. For more information, please kindly check the other type of LA155 series push button switches or contact us for details.
