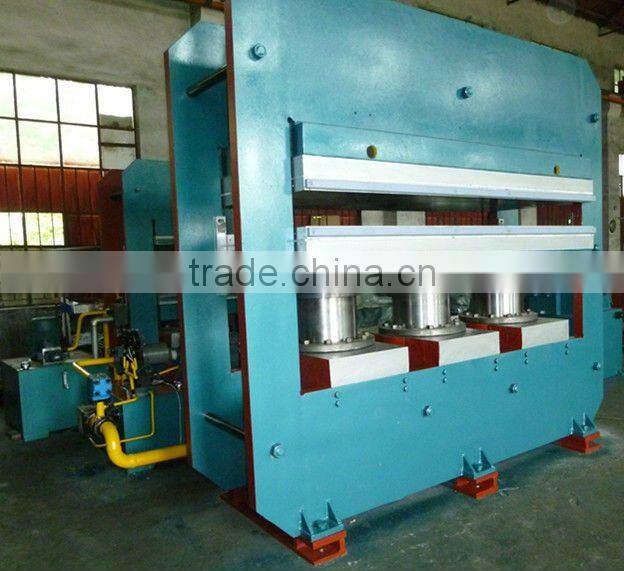

Big O-Rings and Rubber Carpet Vulcanizing Hydraulic Press Machine/Electric Hot Press Machine

Specifications

rubber o-rings vulcanizing machine
1.use the best Q-235 model steel
2.LED time shower and controller
3.water cooling

  Electric Hot Press Machine

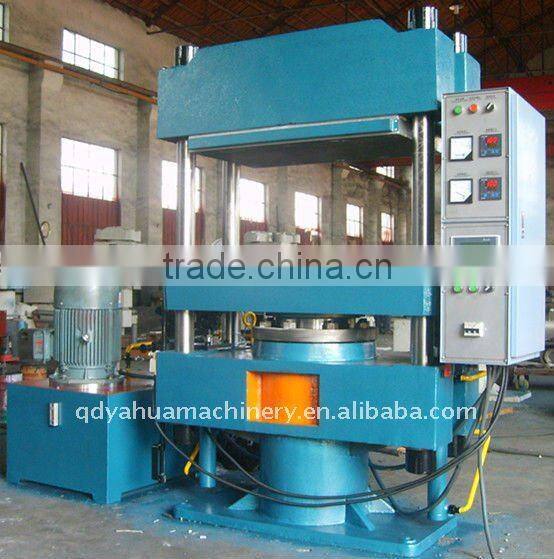

The four-column  hydraulic press  machine is an advanced hydraulic power-press  which has a PLC control system and can  manufacture silica gel,rebber,melamine products.
Our oil press is  suitable for melamine two--color table and mahjong domino,and also suits for the molding operation of rubber products, conducting rubber, environment-protected once-only dinner box and so on.
The machine is controlled by PLC computer, which is easy to operate, powerful in function, low in malfunction, convenient for maintenance.
Integral type cast steel oil cylinder is powerful in hardness. The precision is high after grinding, and can also endurance of rubbing and high speed running .







Plate Vulcanizing Press







Type	350*350*2	400*400*2	500*500*2	600*600*2	750*850*2	600*600*2
Nominal clamp mould force (MN)	0.25	0.5	0.8	1.0	1.6	2.0
Piston size	350*350	400*400	500*500	600*600	750*850	600*600
Number of working layer	2	2	2	2	2	2
Piston diameter(mm)	150	200	250	300	360	400
Stroke of piston (mm)	250	250	250	250	500	300
Distance between hot plate(mm)	125	125	125	150	250	150
Unit area pressure of hot plate(Mpa)	2.1	3.1	3.2	2.78	2.5	5.6
Power(KW)	2.2	2.2	2.2	2.2	3.0	3.0
Overall size(L*W*H)(mm)	1500*400* 1350	1800*500* 1700	1800*550* 1600	2000*700* 1700	2000*1000* 1900	2550*960* 2100
Weight(kg)	1000	1500	2000	2600	4300	5000
Close mould speed(mm/s)	≥12	≥12	≥12	≥12	≥12	≥12
Open mould speed(mm/s)	≥12	≥12	≥12	≥12	≥12	≥12
