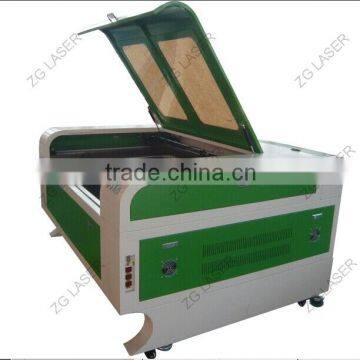

ZG 3034 CO2 laser cutting engraving machine

Product Name:

laser cutting machine/ laser engraver with up-down table

Product Type:

    ZG Series Motorized laser machine

Item Number:

  ZG1290/ZG6090

Processing Area:

    1200×900mm/600×900mm

Introduction

1. Automatic up and down table and unique auto-focus can cut and engrave materials with different levels;

2.Rotary attachment can engrave cylinders effectively with vivid designs;

3.Adopting the combined guide rail with Italian technolygy, the cutting/engraving speed is enhanced by 20%.

Optional attachments

Red dot pointer, auto-focus, Synrad and reci laser tubes

Technical lndex:

Processing Area:     1200×900mm/600×900mm

Ascending and descending distance:        200mm/ 300mm

Laser Power:              60/ 80W/100W/135W

Max. cutting speed:                                          36000mm/min

Max. engraving speed:                                     64000mm/min

Electro motion ascending and descending weight:        20KGS

Resolution Ration:                                      0.0064mm

Minimum shaping character:                  Chinese Character: 2×2mm, letter: 1×1mm

Location precision:                                     <0.01/mm

Power supply:                                              AC220±10% 50HZ (can be changed).

Gross Power:                                              1100W

Graphic format supported:                      DXF, .BMP, .PLT, .AI, .DST etc.

Applicable industries:

Cylinders such as bottles, cups, vases engraving and thick materials engraving on the surface, and nonmetal materials cutting for advertising, decorative, crafts and gifts, model industries etc.

Applicable materials

Acrylic, cloth, Glass, MDF, plywood, bamboo products, color plates, fabrics, denim fabric, plastics, paper, leather, shellfish, coconut shell, horn, resin, animal skin, rubber,  ceramics, ABS boards, lamp etc.

Parts

CO2 laser tube, laser power suppliesm laser control systems, laser focus lens, laser reflector mirrors, water chillers, laser mechanical parts, frequency inverter, ect.

Machine

laser cutting machines, laser engraving machines, laser marking machin, ect.
