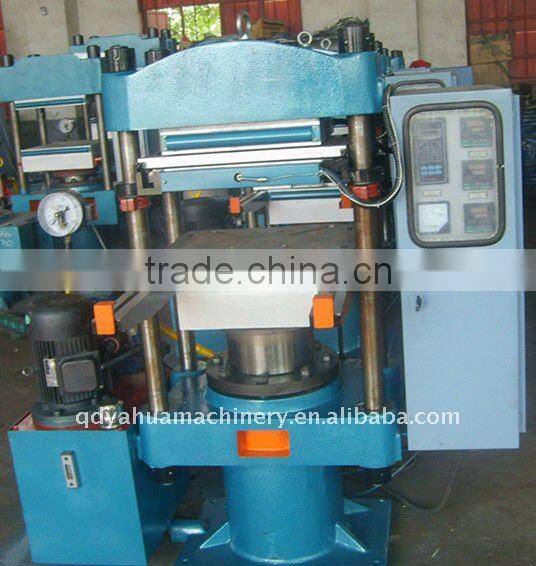

Column Tyre Press/Automatical Rubber Sealing Washer Vulcanizing Machine/Rubber Mat Making Machine

Specifications

1.used widely, good sales
2.high working pressure
modious space and easy operation
4.saving energy, reliable action



  PLC Auto Rubber Sealing Washer Vulcanizing Machine/Rubber Mat Making Machine



We are Qingdao Yahua Machinery CO.,LTD. Our main products are plate vulcanizing machine, curing press, rubber machine, conveyer belt vulcanizing press, Rubber crushing mill, Rubber refining mill, rubber tiles vulcanizing press, tire building machine,  rubber kneader, two-roll mixing mill and so on.
The products have been exported to many countries, such as America, Canada, Australia, South Korea, and Southeast Asia, Middle-east, etc .

If you interested in our products mentioned above. Kindly let us know by return email.





Main technical parameters




Model XLB-D	400*400*1	400*400*2	XLE-D450*450*1	500*500*1	500*500*2
Nominal Mold Force(MN)	0.80	0.80	0.80	0.80	0.80
Plate Specification(mm)	400*400	400*400	450*450	500*500	500*500
Working Layer Number	1	2	1	1	2
Plunger Stroke(mm)	250	250	300	250	300
Plate Unit Pressure(Mpa)	5.0	5.0	4.0	3.2	3.2
Plate Distance(mm)	250	125	300	250	150
Plunger Diameter(mm)	250	250	250	250	250
Working Fluid Pressure( Mpa)	16	16.2	16.3	16.2	16.2
Total Heating Power	6	9	6	7.2	9
Heating Type	Electricity	Electricity	Electricity	Electricity	Electricity
Highest Temperature	200°C	200°C	200°C	200°C	200°C
Structure Form	Pillar	Pillar	Crocodile	Pillar	Pillar
Motor Power	1.5KW,940r/min	1.5KW,940r/min	2.2KW,960r/min	1.5KW,940r/min	1.5KW,940r/min
Dimension(length*width*height)	1300×1400×650	1300×650×1400	1300×1400×650	1300×1400×650	1300×1400×650





Advantages







1. One person can simultaneously operate multi-stations to save labor costs.







2. Automatically enter or exit sliding mold, it is convenient to take out finished product. The operation is easy, even female operator can be competent the job.





3. Double sides operation, featuring simultaneously inter-lock function, it is safe for operation.





4. Fix up down mould to the sliding plate, and then it can start to produce. The speed of mould change is quick.





5. Control of each station is independently. According to the requirement of manufacture, requirement of maintenance, to decide station numbers. And then it can save electricity.
