Rubber Bands Bracelets Making Machine

Specifications

(1) Main Technique Parameters:

1.Nominal molding Power....................................................... 1.00 MN

2.Hot plate Size.............................................................. 450*450mm

3.Hot plate thickness ...............................................................60 mm
4.Hot plate unit area of pressure................................... 4.9MPa

5.Piston diameter........................................................... ...........300mm

6.Hydraulic cylinder number................................................ 1/set

7.Piston stroke................................................................. ..........300mm

8.Hot plates Clearance........................................................... 150mm

9.Working layer number........................................................... 2

10.Working liquid pressure............................................. .....15.7MPa

11.Heating mode.......................................................................Electrical

12.The highest tempreture....................................................200°C
13.The hot plate balance degree ......................................≤0.06 mm

14.Temperature control precision........................................± 5 °C
15.Control way......................................................................... Semi-automatic

16.Motor power:..................................................................2.2KW,940r/min

17.Structure form................................................................. Tetrastyle

(2) Picture Show:

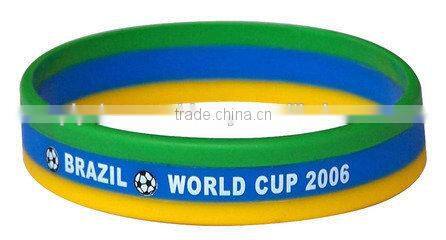

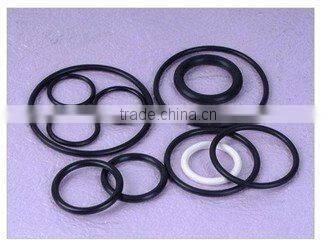

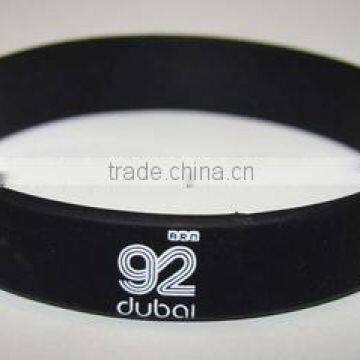

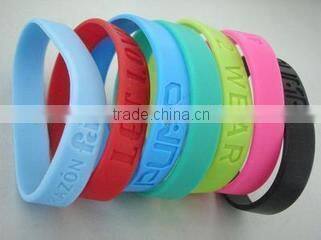

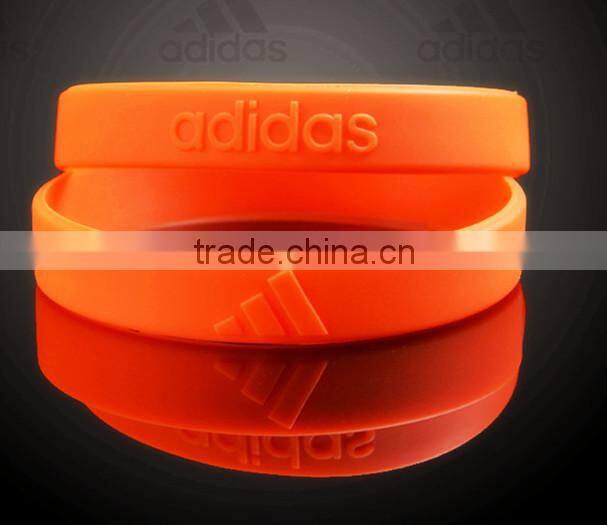

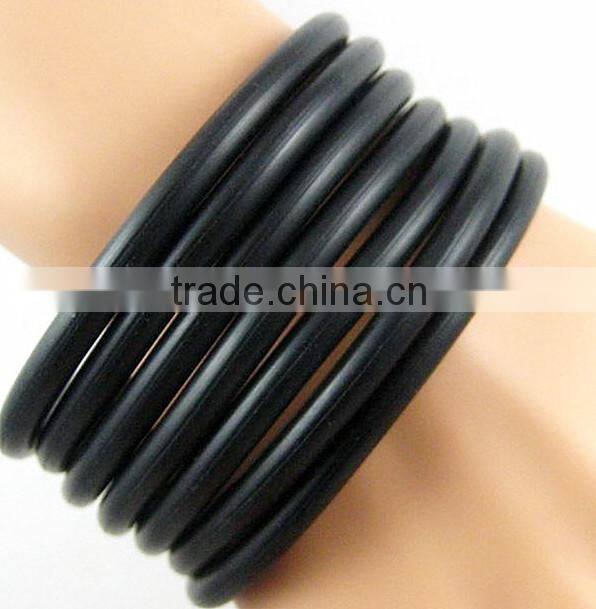

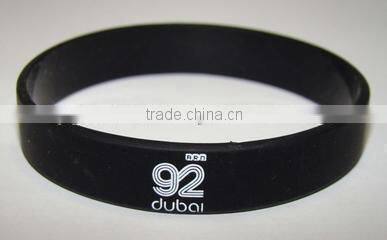

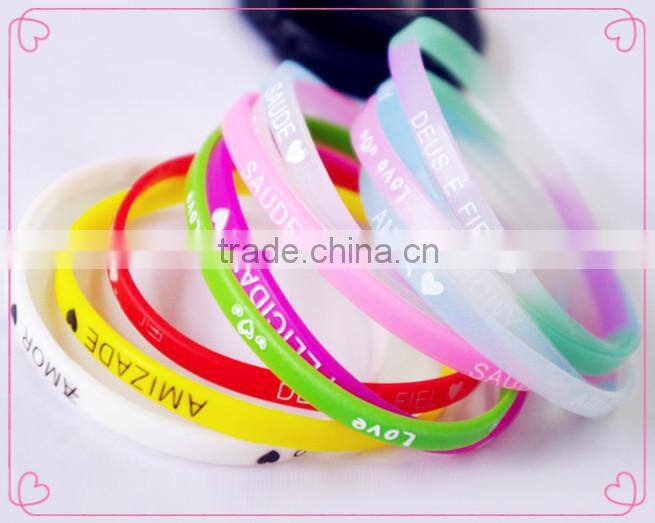

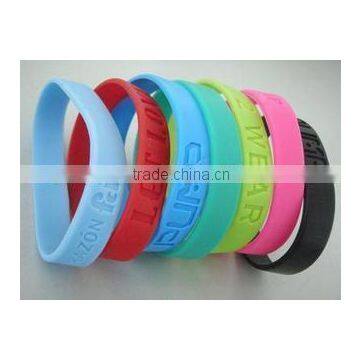

    Products show:

Dear,we can also manufacture the machine according to your just tell me the Mold Size,

Working Layer number you want,we can design the best machine for you!!!
