Specifications
Stable performance Excellent quality &stable performanceHigh products qualification rate
Reasonable price & on time delivery

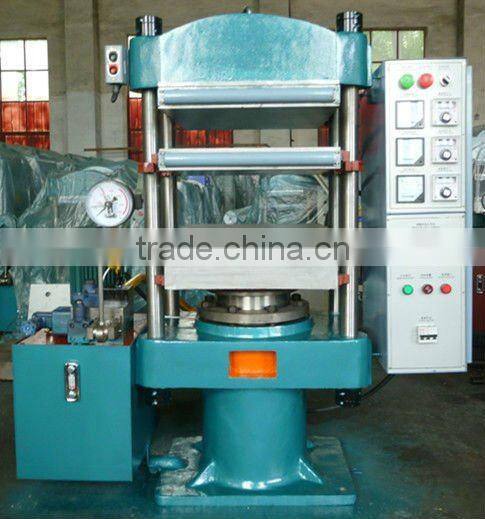

Strain Rod Rubber Vulcanizer/Rubber Moulding Press/ Rubber Foam Strip and Bushing Washer Vulcanizing Press
1- Usage:
This vulcanizing machine is used for all kinds of vulcanizing mould, rubber and plastic .
2- Features:
1.our hydraulic press (vulcanizer)have passed the certificate of ISO9001,the qulity of the machine can be assured.
2.we have professional design group,so we can design and manufacture all kinds of standard rubber machine according to the requirements of the customers.
3.plate vulcanizer applies to sulfurizing rubber plastic model products
4.The machine is in frame structure with below pressing form (upwards). Under the working hydraulic pressure, the embolism ascends to make hot plate close for getting pressure, while the embolism descends (namely hot plate turning on) by deadweight of hot plate, platform and embolism to drive working fluid to fuel reserve tank to achieve the aim of descending (namely turning on).
5.Made of nodular cast iron, the oil cylinder of machine is improved in compressive strength and wear resistance. Seal ring made of oil-proof rubber is placed in oil cylinder to have sealing effect in working process of this machine.
6.Combined oil pump, power source of the machine, provides working fluid with certain pressure. Working fluid enters into oil cylinder by control valve to make control handle on control valve turn to different places, and then embolism is able to ascend or descend.
7.Adopting tubular electric-heating component to heat up, the machine can reduce air pollution to keep workshop clean without boiler.
8.The machine is beautiful in shape, rational in structure, convenient in control, safe and credible as well.
3- Certification: ISO9001
As a bigger and quality rubber machine manufacture,we gain more and more clients. If you need ,please contact us as soon as possible.
Parameters/version |
XLB400*400*2 |
XLB500*500*2 |
XLB600*600*2/4 |
Mould closing force |
0.5 |
0.8 |
1.0 |
Hot plate spacing |
125 |
125 |
125 |
Hot plate layer |
2 | 2 |
2/4 |
Plunger stroke |
250 |
250 |
250/500 |
Heating way |
Electricity/steam |
Electricity/steam |
Electricity/steam |
Main motor power |
2.2 |
2.2 |
2.2 |
The thermal power |
3kw/board |
3kw/board |
7.5kw/board |
Size(l*w*h) |
1600*400*1440 |
1450*690*1818 |
1880*780*1660 |
Weight(kg) |
1500 |
1800 | 2500/3100 |
Platen unit area pressure |
3.13 |
2.52 |
2.78 |

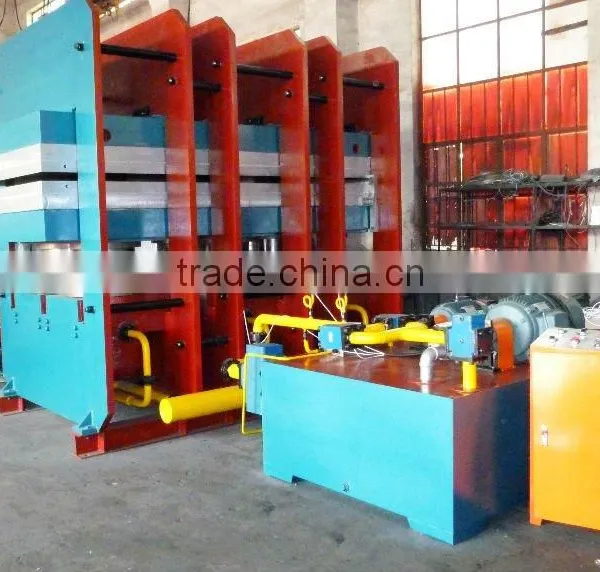

| Model | XLB-1800X12000*2 | XLB-1800X10000*2 | XLB-1600X10000*2 | XLB-1600X10000*1 | |
| Heating platen size (mm) | 1800*12000 | 1800*10000 | 1600*10000 | 1600*10000 | |
| Nominal total pressure (mn) | 74 | 72 | 56 | 64 | |
| Platen unit pressure (mpa) | 3.4 | 4 | 3.5 | 4 | |
| Ram diameter (mm) | 500 | 500 | 450 | 500 | |
| Ram Qty (pc) | 18 | 18 | 18 | 18 | |
| Max. Ram stroke (mm) | 400 | 300 | 400 | 300 | |
| Clamping force (mn) | 1.2 | 1.5 | 1.2 | 1.2 | |
| Tensioning force (mn) | 1.1 | 1.2 | 1.1 | 1 | |
| Steam pressure (mpa) | 0.63 | 0.6-0.8 | 0.63 | 0.6-0.8 | |
| Cooling water pressure (mpa) | 0.3 | 0.3 | 0.3 | 0.3 | |
| Control form | PLC | PLC | PLC | PLC | |
| Overall dimension of main machine | Length (mm) | 12000 | 1000 | 10000 | 10000 |
| Width (mm ) | 2900 | 2740 | 2660 | 2560 | |
| Height (mm ) | 3930 | 3660 | 4120 | 3520 | |
We are Qingdao Yahua Machinery CO.,LTD. Our main products are plate vulcanizing machine, curing press, rubber machine, conveyer belt vulcanizing press, Rubber crushing mill, Rubber refining mill, rubber tiles vulcanizing press, tire building machine, rubber kneader, two-roll mixing mill and so on.
The products have been exported to many countries, such as America, Canada, Australia, South Korea, and Southeast Asia, Middle-east, etc .
If you interested in our products mentioned above. Kindly let us know by return email.
Contact person: john
Skype: johnge339
Phone:0532-83132191/83137817
