Specifications
Rubber Sports Protection Material Making Machine1.High working pressure.
2.High produing efficency.
3.Top sales service.
Rubber Press Moulding Machine/Rubber Sports Protection Material Making Machine

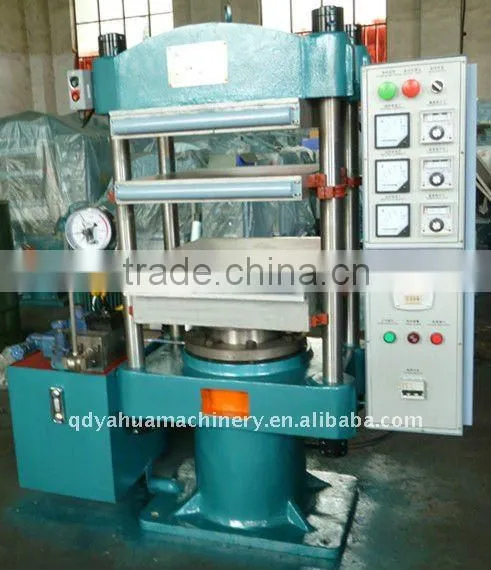

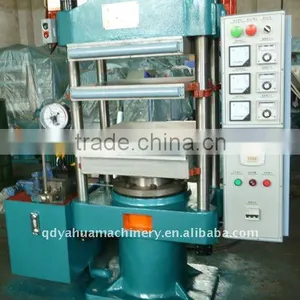

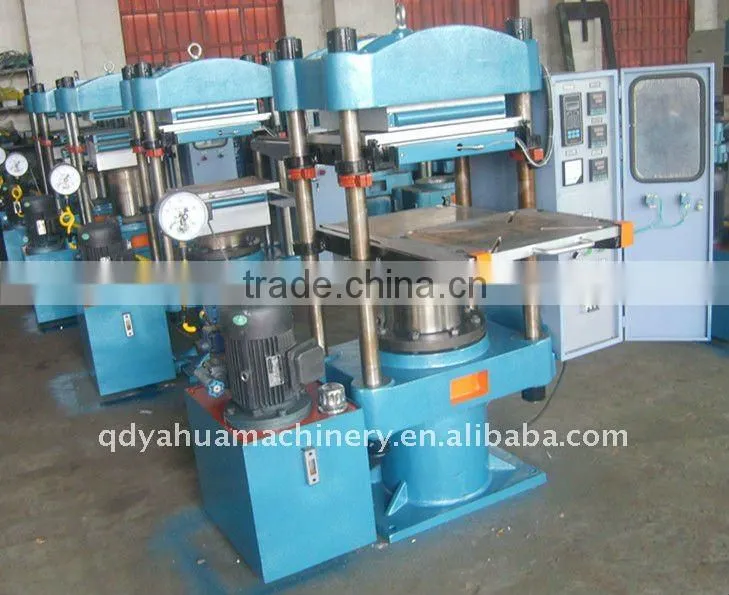

1.hot press machine is mainly used for vulcanizing all kinds of rubber & plastic products,which generally adopts column type with many features of compact structure, beautiful appearance, large pressure and so on.
2.It can be heated by electric,oil or steam,we can design and manufacture according to customers’ actual requirement.
3.The electric system adopt PLC programming control , which is easy to be operated.
contains upper separator, base, Oil cylinder, plunger, activities, platform,
hot plate, the combination of pump.
Model |
XLB-D1000*1000*1 |
XLB-D/Q1200*1200 |
XLB-D600*600 |
XLB-D400*400*2 |
|
1 |
Norminal mouldning power(MN) |
2.50 |
3.15 |
1.60 |
0.5 |
2 |
Plate size (mm) |
1000*1000 |
1200*1200 |
600*600 |
400*400 |
3 |
Plate pressure (Mpa) |
2.5 |
2.19 |
4.4 |
3.1 |
4 |
Piston diameter(mm) |
450 |
600 |
360 |
200 |
5 |
Number of hydraulic cylinder (pcs) |
1 |
1 |
1 |
1 |
6 |
Piston stroke(mm) |
300 |
800 |
300 |
250 |
7 |
Distance between hot plate(mm) |
150 |
800 |
300 |
125 |
8 |
Working layer number |
1 |
1 |
1 |
2 |
9 |
Pressure of working fluid (Mpa) |
15.7 |
17.7 |
15.7 |
16.0 |
10 |
Total heat power(KW) |
24 |
36 |
|
9.0 |
11 |
Heat type |
electricity |
vapor/electricity |
electricity |
electricity
|
12 |
Maximum working temperature |
200°C |
200/170 °C |
200 °C
|
200 °C
|
13 |

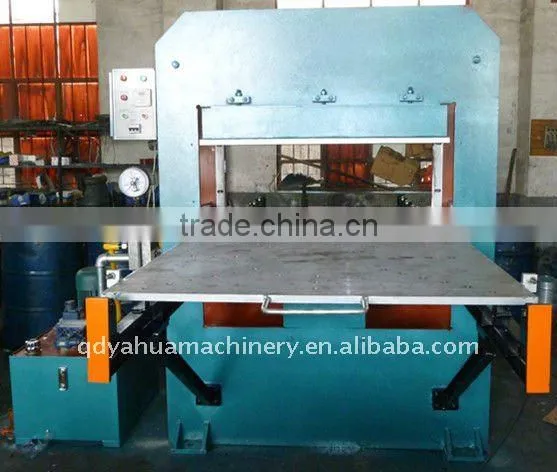

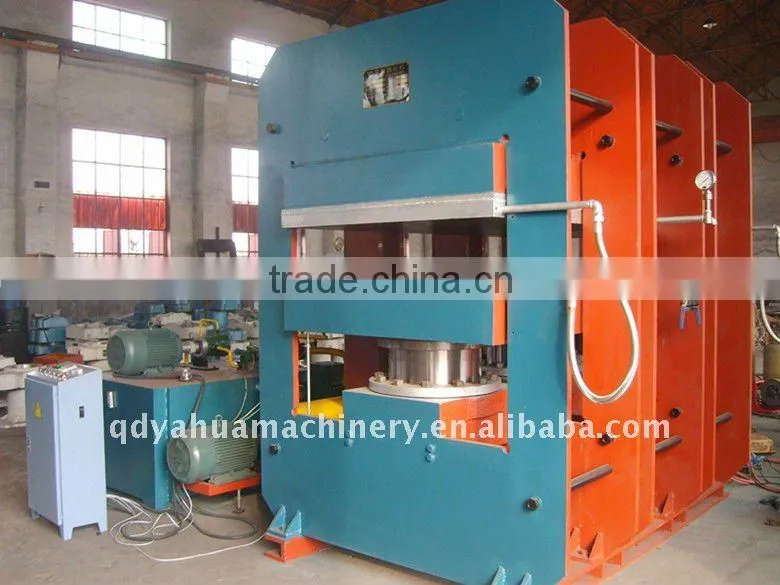

Configuration type |
Frame |
Frame |
pillar |
pillar
|
