Specifications
Rubber Machine1.Certificate
2.Best service
3.Stable pressure
4.High quality

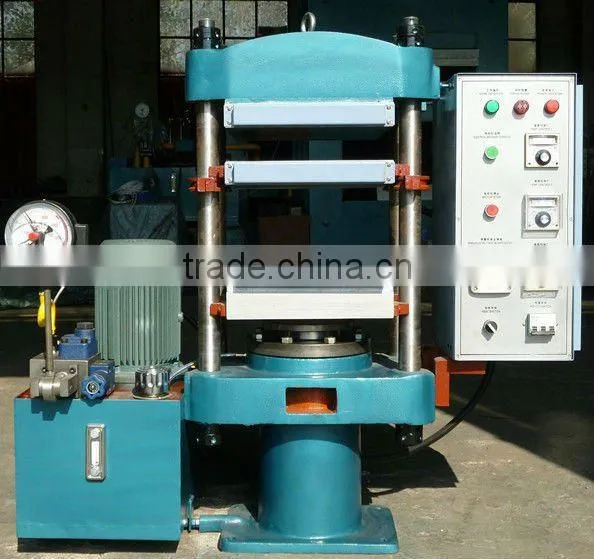

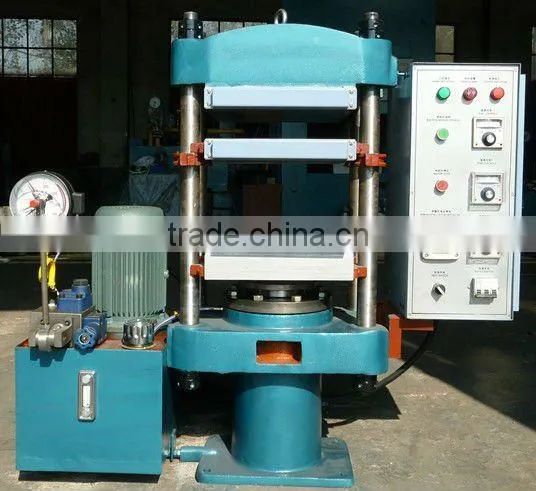

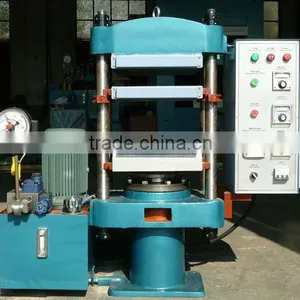

XLB-D350*350*2/0.25MN PLATE VULCANIZING
MAIN TECHNICAL SPECIFITIONS
1.The nominal and mold force.........................................0.25 MN
2.The hot plate specifications....................................350*350mm
3.The hot plate unit area of pressure................................ 2.0MPa
4.Piston diameter.......................................................... ..152mm
5.Hydraulic cylinder number................................................ 1/set
6.Piston stroke.................................................................250mm
7.The hot plate distance................................................... 125mm
8.Work layer.....................................................................2 layer
9.Working liquid pressure............................................. .13.8MPa
10.Heating mode...............................................Electrocal heating
11.The highest tempreture...............................................200°C
12.The hot plate balance degree .................................≤0.06 mm
13.Temperature control precision.......................................± 5 °C
14.Control way.................................................... Semi-automatic
15.Motor power:............................................................2.2KW,1420r/min
16.Structure form..........................................................COLUMN
17.Total weight (about)........................................................1.0T
