1M Mini Rose or Panda Measuring Tapes

1M Mini Rose or Panda Measuring Tapes thumbnail-1
1M Mini Rose or Panda Measuring Tapes photo-1
Negotiable MOQ: 6000 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Henan, China
Brand Name:
JIANGHUA
Model Number:
JH-01
Contact Supplier Request Quote Chat Now
Henan Jianghua Measure Tools Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo & Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Henan, China
Brand Name JIANGHUA
Model Number JH-01

Specifications

1.With ISO 9001
2.With MID Certificate
3.Passed GS Certification
4.JIS Class I
5.Reasonable price

The Description of the mini printed Measuring Tape:



1.New ABS material,high impact,more colors available

2.65Mn steel for Spring ,the life is 3times more than commen material

3.The hook is quenching in whole,not easy to deform and ensure accurency,the surface

    plating with chrome,anti-rust and ant

iseptic.

4.Imported paint,with 3 time wear-resistant,printing by imported ink with clear graduation

5. High carbon steel tape

6.MID II  we can make sure the Accuracy



Tolerance Test:

Length MID II JH II JIS I JH I
0-10cm ≤±0.7 ≤±0.55 ≤±0.5 ≤±0.5
0-20cm ≤±0.7 ≤±0.55 ≤±0.5 ≤±0.5
0-30cm ≤±0.7 ≤±0.55 ≤±0.5 ≤±0.5
0-40cm ≤±0.7 ≤±0.55 ≤±0.5 ≤±0.5
0-50cm ≤±0.7 ≤±0.55 ≤±0.5 ≤±0.5
0-60cm ≤±0.7 ≤±0.55 ≤±0.5 ≤±0.5
0-70cm ≤±0.7 ≤±0.55 ≤±0.5 ≤±0.5
0-80cm ≤±0.7 ≤±0.55 ≤±0.5 ≤±0.5
0-90cm ≤±0.7 ≤±0.55 ≤±0.5 ≤±0.5
0-100cm ≤±0.7 ≤±0.55 ≤±0.5 ≤±0.5
2m ≤±0.9 ≤±0.7 ≤±0.6 ≤±0.6
3m ≤±1.0 ≤±0.85 ≤±0.7 ≤±0.7
4m ≤±1.3 ≤±1.0 ≤±0.8 ≤±0.8
5m ≤±1.5 ≤±1.15 ≤±0.9 ≤±0.9
6m ≤±1.7 ≤±1.3 ≤±1.0 ≤±1.0
7m ≤±1.9 ≤±1.45 ≤±1.1 ≤±1.1
8m ≤±2.1 ≤±1.6 ≤±1.2 ≤±1.2
9m ≤±2.3 ≤±1.75 ≤±1.3 ≤±1.3
10 ≤±2.5 ≤±1.9 ≤±1.4 ≤±1.4
Indication Tolerance mm,From the foot of the blade medial or lateral lead to accurate measurement.





Keep Level Test:

Blade Width  Keep Level  0.12mm  Keep Level  0.11mm  Keep Level 0.11mmGB
16mm ≥1.6m ≥1.6m ≥0.8m
19mm ≥1.95m ≥1.8m ≥1.2m
25mm ≥2.4m ≥2.2m ≥1.6m





Package&Shipping:

1M Mini Rose or Panda measuring tapes





Our Service:



1.Sample can be supplied

2.We can designing the goods as your requirements



Company Informations:

1M Mini Rose or Panda measuring tapes1M Mini Rose or Panda measuring tapes

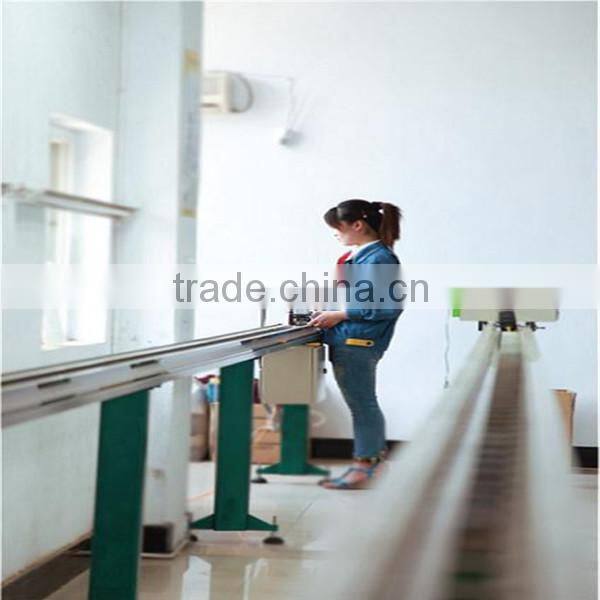

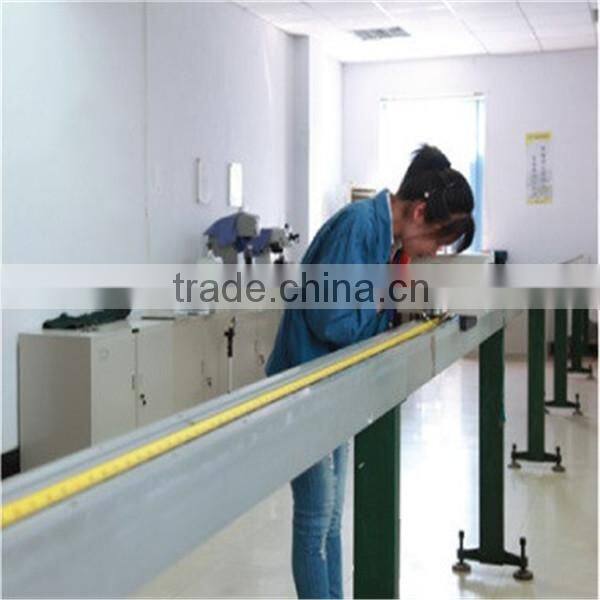

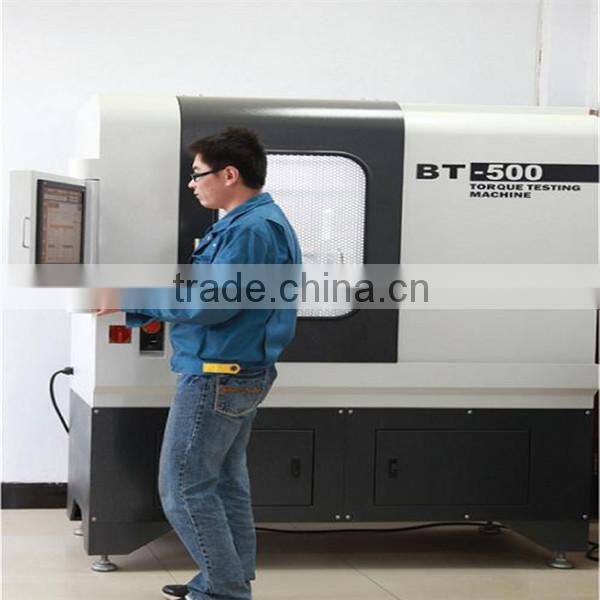

Quality of Control Equipment:





1M Mini Rose or Panda measuring tapes

1M Mini Rose or Panda measuring tapes1M Mini Rose or Panda measuring tapes





Exhibition:

1M Mini Rose or Panda measuring tapes1M Mini Rose or Panda measuring tapes



Certifications MID  ISO9001 GS:

1M Mini Rose or Panda measuring tapes

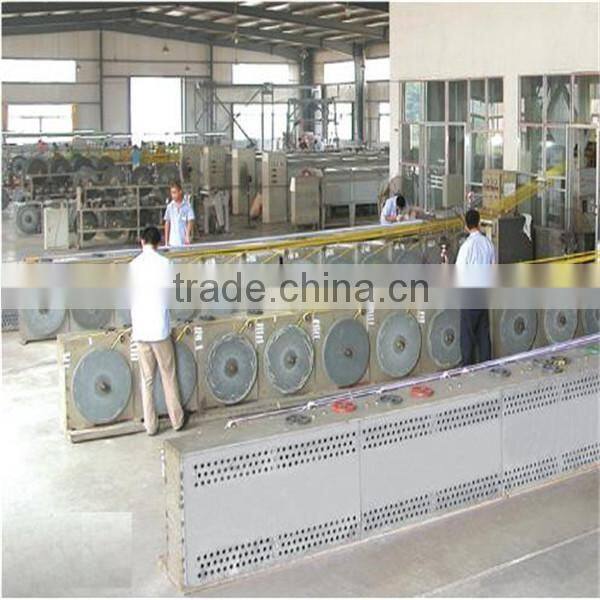

My company:

1M Mini Rose or Panda measuring tapes

Henan Jianghua Company Frofile:



1.Henan Jianghua Measure Tools Co.,Ltd was founded in 1986.It is a



modernized manufacturer of measure tools,integrating scientific research,



development,manufacture and export.



2.Workshop areas of 66,000 sqm,and architectual area of 36,000 sqm.



3.The annual production capability is 18million measure tapes,6million screwdrivers,3million art knives,and 10 thousand sets for combination



tools.



4.The company has the right for import and export.More than 90% of



products are exported to Italy,Hollan,Poland,USA,Canada,Brazil Ecuador,



Peru,Australia etc.



totally more than 60 countries and areas.



5.In 2001,the company passed the ISO9001 iNTERNATIONAL Quality



Management System Certificate.



6.In 2002,the company passed the European EEC Certifcate.



7.In 2003,the company was recognized as "Enterprise Free from Inspection



for Export"



8.In 2008,we got the MID certificate issued by UK and in 2009,we got the GS Certificate by German Standard.



9.By now 56 of our items have got the national patents.



10.We take part in Contan fair and Cologne every year.
