Specifications
current transformerpassed ISO9001
rated secondary current: 5A
good quality and best price
LA-10(LFZ1-10, LFZB1-10) current transformer
description
LA-10 current transformer is sen I-sealed structure with resin casted insulation and full sealed indoor installment product with resin casted insulation for the use of measurement of current and electronic energy and relay protection at frequency 50Hz and rated voltage10kV.
type description
Service condition
Alititude: not over 1000m over sea IeveI;
Ambient temperature: -30°C-+40°C;
Relative humidity:less than 85%at 20°C;
Without severe vibration and chemical erosive gas.
construction
The current trarsformer is semi-sealed structure 200A beIow and full-concealed resin casted insulation sturcfu re over 300A.
The semi-conceaied resin casted insuIation product is of foIded-sliced dou ble ring core with prlmary winding and secondary winding The resin is casted bet ween the two winding wives The secondary winding and core are insulated by glassboard with core eaposed.
The full-sealed resin casted insuIation product is of an anneaIed tina core wound with secondary wlndina The prlbary is single-furn through copper stick The primary and the secondary are casted with the core as a whole body insulation casting body is fixed on the flange which rating plate,warning plate ea rthing volts and holds for mounting are on.
`The lead code:The prmary is P1,P2 and the secondary 1S1,1S2(a5 class)2S1,2S2(10p class)when the primary current flons to P2throuqh P1 and the secondary flows back to S2 through S1 which is polar reduce.when the current is through the prlmary.the secondary can not be open in case of high-tenston current.
Technical data
1. The current transformer can keep working at rate current of 1.1multiple.
2. Power frequency testing voltage: between the primary and secondary t earthing of voltage 2kv ,for duration of 1min.
| rated primary current (A) | 1 s thermal current(r.m.s) (KA) | dynamic current (peak) (A) | accuracy class and corresponding output (VA) |
rated secondary current (A) | rated frequency (Hz) | insulation level | |||
| 0.2 | 0.5 | 1 | 10P10 | ||||||
| 5,10,15,20,30,40,50,75,100,150,200 | 90 l 1n | 160 l 1n | 5-10 | 10 | 10 | 15 | 5 | 50 | 11.5/42/75 |
| 300,400 | 75 l 1n | 135 l 1n | |||||||
| 500 | 60 l 1n | 110 l 1n | |||||||
| 600,800,1000,1500 | 50 l 1n | 90 l 1n | |||||||

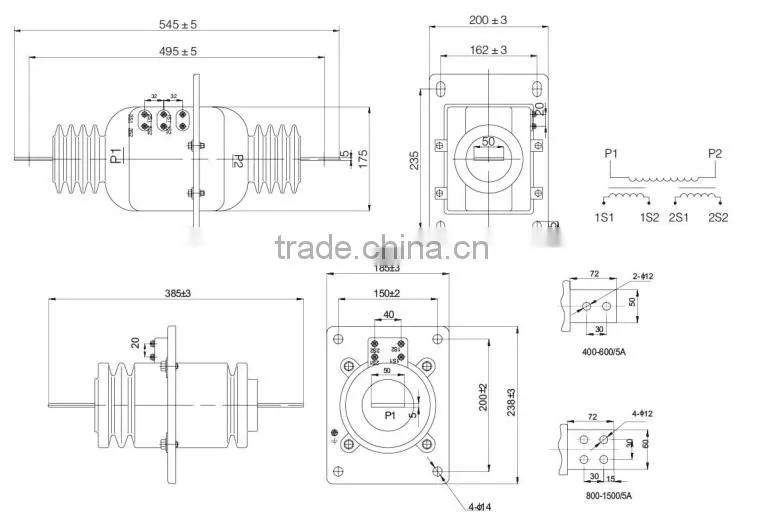

Overall dimension
Ghorit Electric Equipment Co., Ltd. Zhejiang is located in Xinguang Industrial Zone, Yueqing, Zhejiang Province, China, enjoys convenient transportation.
Ghorit covers 26,000 m² including a construction area of 12,000 m², integrates R&D, manufacture, sale and service, also has built a new production base in Shanghai.
Ghorit mainly produces and sells high-voltage electrical components and related equipments.
Ghorit has passed ISO9001. Ghorit adhere to the tenet of " survival based on high-quality products". With strong technical force, advanced production technology, perfect detection means and super product quality, Ghorit keeps on expanding the markets and has won a high reputation among the customers.
trade term:
1. payment :T/T or L/C
2. sample lead time:1-3days
3. production lead time:for 100-500pcs, 1-7days; for 500-1000pcs, 3-14days
4. shipping freight are delivered under your requests
5. shipping port: ningbo/ shanghai, mainland china
6. discounts are offered based on order quantites
7. minimum quantity: 100-200pcs (accept sample: 1-10pcs)
8. logo: according to your requirements
9. packing: 1 pc/ box or accoding to the products
10. shipping: by express (EMS, DHL. UPS, ARAMEX), by air, by sea or by train
packing:
wrapped with poly bags, put on foam, then packed with carton box, outside fixed with veneer box.
or do as your requirements
1. your inquiry related to our products or prices will be replied in 24 hours.
2. well-trained and experienced staffs answer all your questions in fluent English
3. OEM & ODM, any you customized we can help to design and put into products
4. distributoershio are offered for your unique design and some of our current model
5. protection of your sale areas, ideas of design and all your private information
buy recommendation:
1. our all items are 100% authentic; pls provide all details of the address before purchase, so we can calculate the shipping deicounts and the best transportation.
2. according to your requirements, differents specifications of the items can be mixed shipments and lower freight.
3. only wholesale, if require samples or have any questions or suggestions, pls feel free to contact us.
quality & price:
1. we sell items with top quality because we want to keep every customer as our long-term business partner.
2. we set competitive price because we need to attact buyers to this new store.
3. we ship your items on time after you place orders.
after delivery:
1. if your are satisfied with the package as you received, pls be kind to leave us positive feedback, as every positive feedback from you is important to increase our credit score. we will be grateful for your doing so.
2. if unfortunately, there are any problems with the packages, pls contact us, we will solve all dissatisfations after received the pictures. we will assure your happiness with our solutions.
MOQ & delivery
1. MOQ: 1 pc
2. delivery time: within 15-20 days after receive deposit
payment term:
1. accept L/C, T/T, western union,money gram
