Specifications
current transformerpassed ISO9001
rated secondary current: 5A
good quality and best price

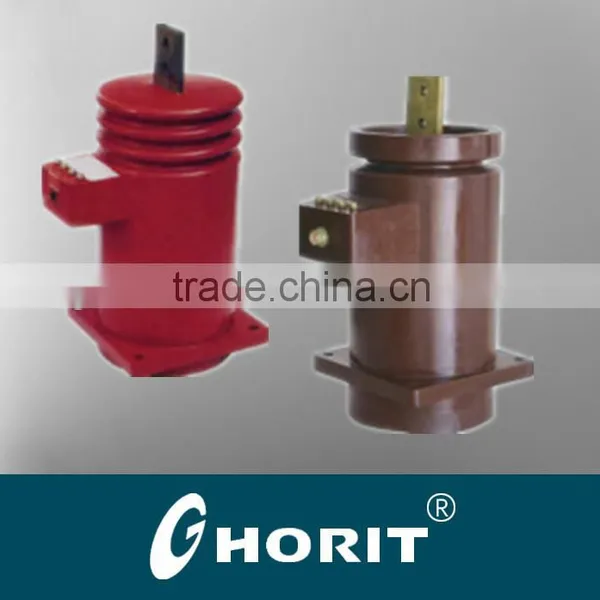

LDJ(1,5,6)-10 current transformer
description
The product is a new type for handcart switch board. It`s designed for electrical measurement and protection in power system of 10 kV and frequency of 50Hz. lt is more suitable for KYN cart switch board. The necessary insulation ar contact box.
insulating bushing and post insulator.

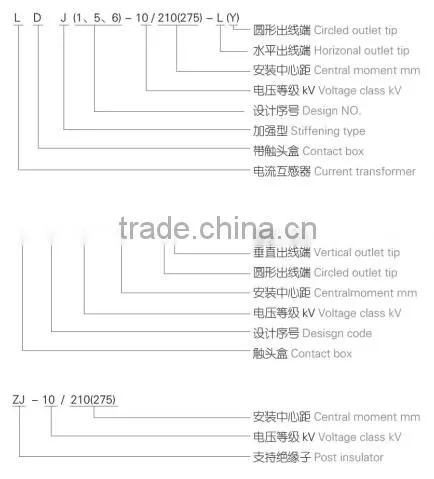

type description
construction
The product is made cast rsin insulated and totaIly enclosed The primary cutlet tips have several ways of going and on of themis put n cast resin insulated con-tact box(static contact).
Technical data
1. Performance conforms with IEC standard and GB120897 <CurrentTransformer>;
2. Rated insulation level;
3. The power factor of burden is 0.8(lagging);
4. Rated primary current Data in brackets are used for former products;
5. Rated secpmdary current;
6. Secondary combination of accuracy classes;
7. Accu racy classes and corresponding rated output,peak and thermal withstand current see table 1;
8. The ralationship curve between accuracy limlt factor of class 10P and secondary burden see figure.
9. The techniral data of contact box see bable 2.
| rated primary current (A) | accuracy class and corresponding output (VA) |
1 s thermal current(r.m.s) (KA) | dynamic current (peak) (A) | |||
| 0.2 | 0.5 | 1 | 10P10 | |||
| 5-40 |
5 10 |
10 | 10 | 10 | 100 l 1n | 2.5 l 1n |
| 50-160(150) | 150 l 1n | 100 | ||||
| 200-400 | 60,80 | |||||
| 500-800 | 15 | 15 | 15 | 20 | ||
| 100-3150(3000) | 20 | 20 | 20 | 25 | 80 | 130 |
| rated primary current (A) | lth/1s (r.m.s) (KA) | ldyn (peak) (KA) |
| 630 and below | 63 | 100 |
| 800-1250 | 80 | 130 |
| 1600-3150 | 80 | 130 |

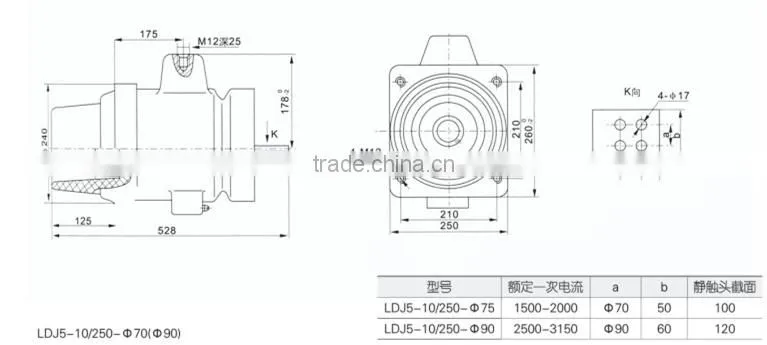

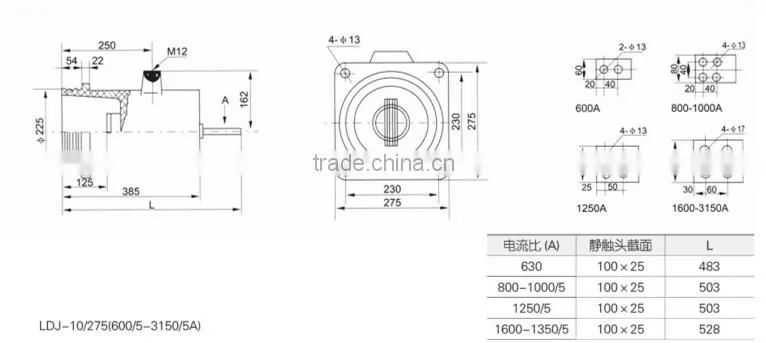

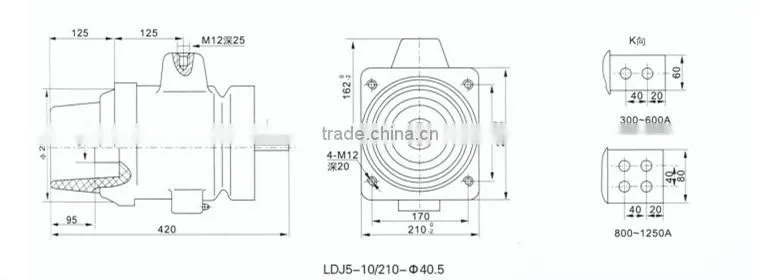

Overall dimension
