Help CenterLMZ(J)1-0.5 Current Transformer
Related Products
-
JD(X)6-35 Voltage TransformerUS$ 1 - 20MOQ: 1 Piece -
Current Transformer for Signal LZK-10WUS$ 1 - 20MOQ: 1 Piece
-
LMZK Current Transformer PriceUS$ 1 - 20MOQ: 1 Piece
-
LZZBJ9-10(A,B,C) 10kv Indoor Current Transformer From YueqingUS$ 1 - 1,500MOQ: 1 Piece
-
LZZBJ9-12/150b/2s(4s) Single Phase Current TransformerUS$ 1 - 1,500MOQ: 1 Piece
Specifications
current transformerpassed ISO9001
fully enclosed structure
good quality and best price
Rated secondary current: 5A

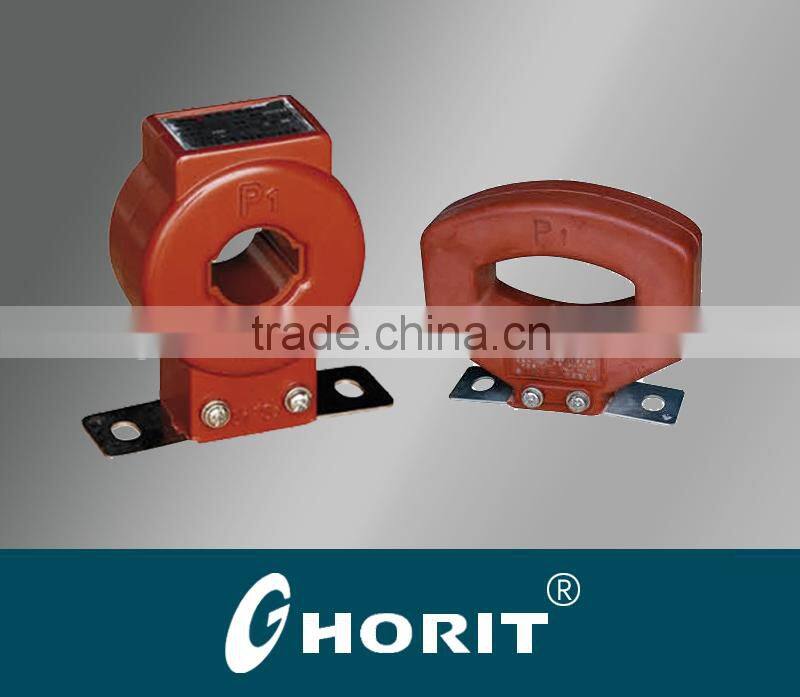

LMZ(J)1-0.5 Current Transformer
Description
the current transformer is used for measuring electric energy and current, relay protection in the electric system up to rated frequency 50hz or 60hz and rated voltage 0.5kv.

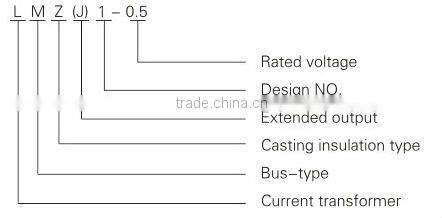

Type Description
Technical Data
| type | rated current ratio(A) | rated secondary output | cross-core turn number | ||
| 0.5 | 0.5s | 0.2s |
|||
| LMZ(J)1-0.5/30 | 150/5 | 5 | 5 | 5 | 1 |
| 200/5 | 5 | 5 | 5 | 1 | |
| 250/5 | 5 | 5 | 5 | 1 | |
| 300/5 | 5 | 5 | 5 | 1 | |
| LMZ(J)1-0.5/50 | 400/5 | 5 | 5 | 5 | 1 |
| 500/5 | 5 | 5 | 5 | 1 | |
| 600/5 | 5 | 5 | 5 | 1 | |
| LMZ(J)1-0.5/80 | 800/5 | 10 | 10 | 10 | 1 |
| 1000/5 | 10 | 10 | 10 | 1 | |
| LMZ(J)1-0.5/100 | 1200/5 | 10 | 10 | 10 | 1 |
| 1500/5 | 10 | 10 | 10 | 1 | |
| LMZ(J)1-0.5/140 | 2000/5 | 20 | 15 | 15 | 1 |
| 2500/5 | 20 | 20 | 20 | 1 | |
| 3000/5 | 20 | 20 | 20 | 1 | |
| 4000/5 | 20 | 20 | 20 | 1 | |
| LMZ(J)1-0.5/200 | 5000/5 | 30 | 20 | 20 | 1 |
| 8000/5 | 30 | 20 | 20 | 1 | |
| 10000/5 | 30 | 20 | 20 | 1 | |
| LMZ(J)1-0.66/100 | 750/5 | 10 | 10 | 10 | 1 |
| 800/5 | 10 | 10 | 10 | 1 | |
| 1000/5 | 10 | 10 | 10 | 1 | |
| 1200/5 | 10 | 10 | 10 | 1 | |
| 1500/5 | 10 | 10 | 10 | 1 | |
| 2000/5 | 20 | 20 | 20 | 1 | |
| LMZ(J)1-0.66/130 | 1500/5 | 10 | 10 | 10 | 1 |
| 2000/5 | 20 | 20 | 20 | 1 | |
| 2500/5 | 20 | 20 | 20 | 1 | |
| 3000/5 | 20 | 20 | 20 | 1 | |
| LMZ(J)1-0.66/170 | 3000/5 | 20 | 20 | 20 | 1 |
| 4000/5 | 40 | 40 | 40 | 1 | |
| 5000/5 | 40 | 40 | 40 | 1 | |
| 6000/5 | 40 | 40 | 40 | 1 | |

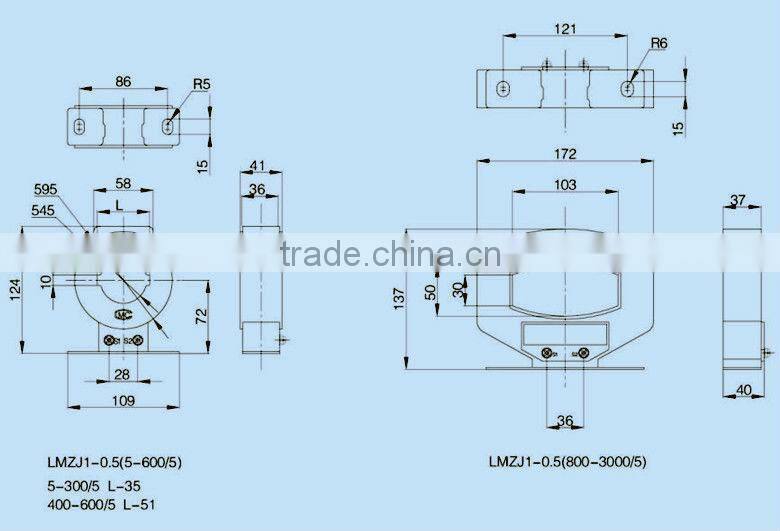

Overall Dimension
When ordering, please specify the following
1. insulation level
2. current ratio
3. accurate level and rated secondary load
4. use environment
Ghorit Electric Equipment Co., Ltd. Zhejiang is located in Xinguang Industrial Zone, Yueqing, Zhejiang Province, China, enjoys convenient transportation.
Ghorit covers 26,000 m² including a construction area of 12,000 m², integrates R&D, manufacture, sale and service, also has built a new production base in Shanghai.
Ghorit mainly produces and sells high-voltage electrical components and related equipments.
Ghorit has passed ISO9001. Ghorit adhere to the tenet of " survival based on high-quality products". With strong technical force, advanced production technology, perfect detection means and super product quality, Ghorit keeps on expanding the markets and has won a high reputation among the customers.
trade term:
1. payment :T/T or L/C
2. sample lead time:1-3days
3. production lead time:for 100-500pcs, 1-7days; for 500-1000pcs, 3-14days
4. shipping freight are delivered under your requests
5. shipping port: ningbo/ shanghai, mainland china
6. discounts are offered based on order quantites
7. minimum quantity: 100-200pcs (accept sample: 1-10pcs)
8. logo: according to your requirements
9. packing: 1 pc/ box or accoding to the products
10. shipping: by express (EMS, DHL. UPS, ARAMEX), by air, by sea or by train
packing:
wrapped with poly bags, put on foam, then packed with carton box, outside fixed with veneer box.
or do as your requirements
1. your inquiry related to our products or prices will be replied in 24 hours.
2. well-trained and experienced staffs answer all your questions in fluent English
3. OEM & ODM, any you customized we can help to design and put into products
4. distributoershio are offered for your unique design and some of our current model
5. protection of your sale areas, ideas of design and all your private information
buy recommendation:
1. our all items are 100% authentic; pls provide all details of the address before purchase, so we can calculate the shipping deicounts and the best transportation.
2. according to your requirements, differents specifications of the items can be mixed shipments and lower freight.
3. only wholesale, if require samples or have any questions or suggestions, pls feel free to contact us.
quality & price:
1. we sell items with top quality because we want to keep every customer as our long-term business partner.
2. we set competitive price because we need to attact buyers to this new store.
3. we ship your items on time after you place orders.
after delivery:
1. if your are satisfied with the package as you received, pls be kind to leave us positive feedback, as every positive feedback from you is important to increase our credit score. we will be grateful for your doing so.
2. if unfortunately, there are any problems with the packages, pls contact us, we will solve all dissatisfations after received the pictures. we will assure your happiness with our solutions.
MOQ & delivery
1. MOQ: 1 pc
2. delivery time: within 15-20 days after receive deposit
payment term:
1. accept L/C, T/T, western union,money gram
