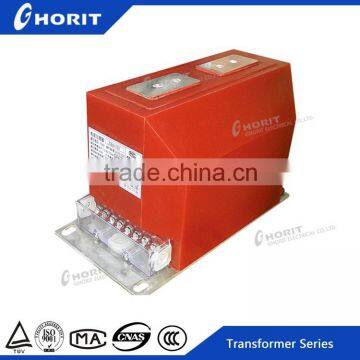

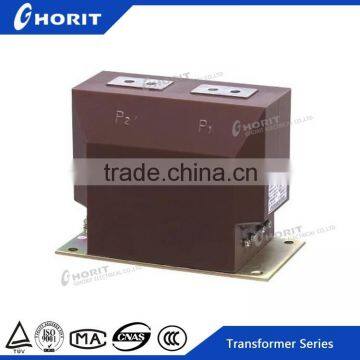

LZZBJ9-10(A,B,C) indoor current transformer
Description
Current Transformer LZZBJ9-10 is made indoor cast-resin insulated, totally-enclosed structure. It's designed for current, power measurement and relay protection in AC power system with rated frequency 50Hz, rated voltage I0kV.

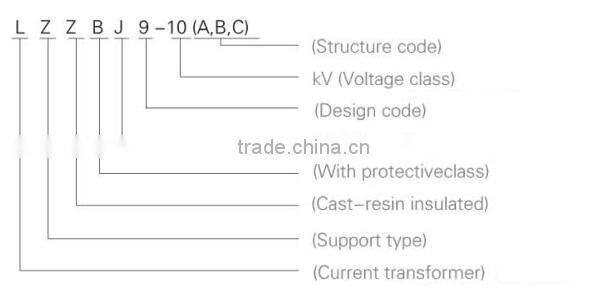

Type description
Service Condition
1. Altitude: Not over 1000m;
2. Ambient temperature: -5oC to +40oC;
3. Relative humidity: less than 90%, at 20oC;
4. No gas, steam, chemical deposition, pollution, explosive gas or etching gas which way badly influnce the insulation of the transformer;
5. No chattering of bumping.

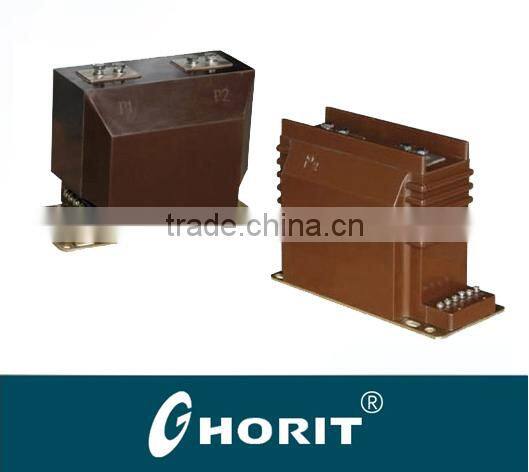

Construction
The product has a leg type,totally-encloed structure and its ring core, primary winding and secondary windiong and secondary winding are castedresin insulated.Resinsforced insulation makes it workable under humidity condensation and pollution ||.There wiring ways are for your chose (A,B,C).
The outlet makes of the product:primary P1,P2,secondary group on 1S1,1S2,group two 2S1,2S2.
As the primary current flow from P1 to P2,the secondary current form S1 to S2 though outside return circuit.High voltage appears if secondary return circuit opens while primary current is flowing by.

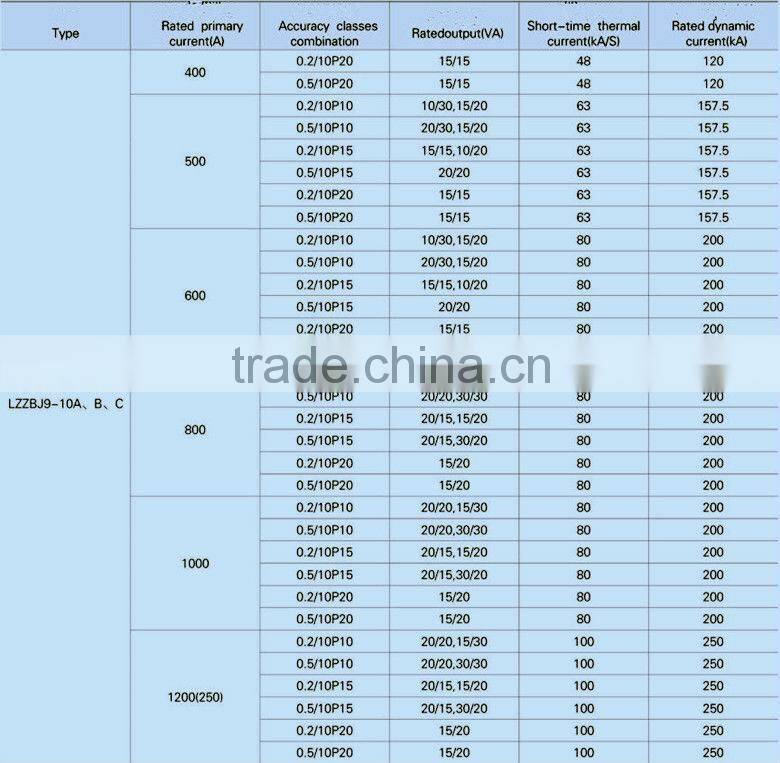

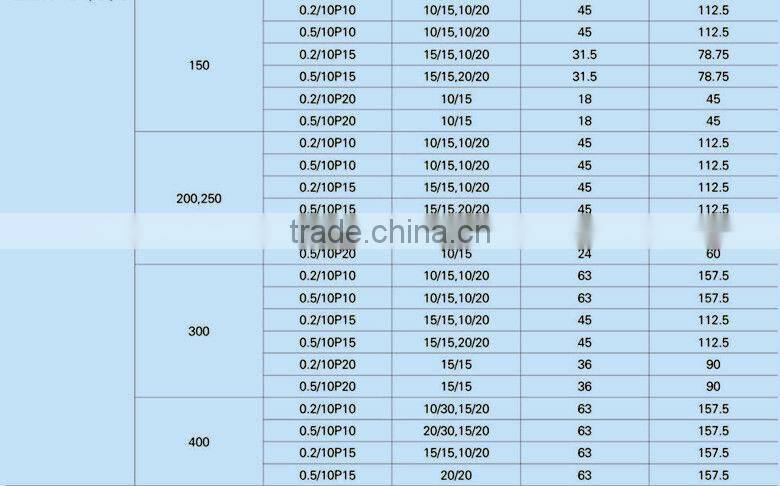

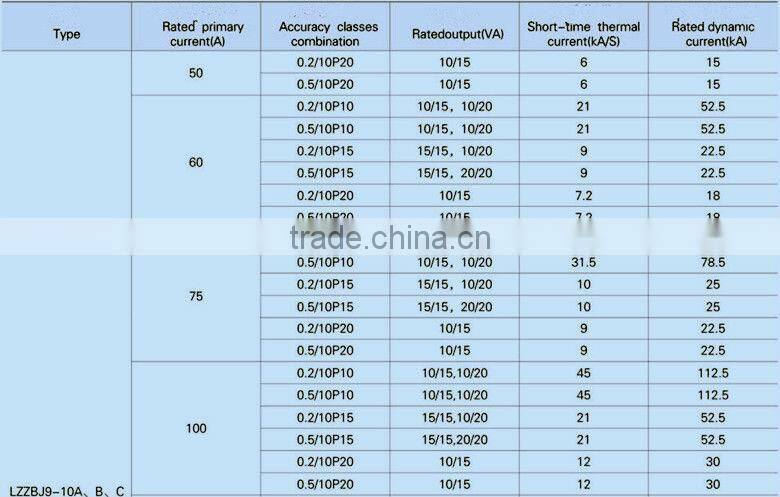

Technical data
note: the above technical parameter, rated secondary current is 5A, if need 1A or other data please contact us when ordering.
When ordering, please specify the following
1. insulation level
2. current ratio
3. accurate level and rated secondary load
4. use environment

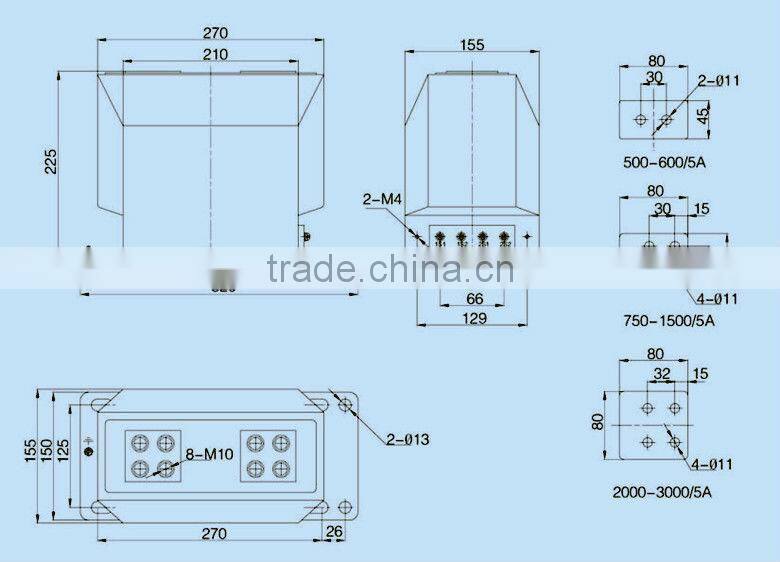

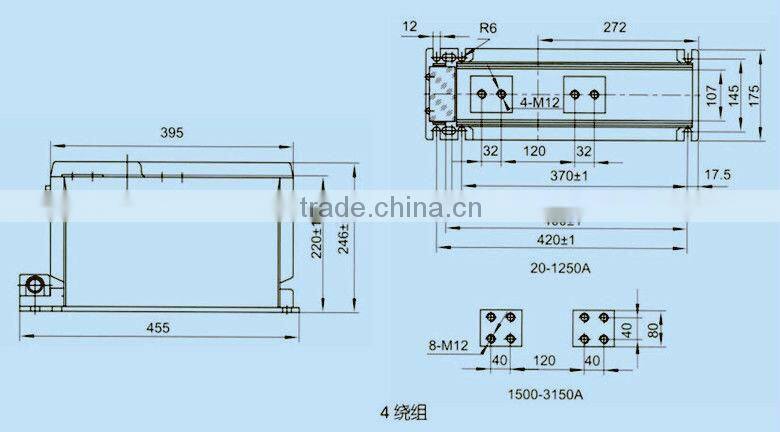

Overall dimensions
Ghorit Electric Equipment Co., Ltd. Zhejiang is located in Xinguang Industrial Zone, Yueqing, Zhejiang Province, China, enjoys convenient transportation.
Ghorit covers 26,000 m² including a construction area of 12,000 m², integrates R&D, manufacture, sale and service, also has built a new production base in Shanghai.
Ghorit mainly produces and sells high-voltage electrical components and related equipments.
Ghorit has passed ISO9001. Ghorit adhere to the tenet of " survival based on high-quality products". With strong technical force, advanced production technology, perfect detection means and super product quality, Ghorit keeps on expanding the markets and has won a high reputation among the customers.
trade term:
1. payment :T/T or L/C
2. sample lead time:1-3days
3. production lead time:for 100-500pcs, 1-7days; for 500-1000pcs, 3-14days
4. shipping freight are delivered under your requests
5. shipping port: ningbo/ shanghai, mainland china
6. discounts are offered based on order quantites
7. minimum quantity: 100-200pcs (accept sample: 1-10pcs)
8. logo: according to your requirements
9. packing: 1 pc/ box or accoding to the products
10. shipping: by express (EMS, DHL. UPS, ARAMEX), by air, by sea or by train
packing:
wrapped with poly bags, put on foam, then packed with carton box, outside fixed with veneer box.
or do as your requirements
1. your inquiry related to our products or prices will be replied in 24 hours.
2. well-trained and experienced staffs answer all your questions in fluent English
3. OEM & ODM, any you customized we can help to design and put into products
4. distributoershio are offered for your unique design and some of our current model
5. protection of your sale areas, ideas of design and all your private information
buy recommendation:
1. our all items are 100% authentic; pls provide all details of the address before purchase, so we can calculate the shipping deicounts and the best transportation.
2. according to your requirements, differents specifications of the items can be mixed shipments and lower freight.
3. only wholesale, if require samples or have any questions or suggestions, pls feel free to contact us.
quality & price:
1. we sell items with top quality because we want to keep every customer as our long-term business partner.
2. we set competitive price because we need to attact buyers to this new store.
3. we ship your items on time after you place orders.
after delivery:
1. if your are satisfied with the package as you received, pls be kind to leave us positive feedback, as every positive feedback from you is important to increase our credit score. we will be grateful for your doing so.
2. if unfortunately, there are any problems with the packages, pls contact us, we will solve all dissatisfations after received the pictures. we will assure your happiness with our solutions.
MOQ & delivery
1. MOQ: 1 pc
2. delivery time: within 15-20 days after receive deposit
payment term:
1. accept L/C, T/T, western union,money gram
