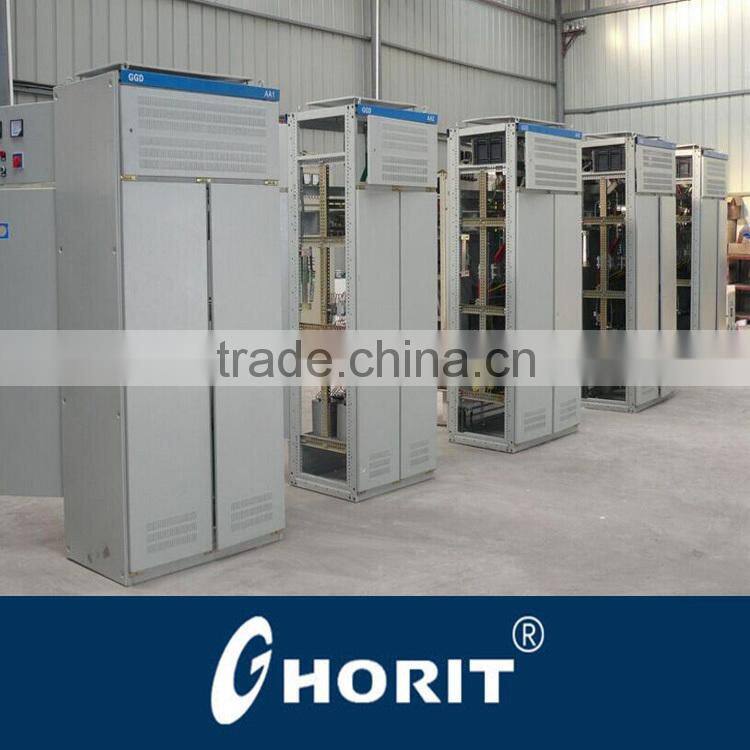

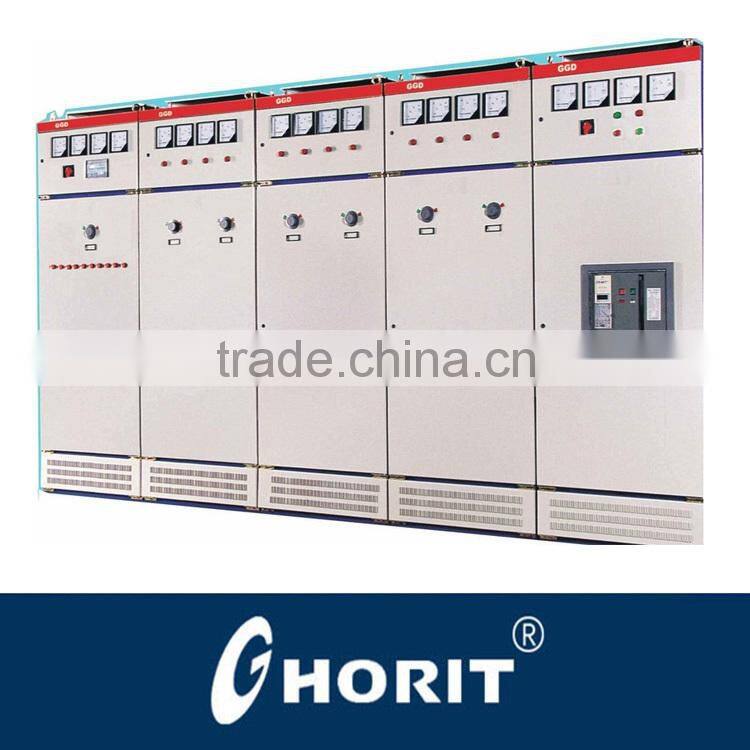

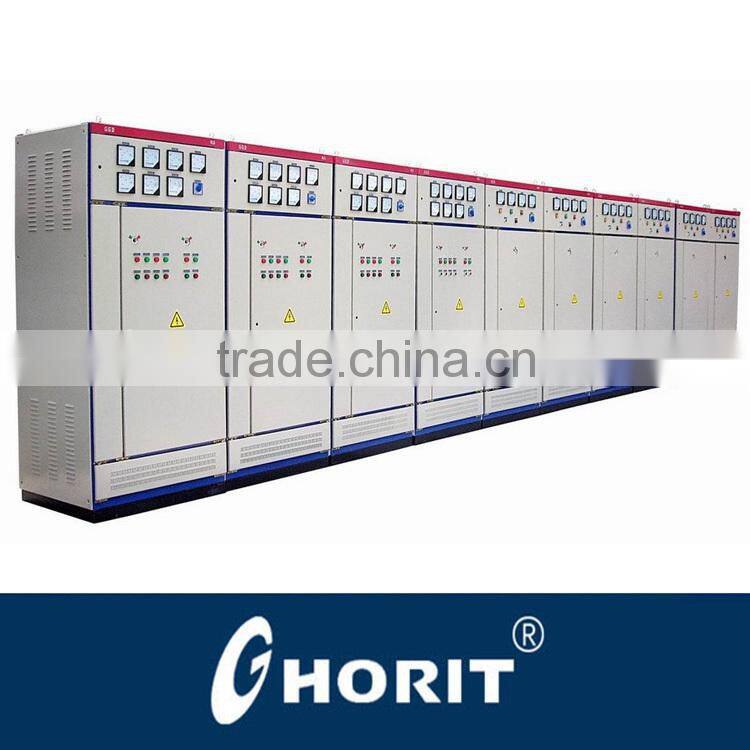

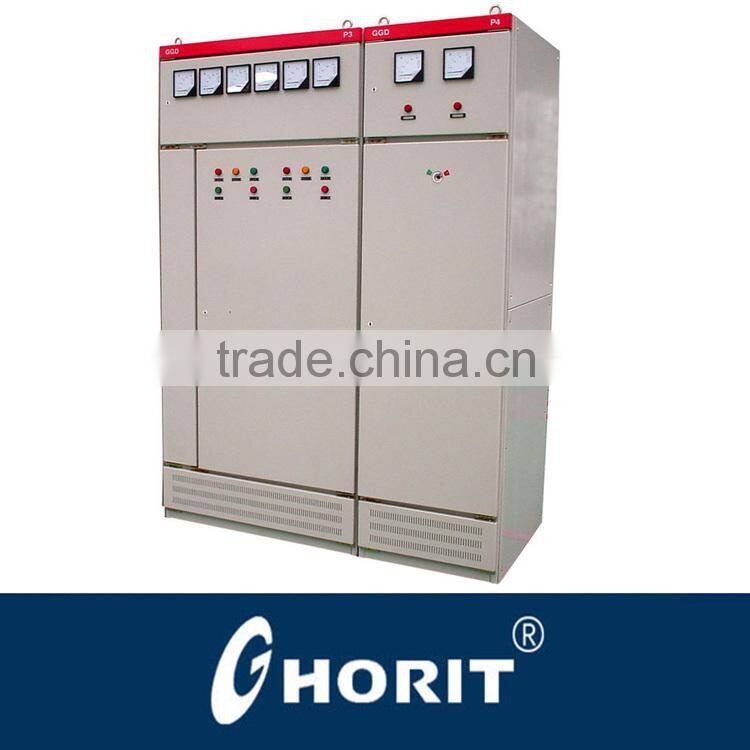

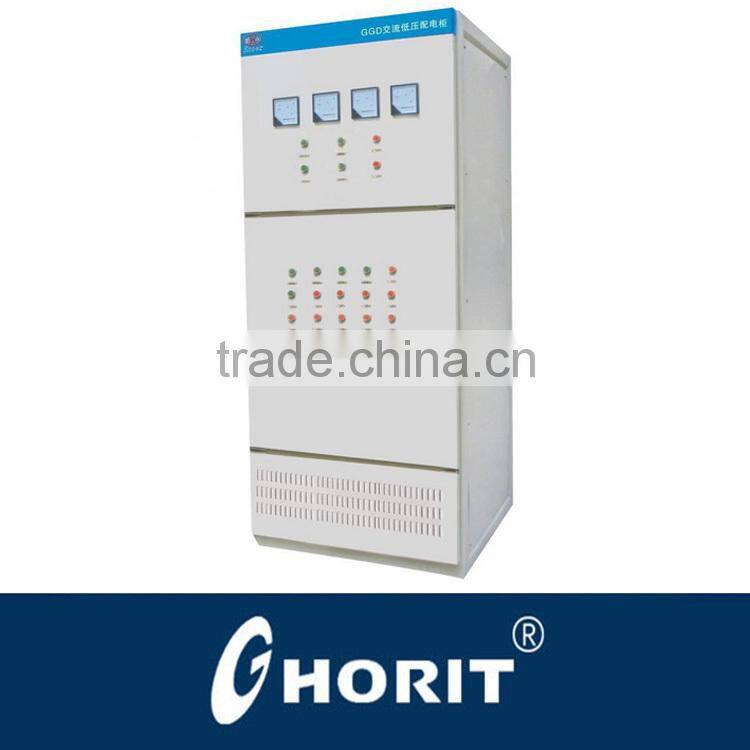

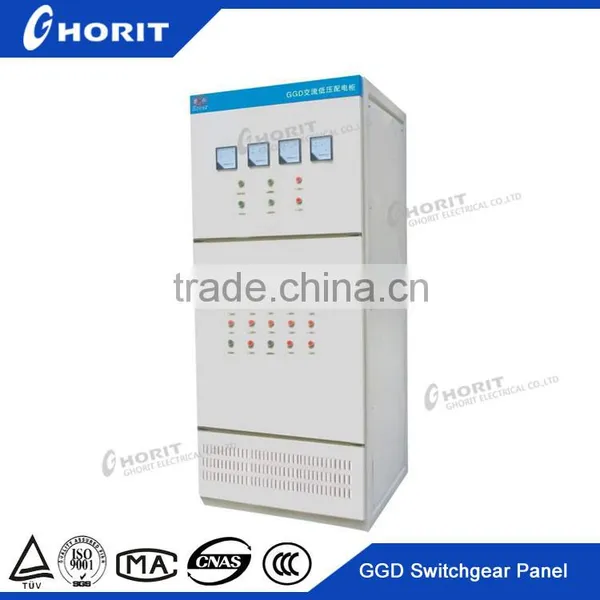

Help CenterGGD A.C.Electrical Distribution Panel Board, Low Voltage Circuit Breaker Panel
Related Products
-
Power Distribution Cabinet GGD With Custom Mccb & RccbUS$ 1,000 - 2,000MOQ: 1 Set -
MNS Indoor Low Voltage Switchgear,power Supply EnclosureUS$ 2,000 - 6,000MOQ: 1 Set
-
GCS Low-voltage Drawout Electrical Switchgear Enclosure PanelUS$ 2,000 - 6,000MOQ: 1 Set
-
12 KV XGN Indoor Distribution Control Panel Enclosure PanelUS$ 2,000 - 6,000MOQ: 1 Set
-
12 KV XGN Indoor AC Metal Enclosed Electrical SwitchboardUS$ 2,000 - 6,000MOQ: 1 Set
GGD series A.C. low voltage switchgear is suitable to power plants, substations, and industrial enterprises as, energy conversion, distribution and control of power, illumination and distribution equipments for the distribution system which frequency is 50HZ, rated voltage is 380V and rated current is up to 3150A.
Operating environment:
1)Ambient temperature:-10°C-+40°C;
2)Altitude: high voltage ≤1000Meter, low voltage ≤2000Meter (technical department will design specially if exceeds);
3)Relative humidity:≤85%
4)Seismic intensity:≤ magnitude 8;
5)Apply to the places have no fire,no explosion danger, no serious pollution,no chemical corrosion and no violent vibrationExecutive standard:
GB7251 Low voltage complete set switchgear and control device
Technical parameter:
0.4KV low voltage switchgear technical parameter:
|
|
Parameter |
||
Rated voltage |
V |
400 |
690 |
|
Rated insulation voltage |
V |
690 |
1140 |
|
Rated impact withstand voltage |
V |
6000 |
10000 |
|
Rated working short circuit breaking ability |
kA |
18~100 |
10~75 |
|
Rated utmost short circuit breaking ability |
kA |
25~120 |
20~85 |
|
Rated frequency |
Hz |
50/60 |
||
Rated current |
A |
400,500,630,800,1000,1250,1600,2000,2500,3150,4000,5000,6300 |
||
Rated control power |
V |
AC 110/220/380,DC 110/220 |
||
|
Dimension (Unit:mm) |
MNS/GCS/GGD |
width |
400,600,800,1000,1200 |
|
depth |
600,800,1000 |
|||
height |
2200 |
|||
Ordering notice:
Please provide system capacity, system voltage, electric scheme, function requirement, configuration requirement when you decide to order.
