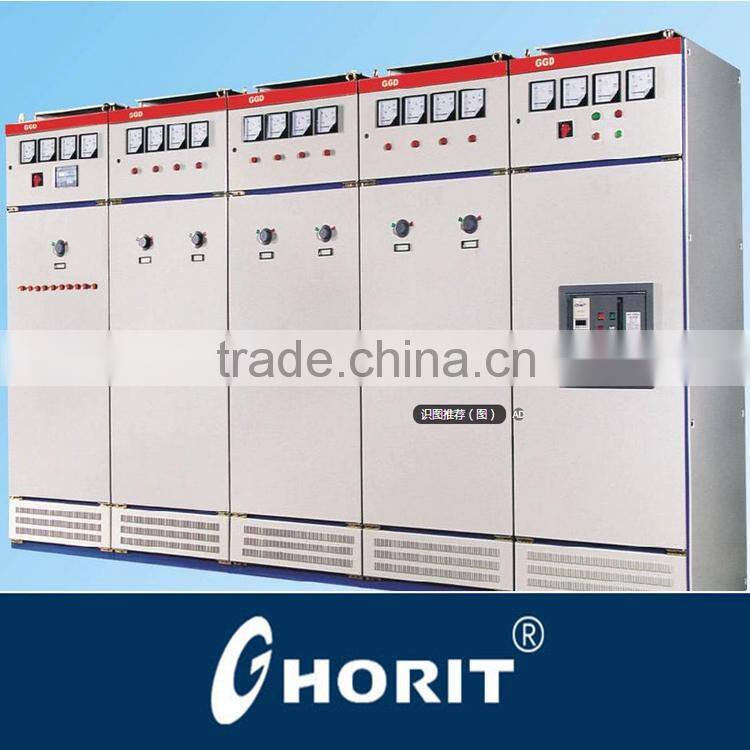

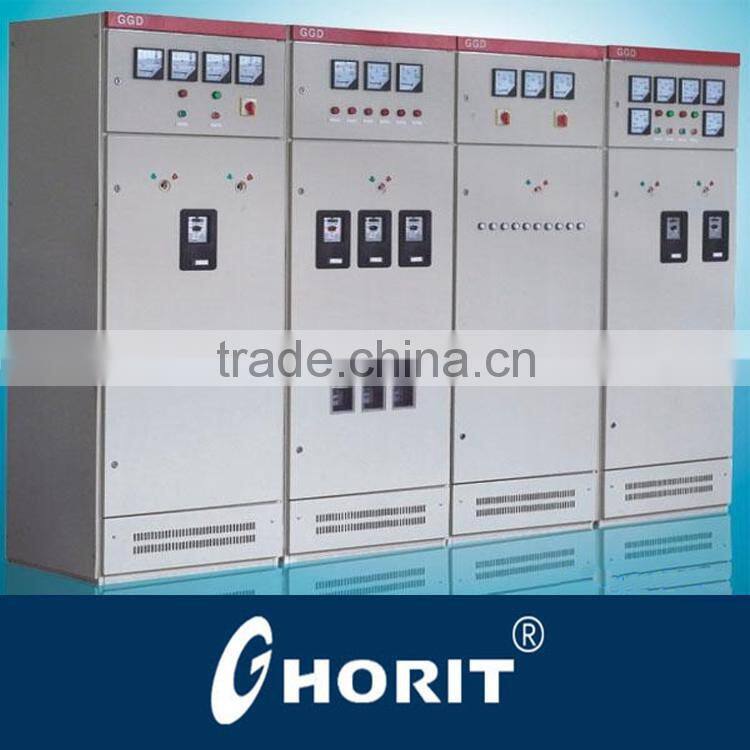

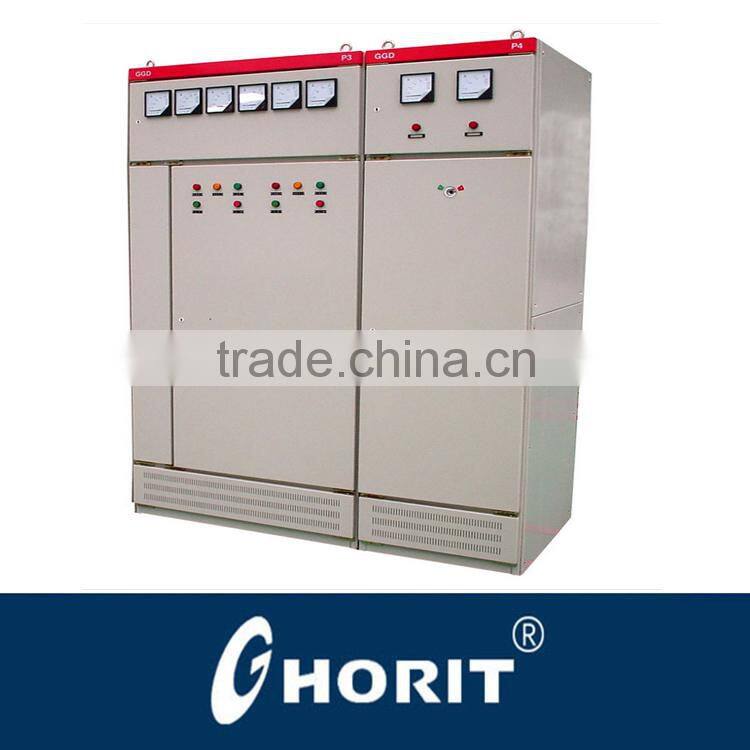

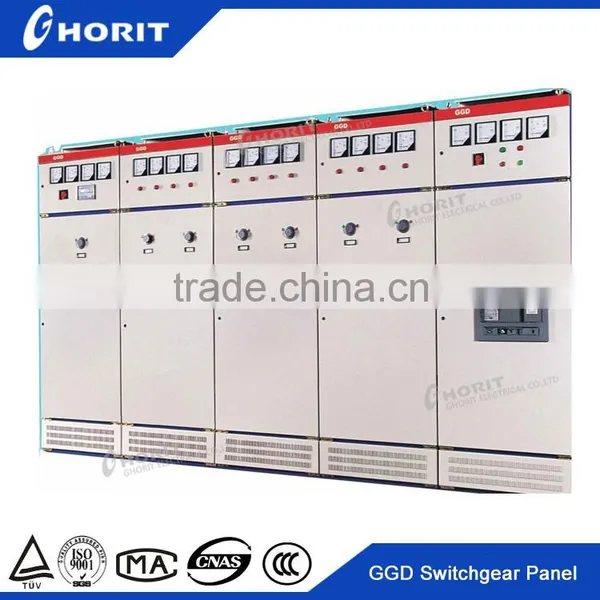

The GGD AC low-volt distribution cabinet is applied to certain distribution system of AC 50HZ,
rated work volt 380V, rated work current being 3150A or lower in power plant, transformer substation, mining enterprise etc, this product is mainly used for power transforming, distributing and controlling of power equipment, lighting and distribution equipment.
The GGD AC lowvolt distribution cabinet is one new low-volt distribution cabinet elaborately designed in the light
of safety, economical, reasonable and reliable principle for meeting the higher demand of energy-source ministr
y and majority of electrical customers. This product owns many advantages as high breaking capacity, well dynamic, thermal stability, flexible electric plan, upgraded product for low-volt completes set switch equipment.
The GGD AC low-volt distribution cabinet conforms with techinique demand of IEC439 <low-volt complete
set switch equipment and control equipment> and GB7251.1 <low-volt complete set switch equipment> etc.
3. Working conditions:
3.1. Environmental temperature: - 15 C~ + 40C;
3.2. Altitude: ≤1000m
3.3. Relative humidity: Daily average ≤95%, the water vapor pressure on daily average≤ 2.2kpa;
Monthly average ≤90% , the water vapor pressure on monthly averages≤ 1.8kpa
3.4. Earthquake intensity: ≤ magnitude 8
3.5. Installation conditions: free of explosive and corrosive gas, no severe vibration and shock
